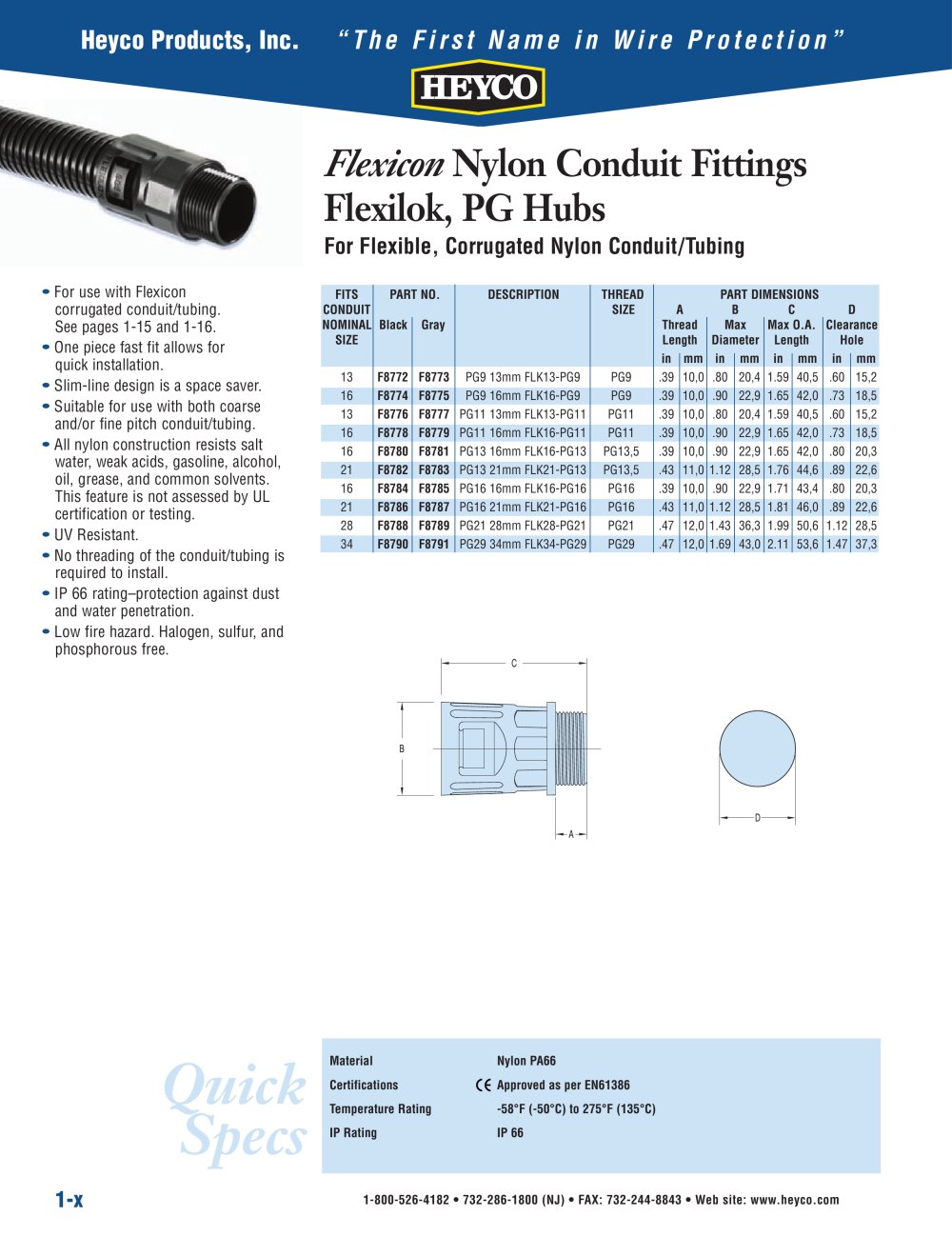

1-x Quick Specs 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” Flexicon Nylon Conduit Fittings Flexilok, PG Hubs For Flexible, Corrugated Nylon Conduit/Tubing • For use with Flexicon corrugated conduit/tubing. See pages 1-15 and 1-16. • One piece fast fit allows for quick installation. • Slim-line design is a space saver. • Suitable for use with both coarse and/or fine pitch conduit/tubing. • All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing. • UV Resistant. • No threading of the conduit/tubing is required to install. • IP 66 rating–protection against dust and water penetration. • Low fire hazard. Halogen, sulfur, and phosphorous free. FITS PART NO. DESCRIPTION THREAD PART DIMENSIONS CONDUIT SIZE A B C D NOMINAL Black Gray Thread Max Max O.A. Clearance SIZE Length Diameter Length Hole in mm in mm in mm in mm 13 F8772 F8773 PG9 13mm FLK13-PG9 PG9 .39 10,0 .80 20,4 1.59 40,5 .60 15,2 16 F8774 F8775 PG9 16mm FLK16-PG9 PG9 .39 10,0 .90 22,9 1.65 42,0 .73 18,5 13 F8776 F8777 PG11 13mm FLK13-PG11 PG11 .39 10,0 .80 20,4 1.59 40,5 .60 15,2 16 F8778 F8779 PG11 16mm FLK16-PG11 PG11 .39 10,0 .90 22,9 1.65 42,0 .73 18,5 16 F8780 F8781 PG13 16mm FLK16-PG13 PG13,5 .39 10,0 .90 22,9 1.65 42,0 .80 20,3 21 F8782 F8783 PG13 21mm FLK21-PG13 PG13,5 .43 11,0 1.12 28,5 1.76 44,6 .89 22,6 16 F8784 F8785 PG16 16mm FLK16-PG16 PG16 .39 10,0 .90 22,9 1.71 43,4 .80 20,3 21 F8786 F8787 PG16 21mm FLK21-PG16 PG16 .43 11,0 1.12 28,5 1.81 46,0 .89 22,6 28 F8788 F8789 PG21 28mm FLK28-PG21 PG21 .47 12,0 1.43 36,3 1.99 50,6 1.12 28,5 34 F8790 F8791 PG29 34mm FLK34-PG29 PG29 .47 12,0 1.69 43,0 2.11 53,6 1.47 37,3 Material Nylon PA66 Certifications Approved as per EN61386 Temperature Rating -58°F (-50°C) to 275°F (135°C) IP Rating IP 66
