Flexicon Nylon Conduit Fittings 90° Sweep, NPT Hub
1Pages

{{requestButtons}}

Catalog excerpts

Flexicon Nylon Conduit Fittings 90° Sweep, NPT Hub - 1

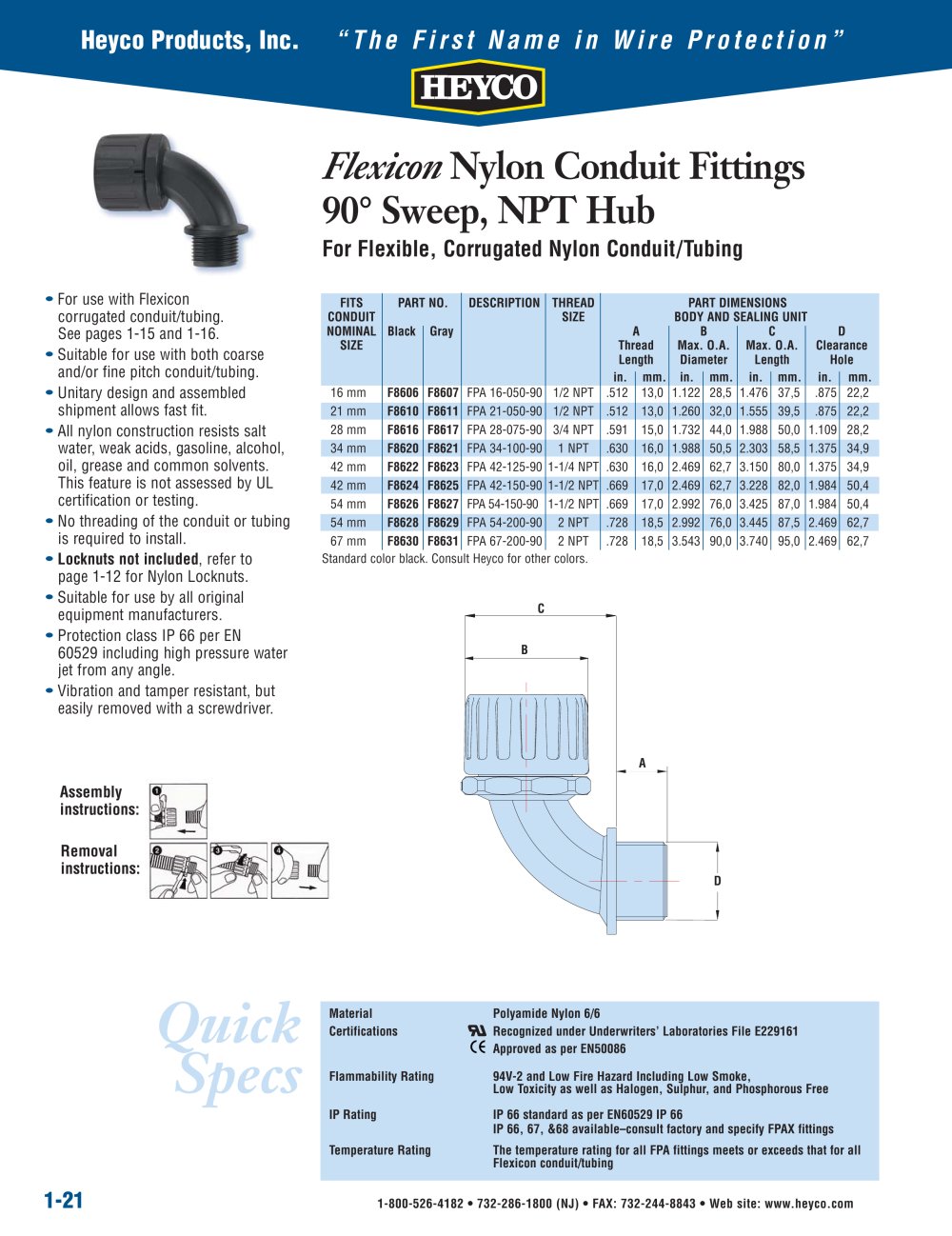

1-21 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” Quick Specs B C D A Material Polyamide Nylon 6/6 Certifications Recognized under Underwriters’ Laboratories File E229161 Approved as per EN50086 Flammability Rating 94V-2 and Low Fire Hazard Including Low Smoke, Low Toxicity as well as Halogen, Sulphur, and Phosphorous Free IP Rating IP 66 standard as per EN60529 IP 66 IP 66, 67, &68 available–consult factory and specify FPAX fittings Temperature Rating The temperature rating for all FPA fittings meets or exceeds that for all Flexicon conduit/tubing • For use with Flexicon corrugated conduit/tubing. See pages 1-15 and 1-16. • Suitable for use with both coarse and/or fine pitch conduit/tubing. • Unitary design and assembled shipment allows fast fit. • All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease and common solvents. This feature is not assessed by UL certification or testing. • No threading of the conduit or tubing is required to install. • Locknuts not included, refer to page 1-12 for Nylon Locknuts. • Suitable for use by all original equipment manufacturers. • Protection class IP 66 per EN 60529 including high pressure water jet from any angle. • Vibration and tamper resistant, but easily removed with a screwdriver. FITS PART NO. DESCRIPTION THREAD PART DIMENSIONS CONDUIT SIZE BODY AND SEALING UNIT NOMINAL Black Gray A B C D SIZE Thread Max. O.A. Max. O.A. Clearance Length Diameter Length Hole in. mm. in. mm. in. mm. in. mm. 16 mm F8606 F8607 FPA 16-050-90 1/2 NPT .512 13,0 1.122 28,5 1.476 37,5 .875 22,2 21 mm F8610 F8611 FPA 21-050-90 1/2 NPT .512 13,0 1.260 32,0 1.555 39,5 .875 22,2 28 mm F8616 F8617 FPA 28-075-90 3/4 NPT .591 15,0 1.732 44,0 1.988 50,0 1.109 28,2 34 mm F8620 F8621 FPA 34-100-90 1 NPT .630 16,0 1.988 50,5 2.303 58,5 1.375 34,9 42 mm F8622 F8623 FPA 42-125-90 1-1/4 NPT .630 16,0 2.469 62,7 3.150 80,0 1.375 34,9 42 mm F8624 F8625 FPA 42-150-90 1-1/2 NPT .669 17,0 2.469 62,7 3.228 82,0 1.984 50,4 54 mm F8626 F8627 FPA 54-150-90 1-1/2 NPT .669 17,0 2.992 76,0 3.425 87,0 1.984 50,4 54 mm F8628 F8629 FPA 54-200-90 2 NPT .728 18,5 2.992 76,0 3.445 87,5 2.469 62,7 67 mm F8630 F8631 FPA 67-200-90 2 NPT .728 18,5 3.543 90,0 3.740 95,0 2.469 62,7 Standard color black. Consult Heyco for other colors. Flexicon Nylon Conduit Fittings 90° Sweep, NPT Hub For Flexible, Corrugated Nylon Conduit/Tubing Assembly instructions: Removal instructions:
