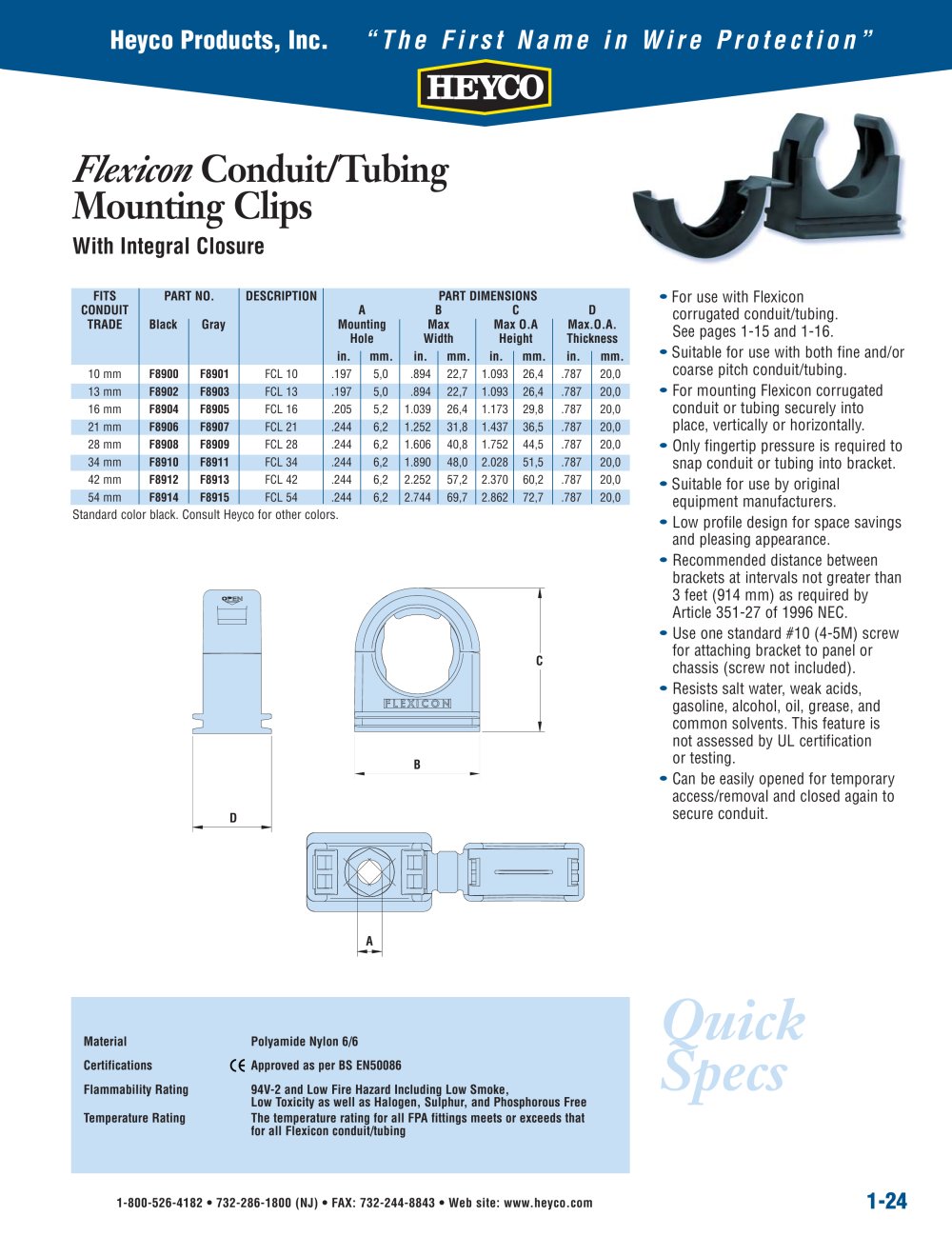

1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 1-24 Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” Flexicon Conduit/Tubing Mounting Clips With Integral Closure • For use with Flexicon corrugated conduit/tubing. See pages 1-15 and 1-16. • Suitable for use with both fine and/or coarse pitch conduit/tubing. • For mounting Flexicon corrugated conduit or tubing securely into place, vertically or horizontally. • Only fingertip pressure is required to snap conduit or tubing into bracket. • Suitable for use by original equipment manufacturers. • Low profile design for space savings and pleasing appearance. • Recommended distance between brackets at intervals not greater than 3 feet (914 mm) as required by Article 351-27 of 1996 NEC. • Use one standard #10 (4-5M) screw for attaching bracket to panel or chassis (screw not included). • Resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing. • Can be easily opened for temporary access/removal and closed again to secure conduit. Quick Specs FITS PART NO. DESCRIPTION PART DIMENSIONS CONDUIT A B C D TRADE Black Gray Mounting Max Max O.A Max.O.A. Hole Width Height Thickness in. mm. in. mm. in. mm. in. mm. 10 mm F8900 F8901 FCL 10 .197 5,0 .894 22,7 1.093 26,4 .787 20,0 13 mm F8902 F8903 FCL 13 .197 5,0 .894 22,7 1.093 26,4 .787 20,0 16 mm F8904 F8905 FCL 16 .205 5,2 1.039 26,4 1.173 29,8 .787 20,0 21 mm F8906 F8907 FCL 21 .244 6,2 1.252 31,8 1.437 36,5 .787 20,0 28 mm F8908 F8909 FCL 28 .244 6,2 1.606 40,8 1.752 44,5 .787 20,0 34 mm F8910 F8911 FCL 34 .244 6,2 1.890 48,0 2.028 51,5 .787 20,0 42 mm F8912 F8913 FCL 42 .244 6,2 2.252 57,2 2.370 60,2 .787 20,0 54 mm F8914 F8915 FCL 54 .244 6,2 2.744 69,7 2.862 72,7 .787 20,0 Standard color black. Consult Heyco for other colors. Material Polyamide Nylon 6/6 Certifications Approved as per BS EN50086 Flammability Rating 94V-2 and Low Fire Hazard Including Low Smoke, Low Toxicity as well as Halogen, Sulphur, and Phosphorous Free Temperature Rating The temperature rating for all FPA fittings meets or exceeds that for all Flexicon conduit/tubing B D A C
