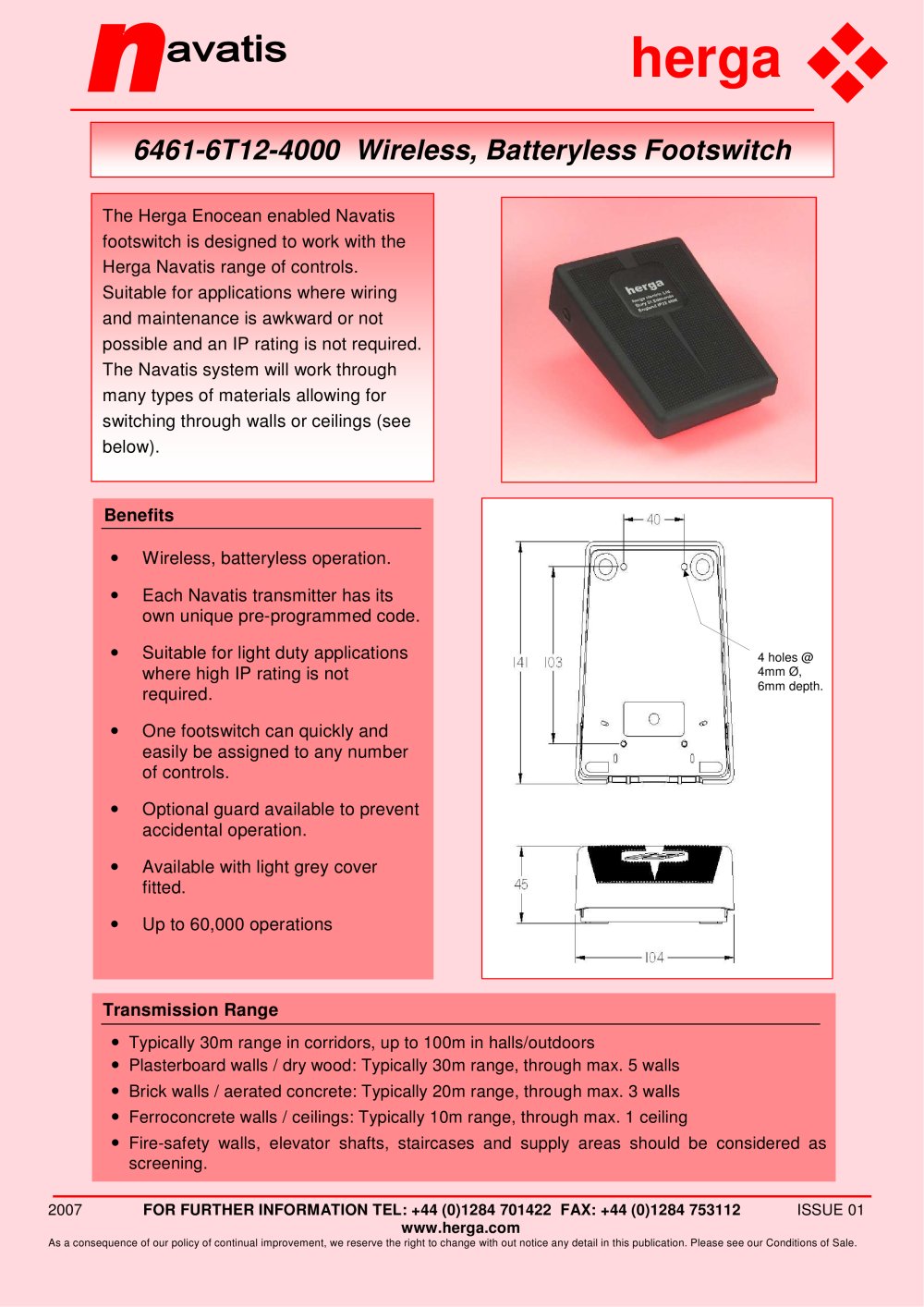

Navatis Footswitch - HERGA - #1

The Herga Enocean enabled Navatis footswitch is designed to work with the Herga Navatis range of controls. Suitable for applications where wiring and maintenance is awkward or not possible and an IP rating is not required. The Navatis system will work through many types of materials allowing for switching through walls or ceilings (see below).

Wireless, batteryless operation.

Each Navatis transmitter has its

own unique pre-programmed code.

Suitable for light duty applications where high IP rating is not

required.

One footswitch can quickly and easily be assigned to any number of controls.

Optional guard available to prevent accidental operation.

Available with light grey cover

fitted.

Up to 60,000 operations

• •

4 holes @ 4mm 0, 6mm depth.

a:

• Typically 30m range in corridors, up to 100m in halls/outdoors

• Plasterboard walls / dry wood: Typically 30m range, through max. 5 walls

• Brick walls / aerated concrete: Typically 20m range, through max. 3 walls

• Ferroconcrete walls / ceilings: Typically 10m range, through max. 1 ceiling

• Fire-safety walls, elevator shafts, staircases and supply areas should be considered as

screening.

2007 FOR FURTHER INFORMATION TEL: +44 (0)1284 701422 FAX: +44 (0)1284 753112 ISSUE 01

As a consequence of our policy of continual improvement, we reserve the right to change with out notice any detail in this publication. Please see our Conditions of Sale.
