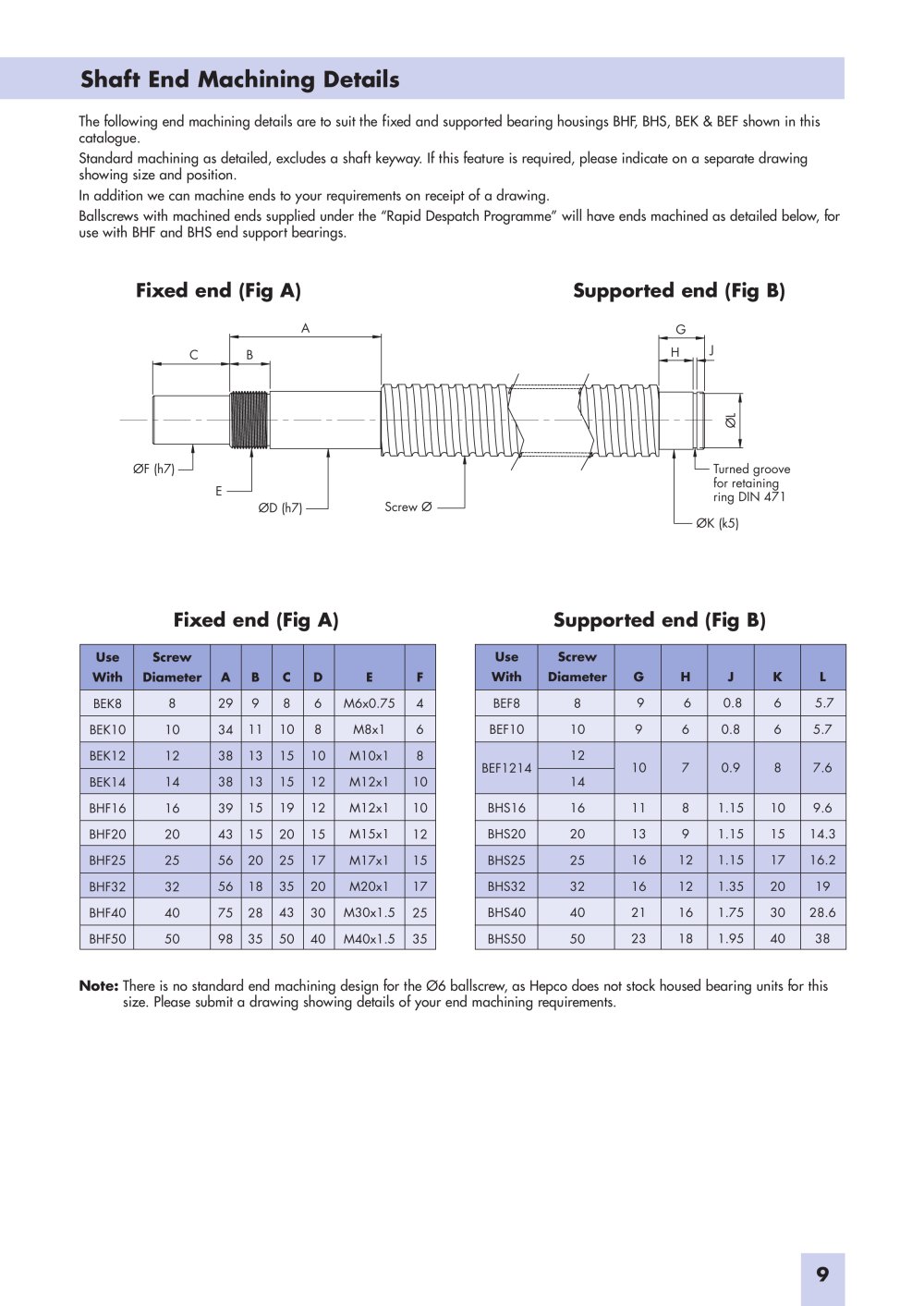

The following end machining details are to suit the fixed and supported bearing housings BHF, BHS, BEK & BEF shown in this catalogue.Standard machining as details excludes a shaft keyway. If this feature is required, please indicate on a separate drawing showing size and position.In addition we can machine ends to your requirements on receipt of a drawing.Ballscrews with machined ends supplied under the “Rapid Despatch Programme” will have ends machined as detailed below, foruse with BHF and BHS end support bearings. Fixed end (Fig A) Supported end (Fig B) Fixed end (Fig A) Supported end (Fig B) Note: There is no standard end machining design for the Ø6 ballscrew, as Hepco does not stock housed bearing units for this size. Please submit a drawing showing details of your end machining requirements. 9
|
