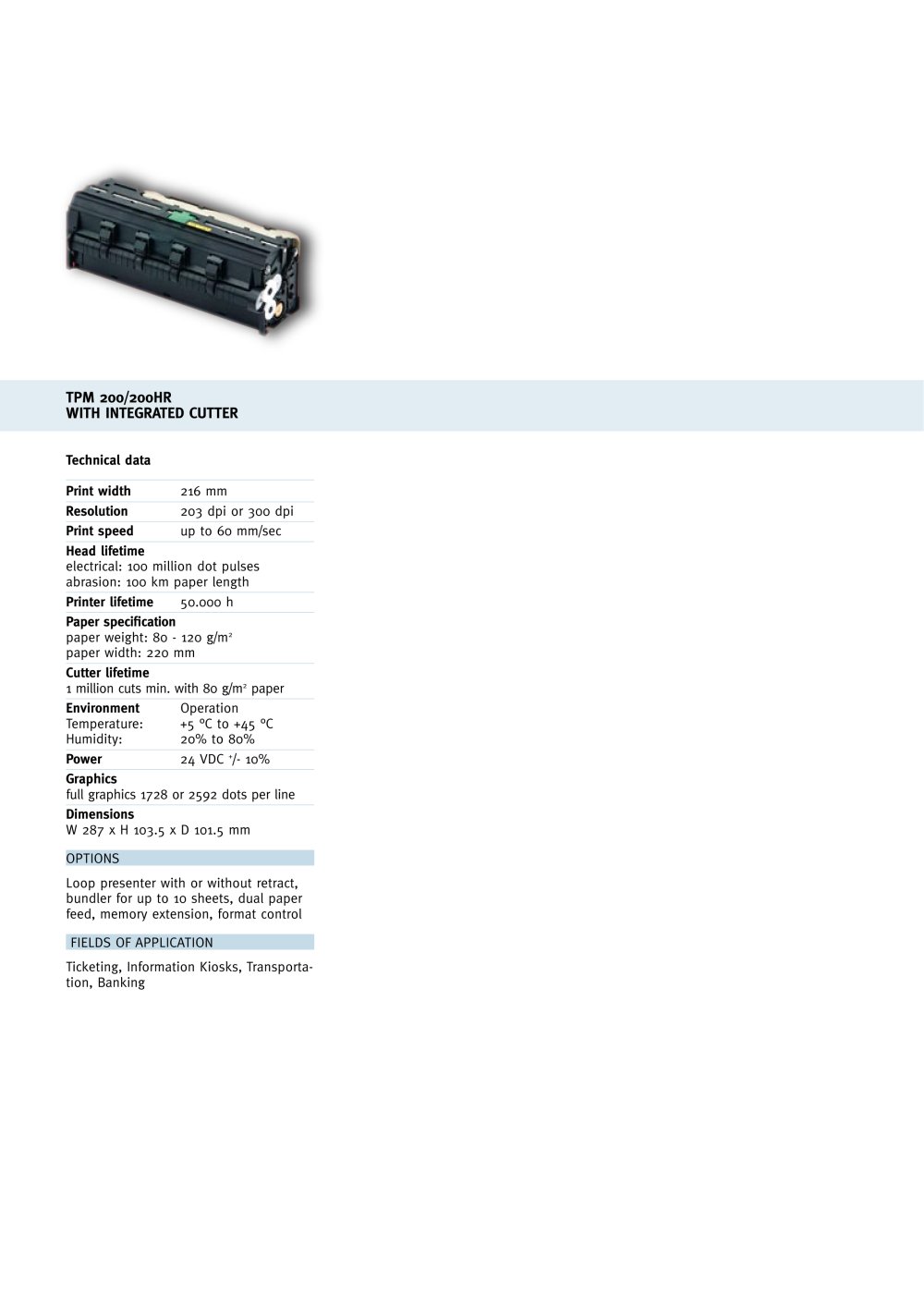

TPM 200/200HR

WITH INTEGRATED CUTTER

Technical data


	Print width	216 mm
	Resolution	203 dpi or 300 dpi
	Print speed	up to 60 mm/sec
	Head lifetime
	electrical: 100 million dot pulses
	abrasion: 100 km paper length
	Printer lifetime	50.000 h
	Paper specification
	paper weight: 80 - 120 g/m²
	paper width: 220 mm
	Cutter lifetime
	1 million cuts min. with 80 g/m² paper
	Environment	Operation
	Temperature:	+5 °C to +45 °C
	Humidity:	20% to 80%
	Power	24 VDC 7- 10%
	Graphics
	full graphics 1728 or 2592 dots per line
	Dimensions

W 287 x H 103.5 ^x D 101.5 mm OPTIONS

Loop presenter with or without retract, bundler for up to 10 sheets, dual paper feed, memory extension, format control

FIELDS OF APPLICATION

Ticketing, Information Kiosks, Transporta tion, Banking
