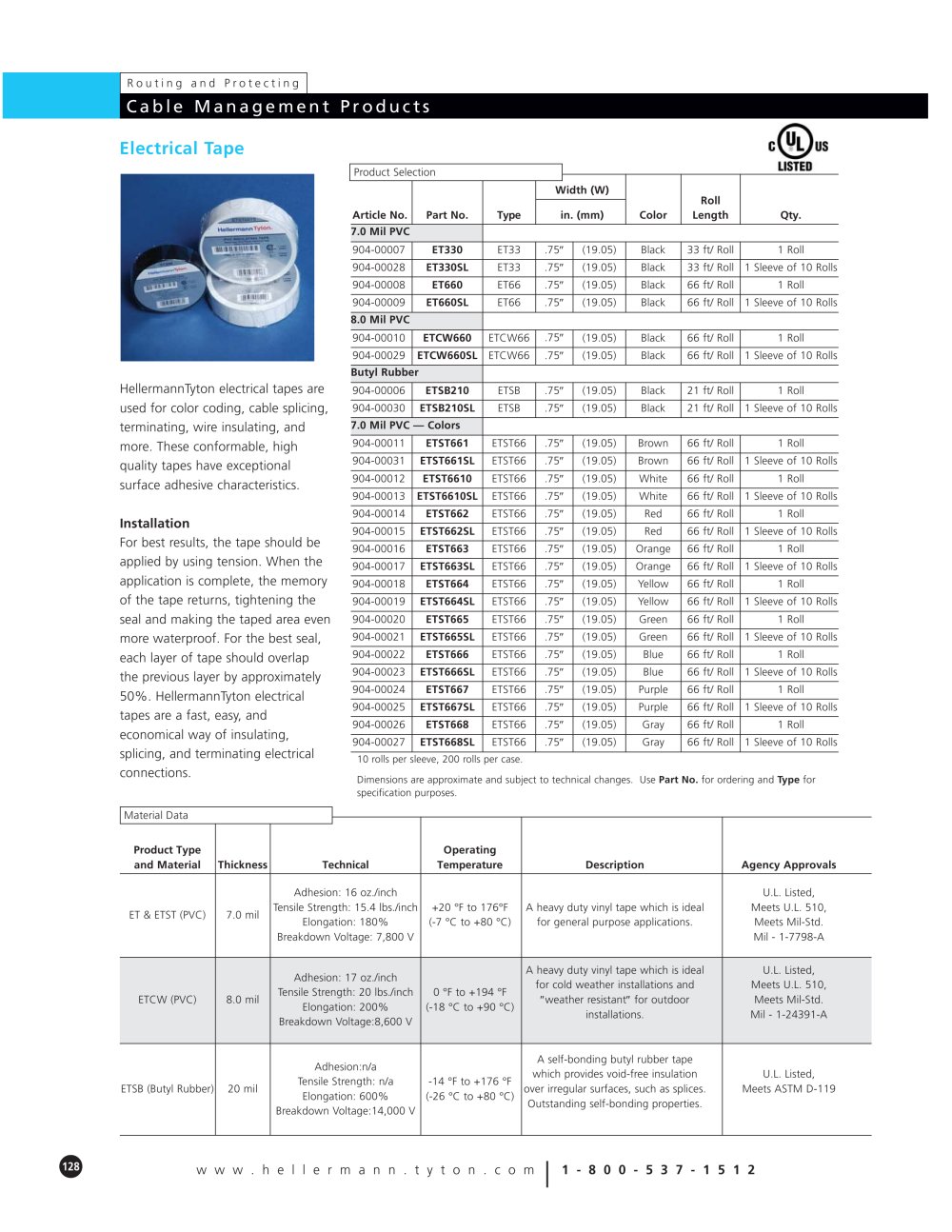

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | Routing and Protecting | | | | | | | | | | Cable Management Products | | | | | | | | | | Electrical Tape | | | | | | | | | | | | | | | | | | | | | | | Article No. | CLioi Part No. | Type | Width (W) | Color | Roll Length | Qty. | | | | in. (mm) | | | | 7.0 Mil PVC | | | | | 904-00007 | ET330 | ET33 | .75" | (19.05) | Black | 33 ft/ Roll | 1 Roll | | | | 904-00028 | ET330SL | ET33 | .75" | (19.05) | Black | 33 ft/ Roll | 1 Sleeve of 10 Rolls | | | | 904-00008 | ET660 | ET66 | .75" | (19.05) | Black | 66 ft/ Roll | 1 Roll | | | | 904-00009 | ET660SL | ET66 | .75" | (19.05) | Black | 66 ft/ Roll | 1 Sleeve of 10 Rolls | | | | 8.0 Mil PVC | | | | | 904-00010 | ETCW660 | ETCW66 | .75" | (19.05) | Black | 66 ft/ Roll | 1 Roll | | | | 904-00029 | ETCW660SL | ETCW66 | .75" | (19.05) | Black | 66 ft/ Roll | 1 Sleeve of 10 Rolls | | | | Butyl Rubber | | | | | 904-00006 | ETSB210 | ETSB | .75" | (19.05) | Black | 21 ft/ Roll | 1 Roll | | | | 904-00030 | ETSB210SL | ETSB | .75" | (19.05) | Black | 21 ft/ Roll | 1 Sleeve of 10 Rolls | | | | 7.0 Mil PVC — Colors | | | | | 904-00011 | ETST661 | ETST66 | .75" | (19.05) | Brown | 66 ft/ Roll | 1 Roll | | | | 904-00031 | ETST661SL | ETST66 | .75" | (19.05) | Brown | 66 ft/ Roll | 1 Sleeve of 10 Rolls | | | | 904-00012 | ETST6610 | ETST66 | .75" | (19.05) | White | 66 ft/ Roll | 1 Roll | | | | 904-00013 | ETST6610SL | ETST66 | .75" | (19.05) | White | 66 ft/ Roll | 1 Sleeve of 10 Rolls | | | | 904-00014 | ETST662 | ETST66 | .75" | (19.05) | Red | 66 ft/ Roll | 1 Roll | | | | 904-00015 | ETST662SL | ETST66 | .75" | (19.05) | Red | 66 ft/ Roll | 1 Sleeve of 10 Rolls | | | | 904-00016 | ETST663 | ETST66 | .75" | (19.05) | Orange | 66 ft/ Roll | 1 Roll | | | | 904-00017 | ETST663SL | ETST66 | .75" | (19.05) | Orange | 66 ft/ Roll | 1 Sleeve of 10 Rolls | | | | 904-00018 | ETST664 | ETST66 | .75" | (19.05) | Yellow | 66 ft/ Roll | 1 Roll | | | | 904-00019 | ETST664SL | ETST66 | .75" | (19.05) | Yellow | 66 ft/ Roll | 1 Sleeve of 10 Rolls | | | | 904-00020 | ETST665 | ETST66 | .75" | (19.05) | Green | 66 ft/ Roll | 1 Roll | | | | 904-00021 | ETST665SL | ETST66 | .75" | (19.05) | Green | 66 ft/ Roll | 1 Sleeve of 10 Rolls | | | | 904-00022 | ETST666 | ETST66 | .75" | (19.05) | Blue | 66 ft/ Roll | 1 Roll | | | | 904-00023 | ETST666SL | ETST66 | .75" | (19.05) | Blue | 66 ft/ Roll | 1 Sleeve of 10 Rolls | | | | 904-00024 | ETST667 | ETST66 | .75" | (19.05) | Purple | 66 ft/ Roll | 1 Roll | | | | 904-00025 | ETST667SL | ETST66 | .75" | (19.05) | Purple | 66 ft/ Roll | 1 Sleeve of 10 Rolls | | | | 904-00026 | ETST668 | ETST66 | .75" | (19.05) | Gray | 66 ft/ Roll | 1 Roll | | | | 904-00027 | ETST668SL | ETST66 | .75" | (19.05) | Gray | 66 ft/ Roll | 1 Sleeve of 10 Rolls | | | | | | | | | | | | | | | | | | | HellermannTyton electrical tapes are used for color coding, cable splicing, terminating, wire insulating, and more. These conformable, high quality tapes have exceptional surface adhesive characteristics. Installation For best results, the tape should be applied by using tension. When the application is complete, the memory of the tape returns, tightening the seal and making the taped area even more waterproof. For the best seal, each layer of tape should overlap the previous layer by approximately 50%. HellermannTyton electrical tapes are a fast, easy, and economical way of insulating, splicing, and terminating electrical connections. | | | | | | | | | | 10 rolls per sleeve, 200 rolls per case. Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes. | | | | | | | | | | | | | | | | | | | | | | | | | | iviaLenal Data Product Type and Material | Thickness | 1- Technical | Operating Temperature | Description | Agency Approvals | | | | ET & ETST (PVC) | 7.0 mil | Adhesion: 16 oz./inch Tensile Strength: 15.4 lbs./inch Elongation: 180% Breakdown Voltage: 7,800 V | +20 °F to 176°F (-7 °C to +80 °C) | A heavy duty vinyl tape which is ideal for general purpose applications. | U.L. Listed, Meets U.L. 510, Meets Mil-Std. Mil - 1-7798-A | | | | ETCW (PVC) | 8.0 mil | Adhesion: 17 oz./inch Tensile Strength: 20 lbs./inch Elongation: 200% Breakdown Voltage:8,600 V | 0 °F to +194 °F (-18 °C to +90 °C) | A heavy duty vinyl tape which is ideal for cold weather installations and "weather resistant" for outdoor installations. | | U.L. Listed, Meets U.L. 510, Meets Mil-Std. Mil - 1-24391-A | | | | ETSB (Butyl Rubber) | 20 mil | Adhesion:n/a Tensile Strength: n/a Elongation: 600% Breakdown Voltage:14,000 V | -14 °F to +176 °F (-26 °C to +80 °C) | A self-bonding butyl rubber tape which provides void-free insulation over irregular surfaces, such as splices. Outstanding self-bonding properties. | U.L. Listed, Meets ASTM D-119 | | | | | | | | | | | | | | | | | | | | | | w w w . h e l l e r m a n n . t y t o n . c o m | 1 - 8 0 0 - 5 3 7 - 1 5 1 2 | | | | | | 128 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
