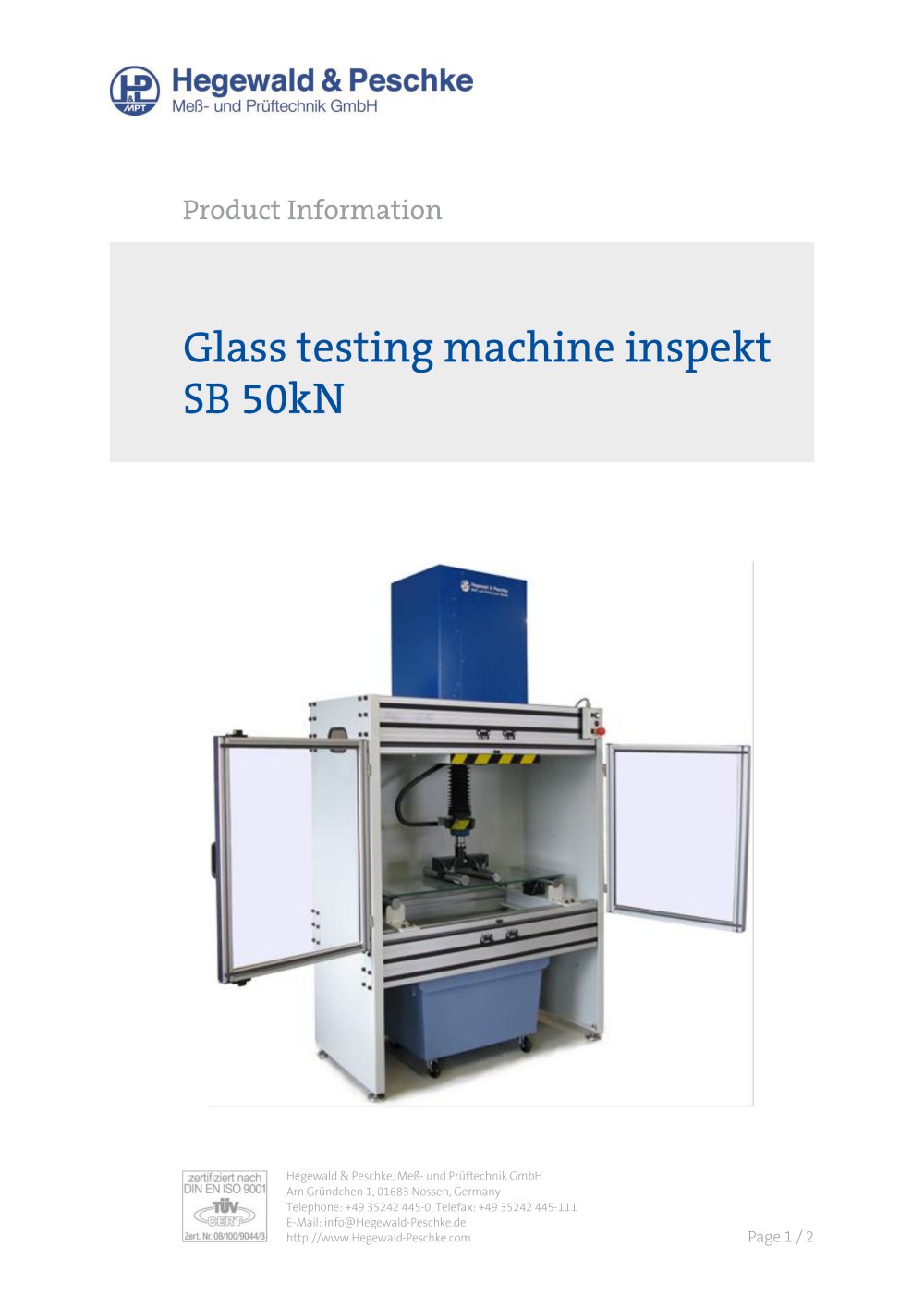

universal testing machine glass compression- / bending test Seite 1/2 glass testing machine inspekt S 50kN The Inspekt S 50 can carry out static puncture tests on glass according to ISO 614 and bending tests according to DIN EN 1288-3 up to a maximum load of 50 kN. The machine is driven by a central spindle, which allows for a test room width of 1300 mm and a test room depth of 650 mm. Furthermore, the design of the Inspekt S 50 allows for a modification of the test room size in order to test glass panes of larger or smaller dimensions. tatic puncture tests on tempered glass Tempered glass resists extraordinary loads and if it fails, it bursts into small, blunt crumbs. Thus, the risk of injuries is significantly decreased. The strength of this kind of glass can be tested with static puncture tests according to ISO 614. The static puncture tests are carried out on a work table that consists of 2 parallel aluminium heavy duty profiles at intervals of 570 mm. The profiles have T-slots on their upper surface for the installation of equipment. Depending on the equipment needed, the static puncture testing device or the 4-point bending device can be mounted or substituted quickly and easily. The equipment for the static puncture tests is designed for standard specimen shapes A and B.
