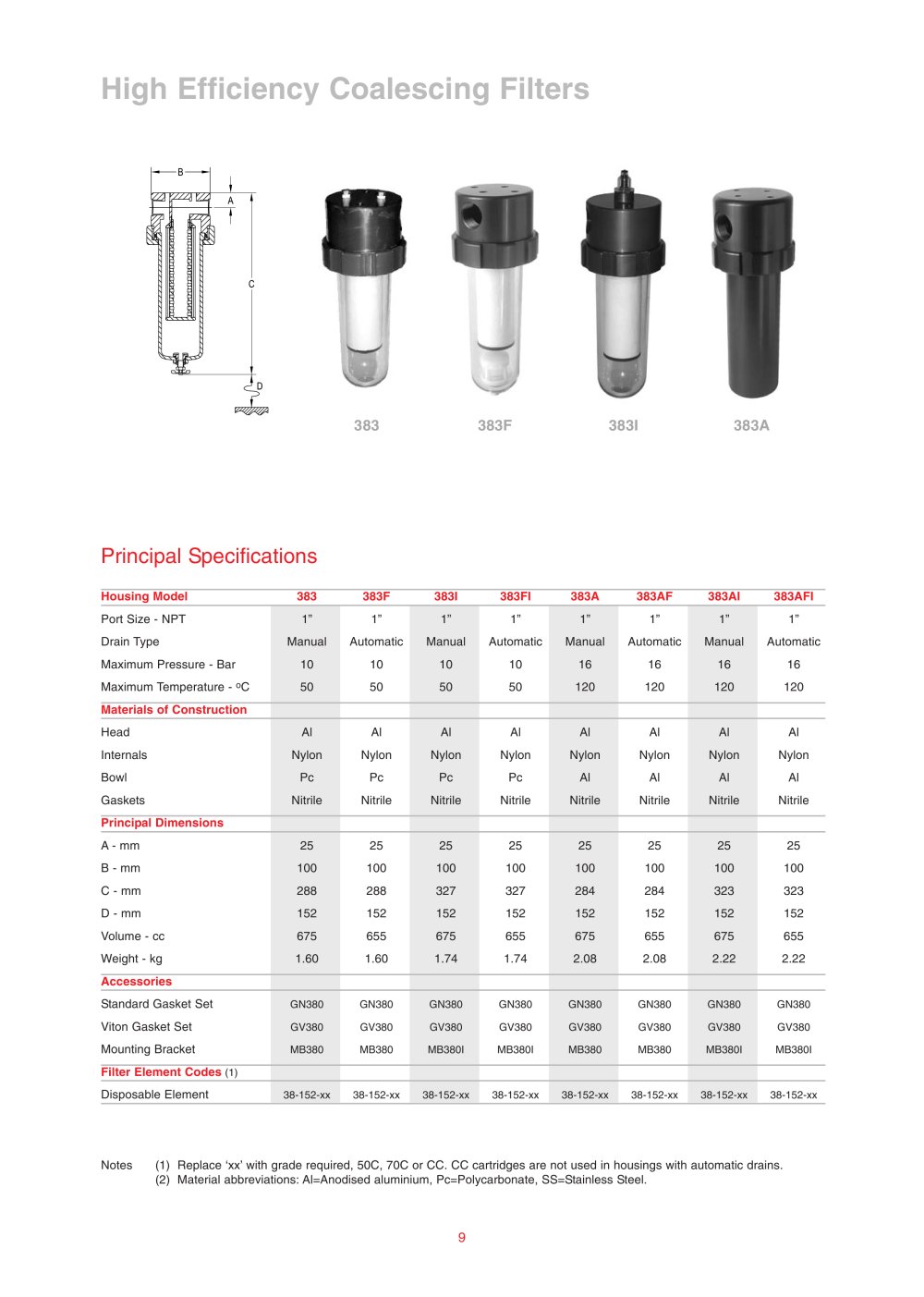

High Efficiency Coalescing Filters

383 383F 383I 383A

Principal Specifications


Housing Model	383	383F	383I	383FI	383A	383AF	383AI	383AFI
Port Size - NPT	1"	1"	1"	1"	1"	1"	1"	1"
Drain Type	Manual	Automatic	Manual	Automatic	Manual	Automatic	Manual	Automatic
Maximum Pressure - Bar	10	10	10	10	16	16	16	16
Maximum Temperature - ^oC	50	50	50	50	120	120	120	120
Materials of Construction
Head	Al	Al	Al	Al	Al	Al	Al	Al
Internals	Nylon	Nylon	Nylon	Nylon	Nylon	Nylon	Nylon	Nylon
Bowl	Pc	Pc	Pc	Pc	Al	Al	Al	Al
Gaskets	Nitrile	Nitrile	Nitrile	Nitrile	Nitrile	Nitrile	Nitrile	Nitrile
Principal Dimensions
A - mm	25	25	25	25	25	25	25	25
B - mm	100	100	100	100	100	100	100	100
C - mm	288	288	327	327	284	284	323	323
D - mm	152	152	152	152	152	152	152	152
Volume - cc	675	655	675	655	675	655	675	655
Weight - kg	1.60	1.60	1.74	1.74	2.08	2.08	2.22	2.22
Accessories
Standard Gasket Set	GN380	GN380	GN380	GN380	GN380	GN380	GN380	GN380
Viton Gasket Set	GV380	GV380	GV380	GV380	GV380	GV380	GV380	GV380
Mounting Bracket	MB380	MB380	MB380I	MB380I	MB380	MB380	MB380I	MB380I
Filter Element Codes (1)
Disposable Element	38-152-xx	38-152-xx	38-152-xx	38-152-xx	38-152-xx	38-152-xx	38-152-xx	38-152-xx

Notes (1) Replace 'xx' with grade required, 50C, 70C or CC. CC cartridges are not used in housings with automatic drains. (2) Material abbreviations: Al=Anodised aluminium, Pc=Polycarbonate, SS=Stainless Steel.
