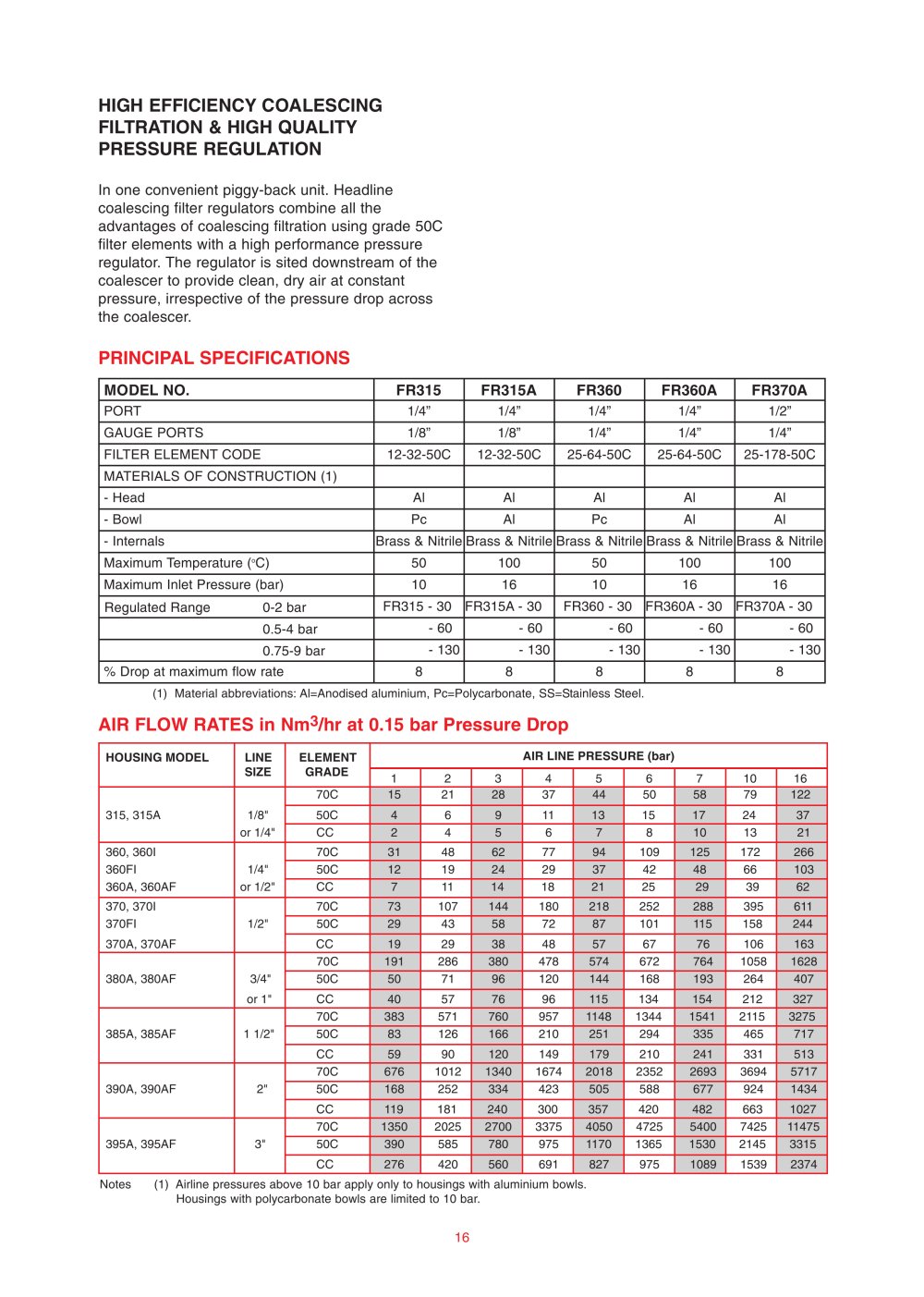

HIGH EFFICIENCYCOALESCINGFILTRATION & HIGH QUALITY PRESSURE REGULATION

In one convenient piggy-back unit. Headline coalescing filter regulators combine all the advantages of coalescing filtration using grade 50C filter elements with a high performance pressure regulator. The regulator is sited downstream of the coalescer to provide clean, dry air at constant pressure, irrespective of the pressure drop across the coalescer.

PRINCIPALSPECIFICATIONS

MODELNO. FR315 FR315A FR360 FR360A FR370A

PORT 1/4” 1/4” 1/4” 1/4” 1/2” GAUGE PORTS 1/8” 1/8” 1/4” 1/4” 1/4” FILTER ELEMENTCODE 12-32-50C 12-32-50C 25-64-50C 25-64-50C 25-178-50C MATERIALS OF CONSTRUCTION (1) - Head Al Al Al Al Al - Bowl Pc Al Pc Al Al - Internals Brass & Nitrile Brass & Nitrile Brass & Nitrile Brass & Nitrile Brass & Nitrile Maximum Temperature (
o C) 50 100 50 100 100 Maximum Inlet Pressure (bar) 10 16 10 16 16 Regulated Range0-2 bar FR315 - 30 FR315A- 30 FR360 - 30 FR360A- 30 FR370A- 30
AIR LINE PRESSURE (bar) 0.5-4 bar - 60 - 60 - 60 - 60 - 60 0.75-9 bar - 130 - 130 - 130 - 130 - 130 % Drop at maximum flow rate 8 8 8 8 8

AIR FLOW RATES in Nm

3

/hr at 0.15 bar Pressure Drop

HOUSING MODEL LINE ELEMENT SIZE GRADE 70C 15 21 28 37 44 50 58 79 122315, 315A 1/8" 50C 4 6 9 11 13 15 17 24 37 or 1/4" CC 2 4 5 6 7 8 10 13 21360, 360I 70C 31 48 62 77 94 109 125 172 266360FI 1/4" 50C 12 19 24 29 37 42 48 66 103360A, 360AF or 1/2" CC 7 11 14 18 21 25 29 39 62370, 370I 70C 73 107 144 180 218 252 288 395 611370FI 1/2" 50C 29 43 58 72 87 101 115 158 244370A, 370AF CC 19 29 38 48 57 67 76 106 163 70C 191 286 380 478 574 672 764 1058 1628 380A, 380AF 3/4" 50C 50 71 96 120 144 168 193 264 407 or 1" CC 40 57 76 96 115 134 154 212 327 70C 383 571 760 957 1148 1344 1541 2115 3275 385A, 385AF 1 1/2" 50C 83 126 166 210 251 294 335 465 717 CC 59 90 120 149 179 210 241 331 513 70C 676 1012 1340 1674 2018 2352 2693 3694 5717 390A, 390AF 2" 50C 168 252 334 423 505 588 677 924 1434 CC 119 181 240 300 357 420 482 663 1027 70C 1350 2025 2700 3375 4050 4725 5400 7425 11475 395A, 395AF 3" 50C 390 585 780 975 1170 1365 1530 2145 3315 CC 276 420 560 691 827 975 1089 1539 2374 1 2 3 4 5 6 7 10 16 Notes(1) Airline pressures above 10 bar apply only to housings with aluminium bowls.Housings with polycarbonate bowls are limited to 10 bar. (1) Material abbreviations: Al=Anodised aluminium, Pc=Polycarbonate, SS=Stainless Steel. 16
