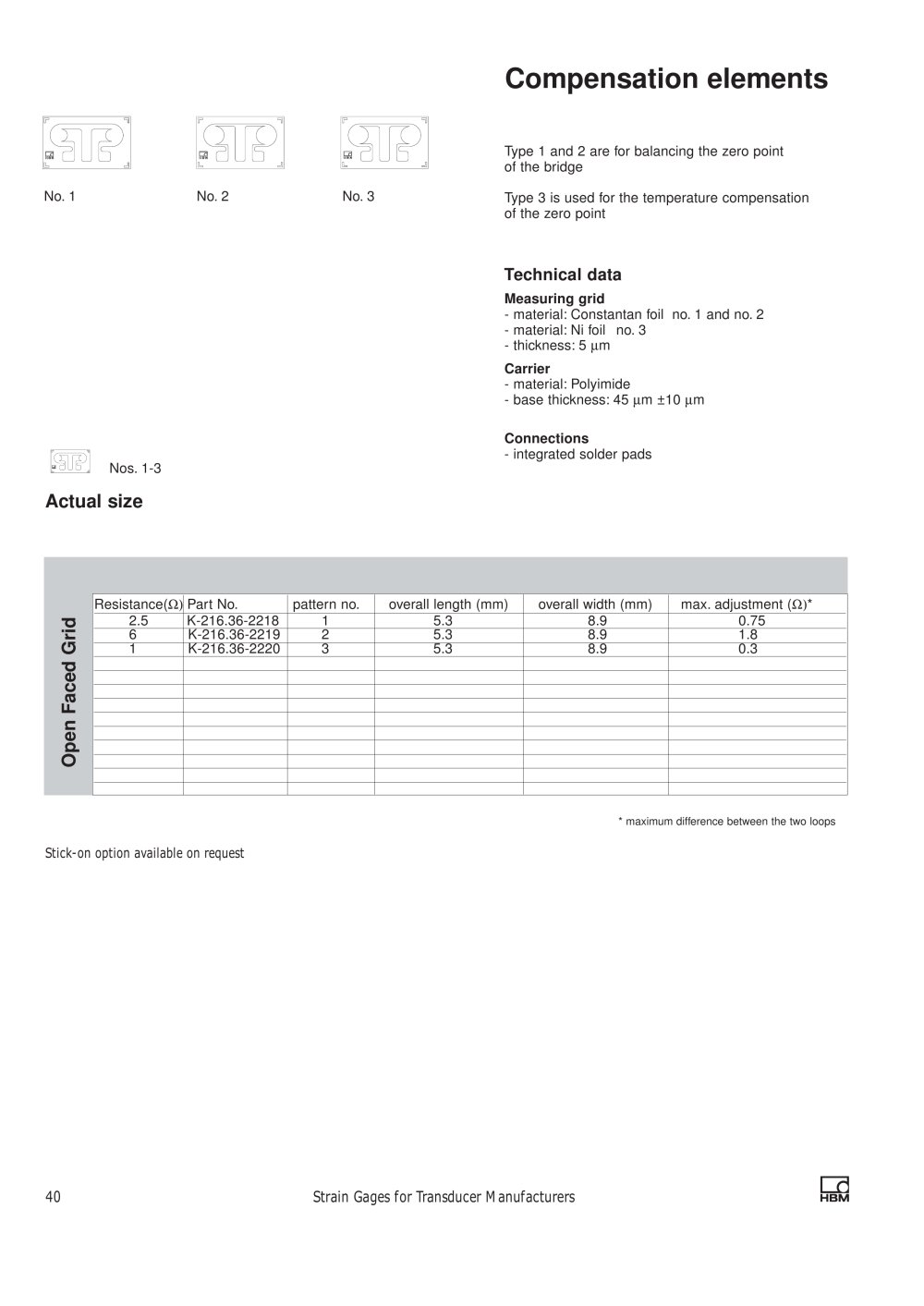

Compensation elements
No.1 Nos.1-3 No.2No.3Type 1 and 2 are for balancing the zero point of the bridgeType 3 is used for the temperature compensation of the zero pointTechnical data
- material:Constantan foilno.1 and no.2- material:Ni foilno.3- thickness:5 Measuring grid µ m Carrier - material:Polyimide- base thickness:45 µ m ±10 µ m Connections - integrated solder padsActual size
Resistance( Ω) Part No.pattern no.overall length (mm) overall width (mm)max.adjustment ( Ω) * 2.5 K-216.36-2218 15.38.90.75 6 K-216.36-2219 25.38.91.8 1 K-216.36-2220 35.38.90.3Open Faced Grid * maximum difference between the two loops Stick-on option available on request
