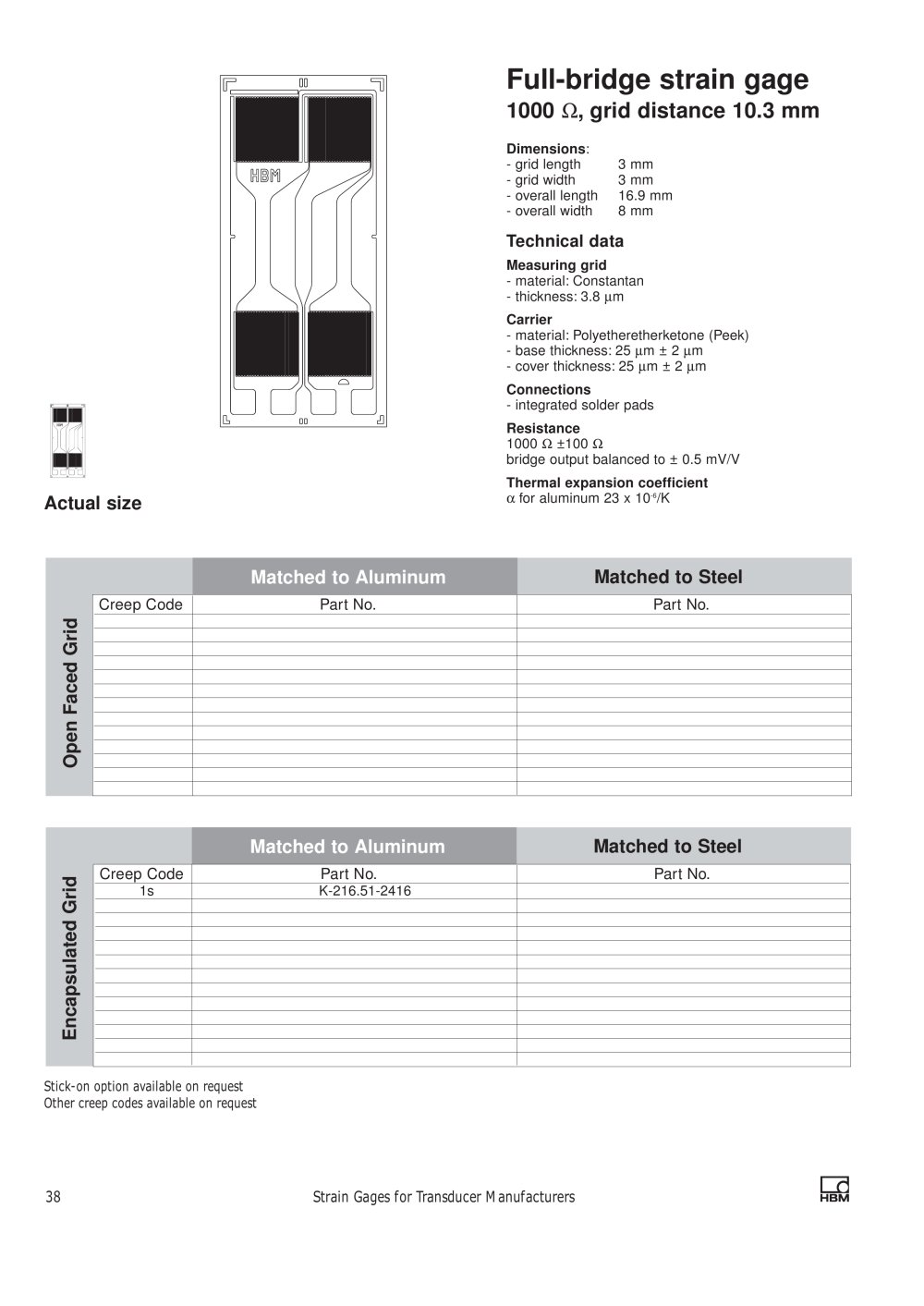

Full-bridge strain gage
1000 Ω ,grid distance 10.3 mm
Dimensions :- grid length3 mm - grid width3 mm - overall length16.9 mm- overall width8 mmTechnical data
Measuring grid µ m - material:Constantan - thickness:3.8 Carrier µ m ±2 µ m- cover thickness:25 - material:Polyetheretherketone (Peek) - base thickness:25 µ m ±2 µ m Connections - integrated solder pads Resistance 1000 Ω ±100 Ω bridge output balanced to ±0.5 mV/V Thermal expansion coefficient α for aluminum 23 x 10Actual size
-6 /KMatched to AluminumMatched to Steel
Creep CodePart No.Part No.
Open Faced GridMatched to AluminumMatched to Steel
Creep CodePart No.Part No.
1sK-216.51-2416Encapsulated Grid Stick-on option available on requestOther creep codes available on request
