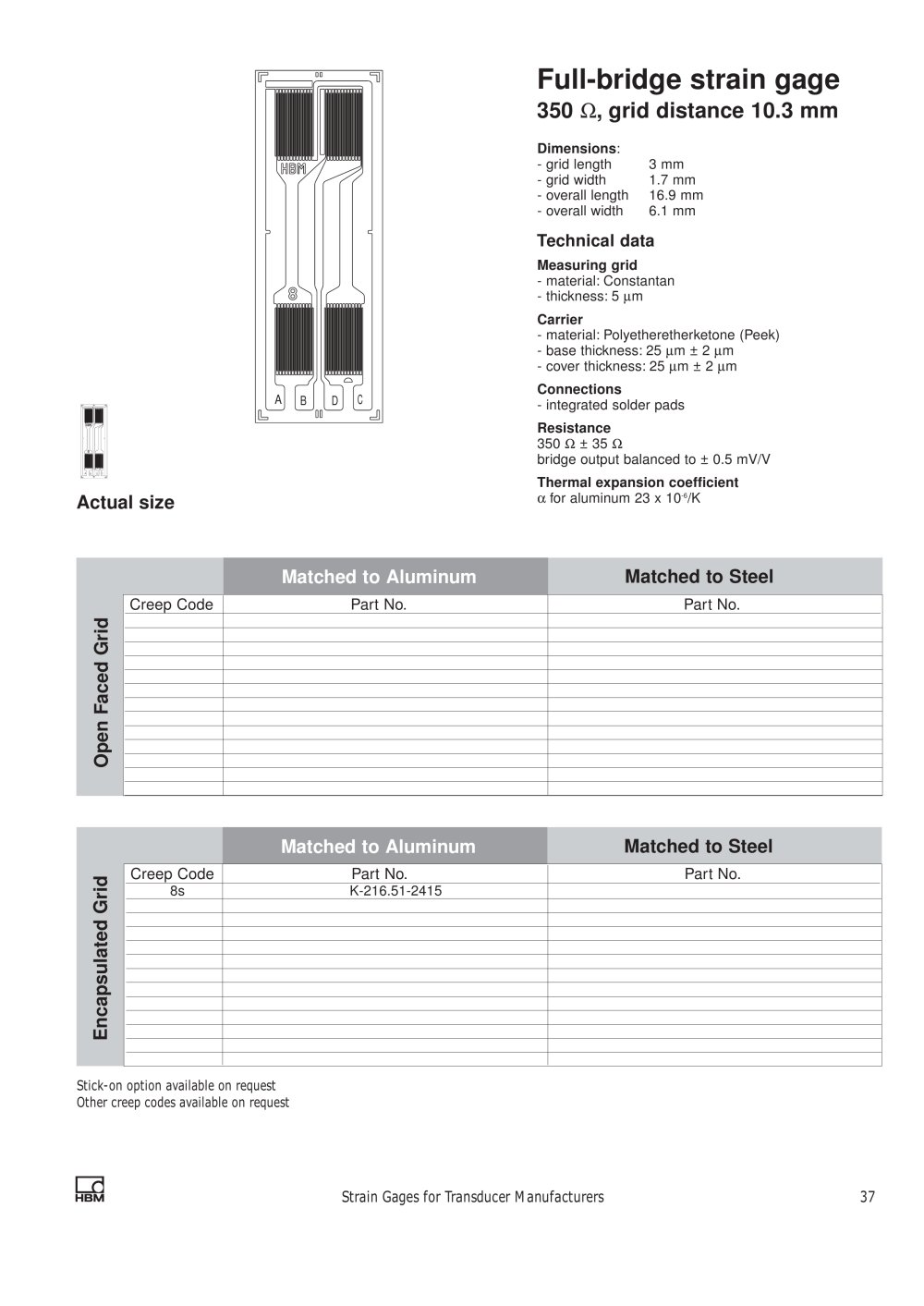

Full-bridge strain gage
350 Ω ,grid distance 10.3 mm
Dimensions :- grid length3 mm - grid width1.7 mm - overall length16.9 mm - overall width6.1 mmTechnical data
µ m - material:Constantan - thickness:5 Measuring grid Carrier µ m ±2 µ m- cover thickness:25 - material:Polyetheretherketone (Peek) - base thickness:25 µ m ±2 µ m Connections - integrated solder pads Resistance 350 Ω ±35 Ω bridge output balanced to ±0.5 mV/VA B D C Thermal expansion coefficient α for aluminum 23 x 10
A B D C
Actual size
-6 /KMatched to AluminumMatched to Steel
Creep CodePart No.Part No.
Open Faced GridMatched to AluminumMatched to Steel
Creep CodePart No.Part No.
8sK-216.51-2415Encapsulated Grid Stick-on option available on requestOther creep codes available on request
