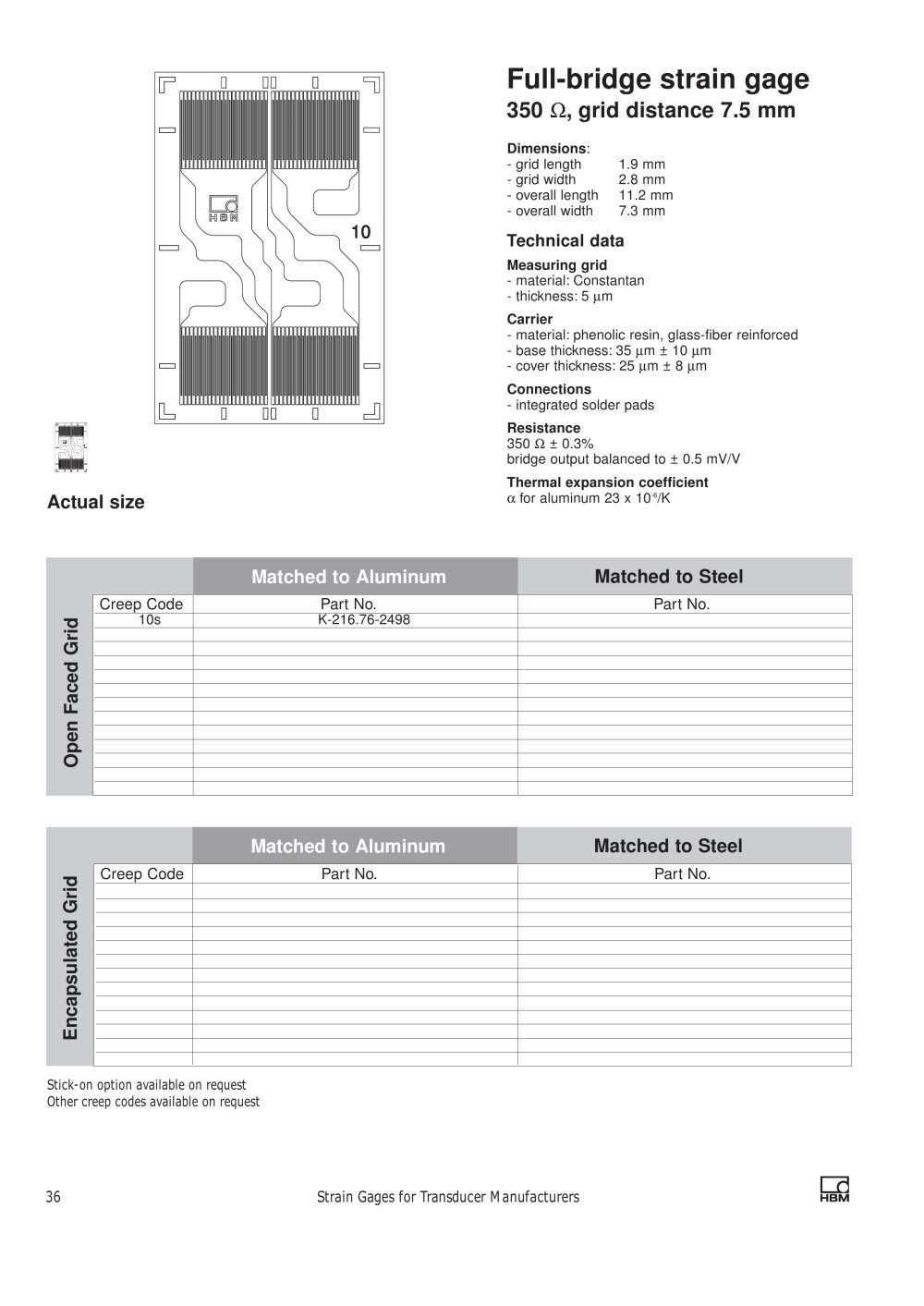

Full-bridge strain gage 350 Ω ,grid distance 7.5 mm
Dimensions :- grid length1.9 mm - grid width2.8 mm - overall length11.2 mm - overall width7.3 mm10
Technical data
µ m - material:Constantan - thickness:5 Measuring grid Carrier µ m ±10 µ m- cover thickness:25 - material:phenolic resin, glass-fiber reinforced - base thickness:35 µ m ±8 µ m Connections - integrated solder pads Resistance 350 Ω ±0.3%bridge output balanced to ±0.5 mV/V Thermal expansion coefficient α for aluminum 23 x 101 10
Actual size
-6 /KMatched to AluminumMatched to Steel
Creep CodePart No.Part No.
10sK-216.76-2498Open Faced Grid
