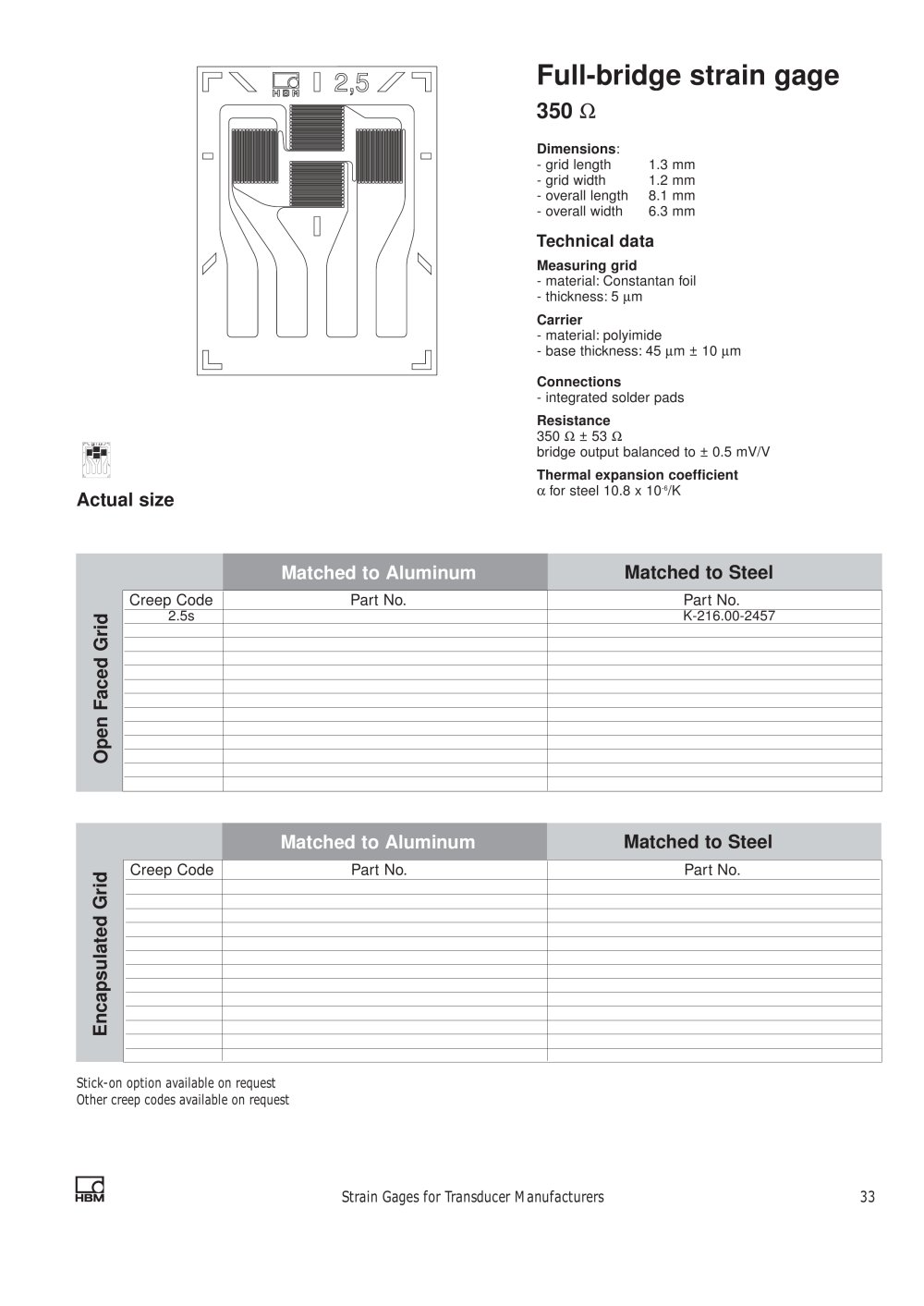

2,5 Full-bridge strain gage
350 Ω
Dimensions :- grid length1.3 mm - grid width1.2 mm - overall length8.1 mm - overall width6.3 mmTechnical data
µ m - material:Constantan foil - thickness:5 Measuring grid Carrier µ m ±10 µ m - material:polyimide - base thickness:45 Connections - integrated solder pads Resistance 350 Ω ±53 Ω bridge output balanced to ±0.5 mV/V Thermal expansion coefficient α for steel 10.8 x 102,5 -6
Actual size
/KMatched to AluminumMatched to Steel
Creep CodePart No.Part No.
2.5sK-216.00-2457Open Faced Grid
