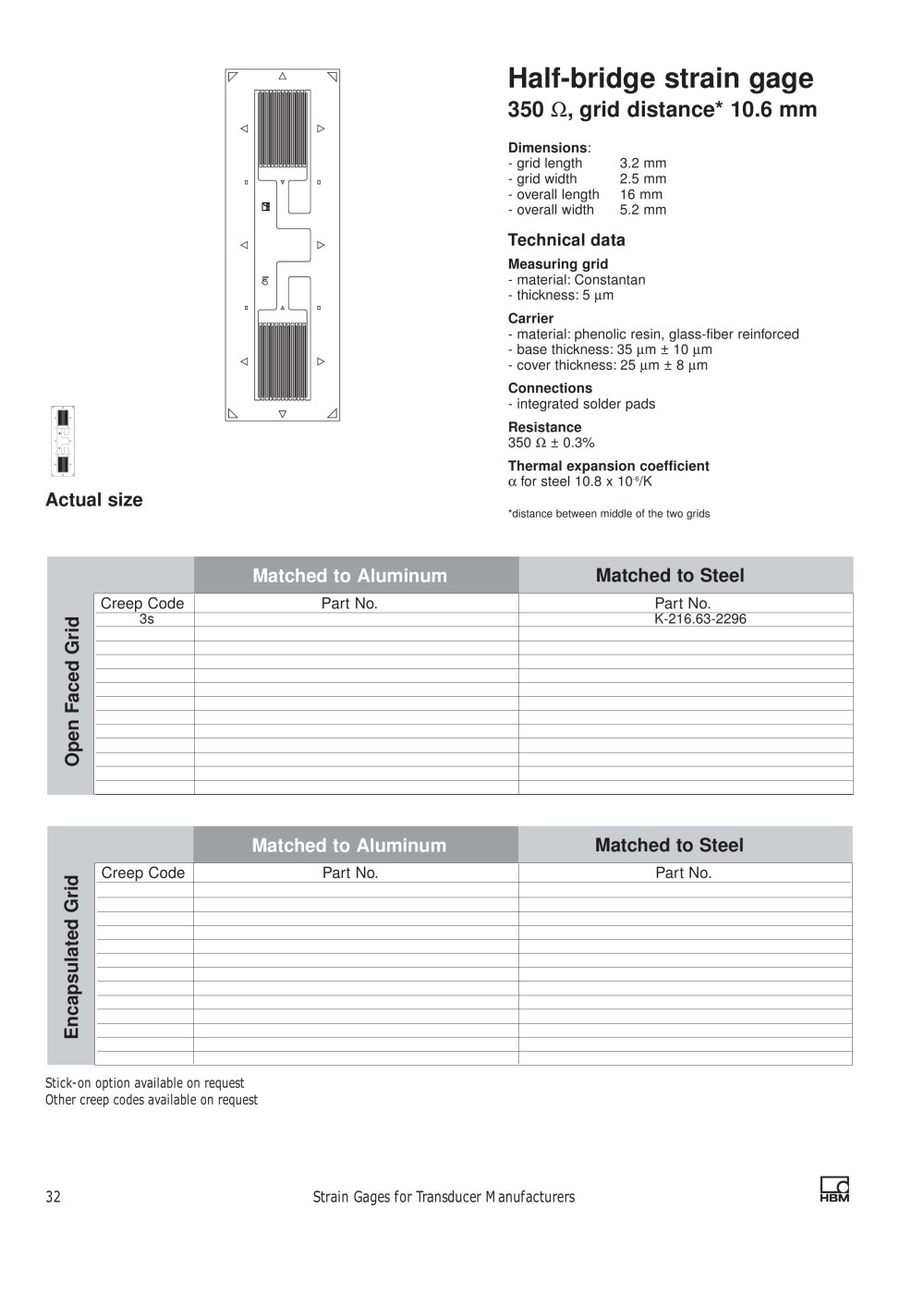

Half-bridge strain gage
350 Ω ,grid distance* 10.6 mm
Dimensions :- grid length3.2 mm - grid width2.5 mm
- overall length16 mm
- overall width5.2 mm
Technical data
µ m - material:Constantan - thickness:5 Measuring grid Carrier µ m ±10 µ m- cover thickness:25 - material:phenolic resin, glass-fiber reinforced
- base thickness:35 µ m ±8 µ m Connections - integrated solder pads Resistance 350 Ω ±0.3% Thermal expansion coefficient α for steel 10.8 x 10
-6 /K
Actual size
*distance between middle of the two grids Matched to AluminumMatched to Steel
Creep CodePart No.Part No.
3sK-216.63-2296
Open Faced Grid Matched to AluminumMatched to Steel
Creep CodePart No.Part No.
Encapsulated Grid Stick-on option available on requestOther creep codes available on request
