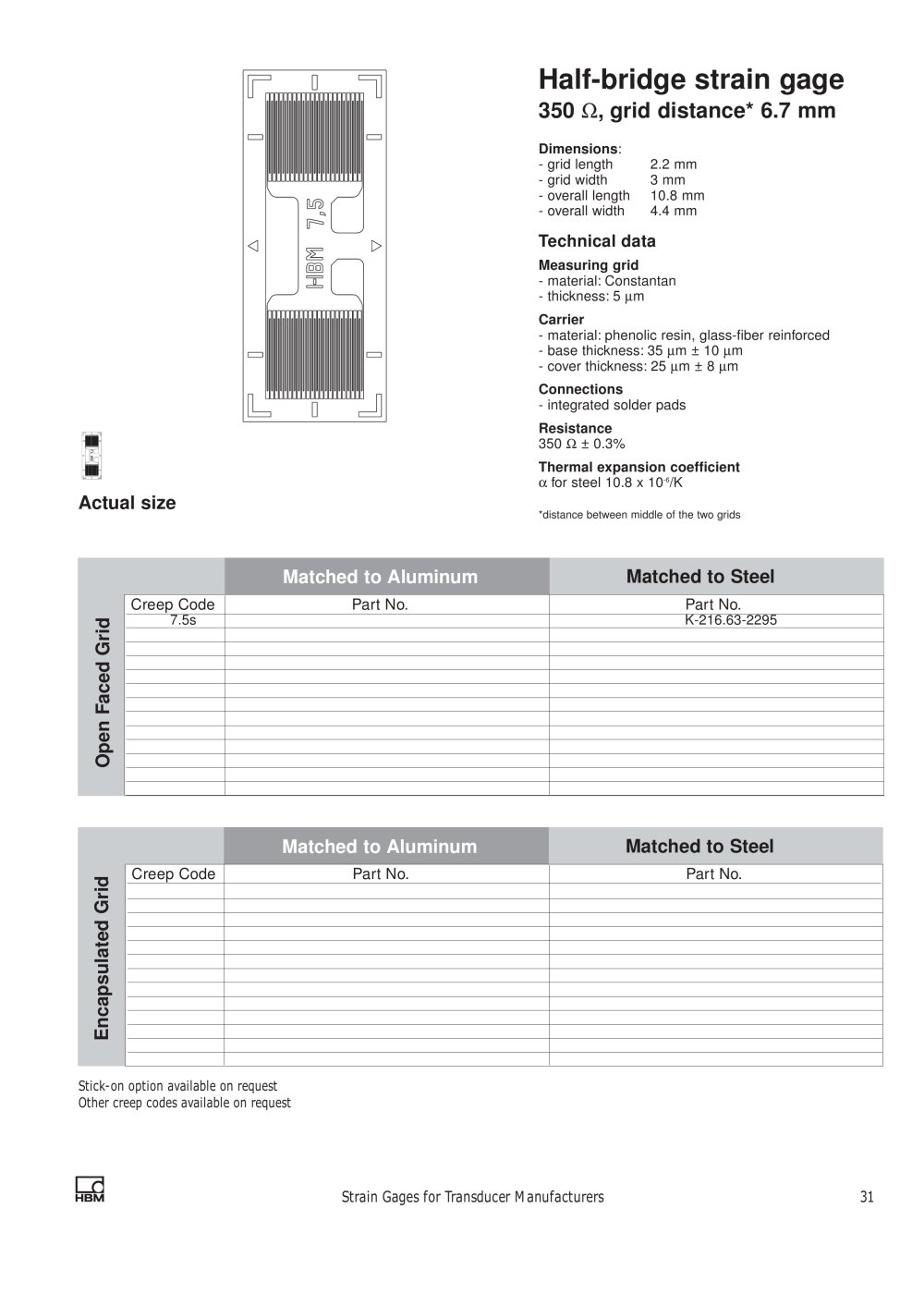

Half-bridge strain gage
350 Ω ,grid distance* 6.7 mm
Dimensions :- grid length2.2 mm - grid width3 mm - overall length10.8 mm - overall width4.4 mmTechnical data
µ m - material:Constantan - thickness:5 Measuring grid Carrier µ m ±10 µ m- cover thickness:25 - material:phenolic resin, glass-fiber reinforced - base thickness:35 µ m ±8 µ m Connections - integrated solder pads Resistance 350 Ω ±0.3% Thermal expansion coefficient α for steel 10.8 x 10-6 /K
Actual size
*distance between middle of the two gridsMatched to AluminumMatched to Steel
Creep CodePart No.Part No.
7.5sK-216.63-2295Open Faced Grid
