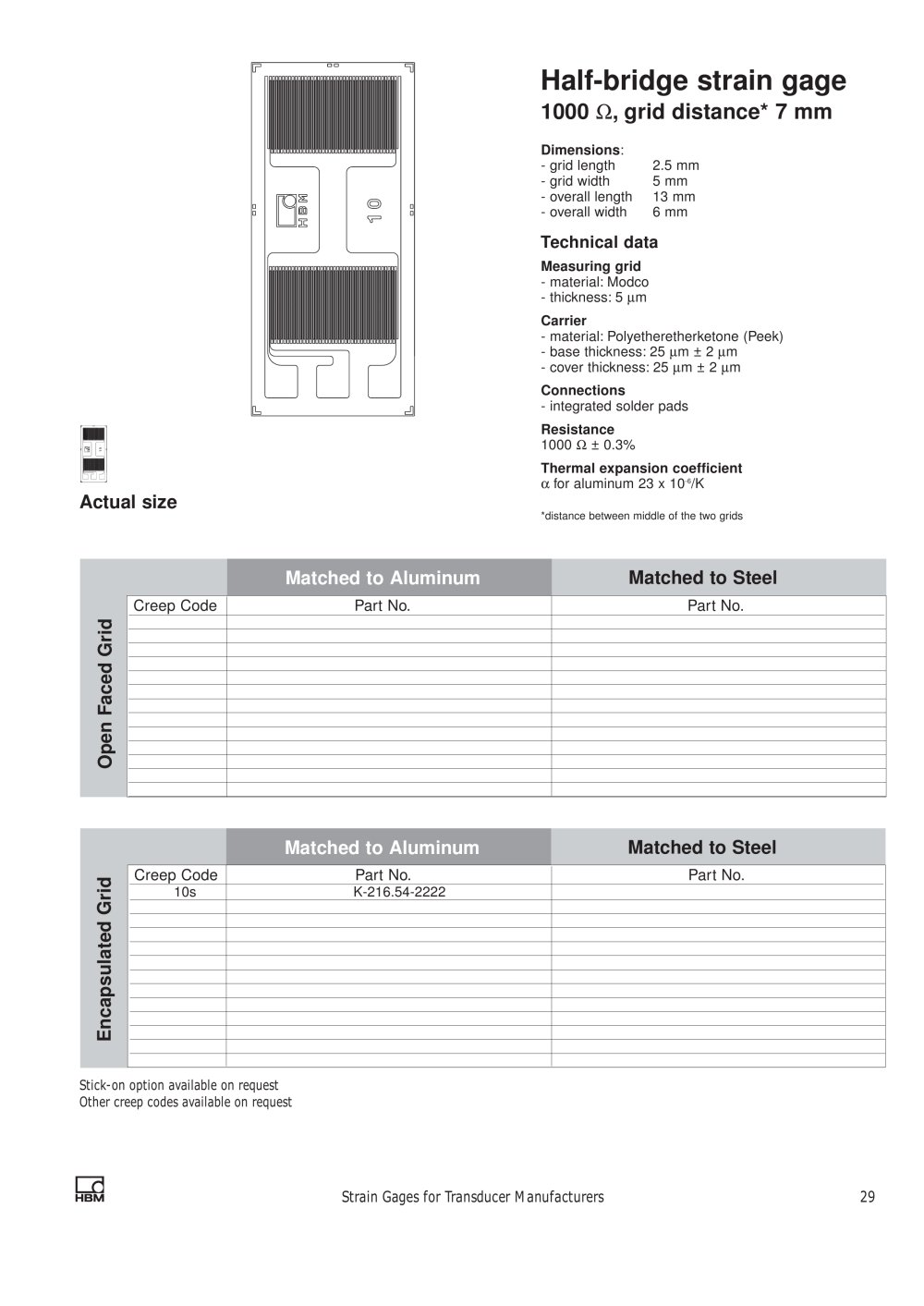

Half-bridge strain gage
1000 Ω ,grid distance* 7 mm
Dimensions :- grid length2.5 mm - grid width5 mm - overall length13 mm - overall width6 mmTechnical data
µ m - material:Modco - thickness:5 Measuring grid Carrier µ m ±2 µ m- cover thickness:25 - material:Polyetheretherketone (Peek) - base thickness:25 µ m ±2 µ m Connections - integrated solder pads Resistance 1000 Ω ±0.3% Thermal expansion coefficient α for aluminum 23 x 10-6 /K
Actual size
*distance between middle of the two gridsMatched to AluminumMatched to Steel
Creep CodePart No.Part No.
Open Faced GridMatched to AluminumMatched to Steel
Creep CodePart No.Part No.
10sK-216.54-2222Encapsulated Grid Stick-on option available on requestOther creep codes available on request
