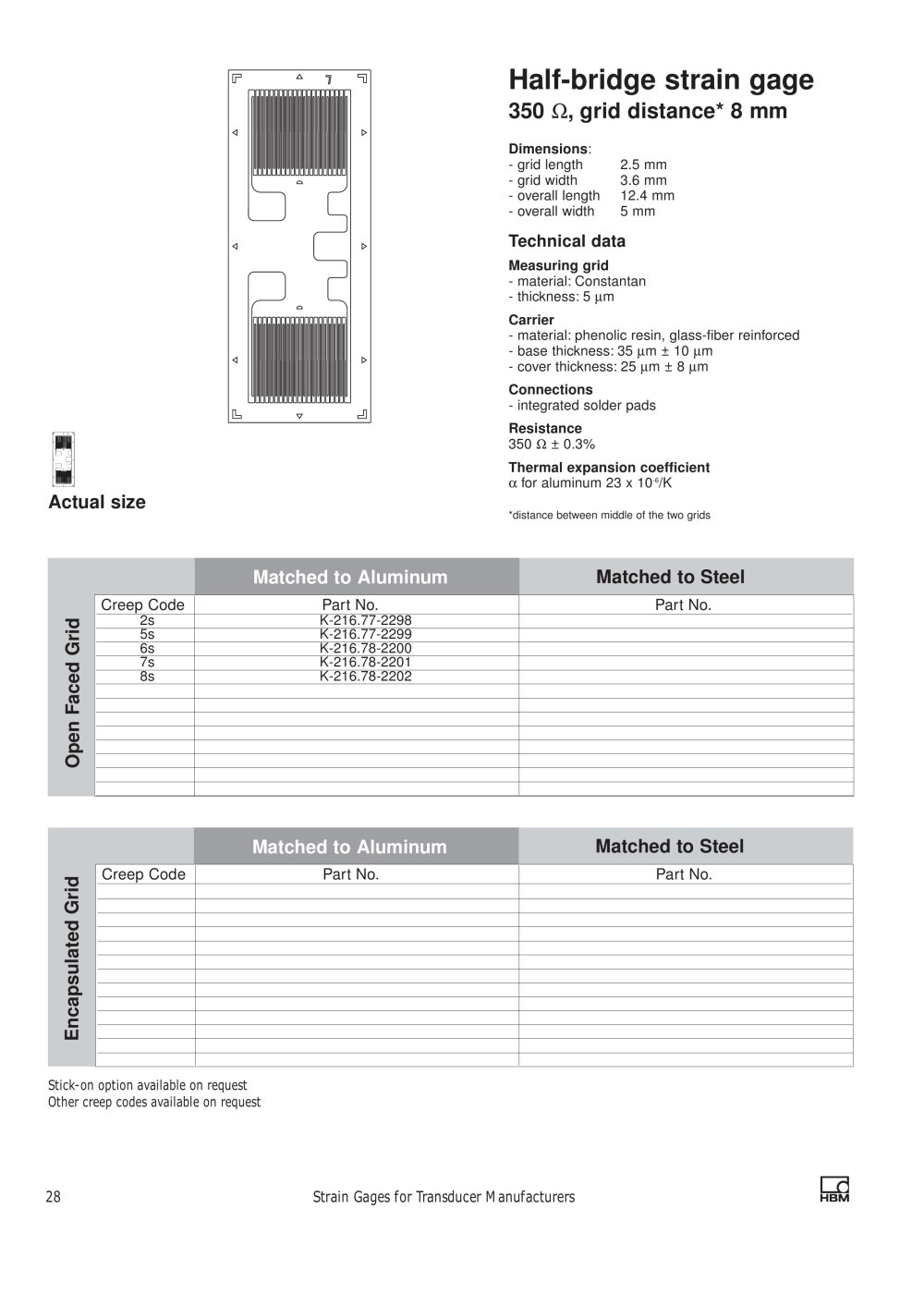

Half-bridge strain gage
350 Ω ,grid distance* 8 mm
Dimensions :- grid length2.5 mm - grid width3.6 mm - overall length12.4 mm - overall width5 mmTechnical data
µ m - material:Constantan - thickness:5 Measuring grid Carrier µ m ±10 µ m- cover thickness:25 - material:phenolic resin, glass-fiber reinforced - base thickness:35 µ m ±8 µ m Connections - integrated solder pads Resistance 350 Ω ±0.3% Thermal expansion coefficient α for aluminum 23 x 10-6 /K
Actual size
*distance between middle of the two gridsMatched to AluminumMatched to Steel
Creep CodePart No.Part No.
2sK-216.77-2298 5sK-216.77-2299 6sK-216.78-2200 7sK-216.78-2201 8sK-216.78-2202Open Faced Grid
