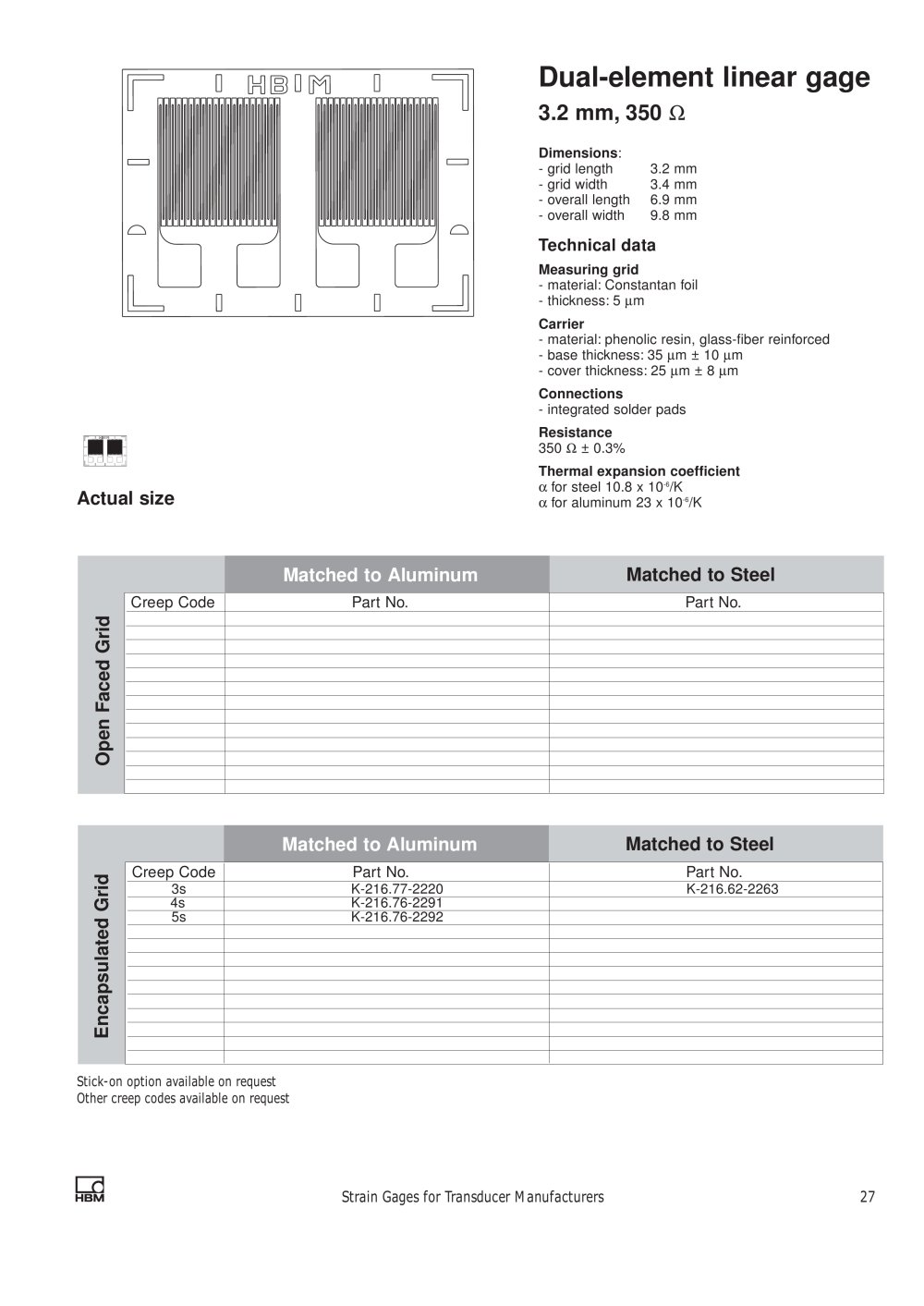

Dual-element linear gage
3.2 mm,350 Ω
Dimensions :- grid length3.2 mm - grid width3.4 mm - overall length6.9 mm - overall width9.8 mmTechnical data
µ m Carrier - material:Constantan foil - thickness:5 µ m ±10 µ m- cover thickness:25 - material:phenolic resin, glass-fiber reinforced - base thickness:35 Measuring grid µ m ±8 µ m Connections - integrated solder pads Resistance 350 Ω ±0.3% Thermal expansion coefficient α for steel 10.8 x 10-6
Actual size
/K α for aluminum 23 x 10-6 /K
Matched to AluminumMatched to Steel
Creep CodePart No.Part No.
Open Faced GridMatched to AluminumMatched to Steel
Creep CodePart No.Part No.
3sK-216.77-2220K-216.62-2263 4sK-216.76-2291 5sK-216.76-2292Encapsulated Grid Stick-on option available on requestOther creep codes available on request
