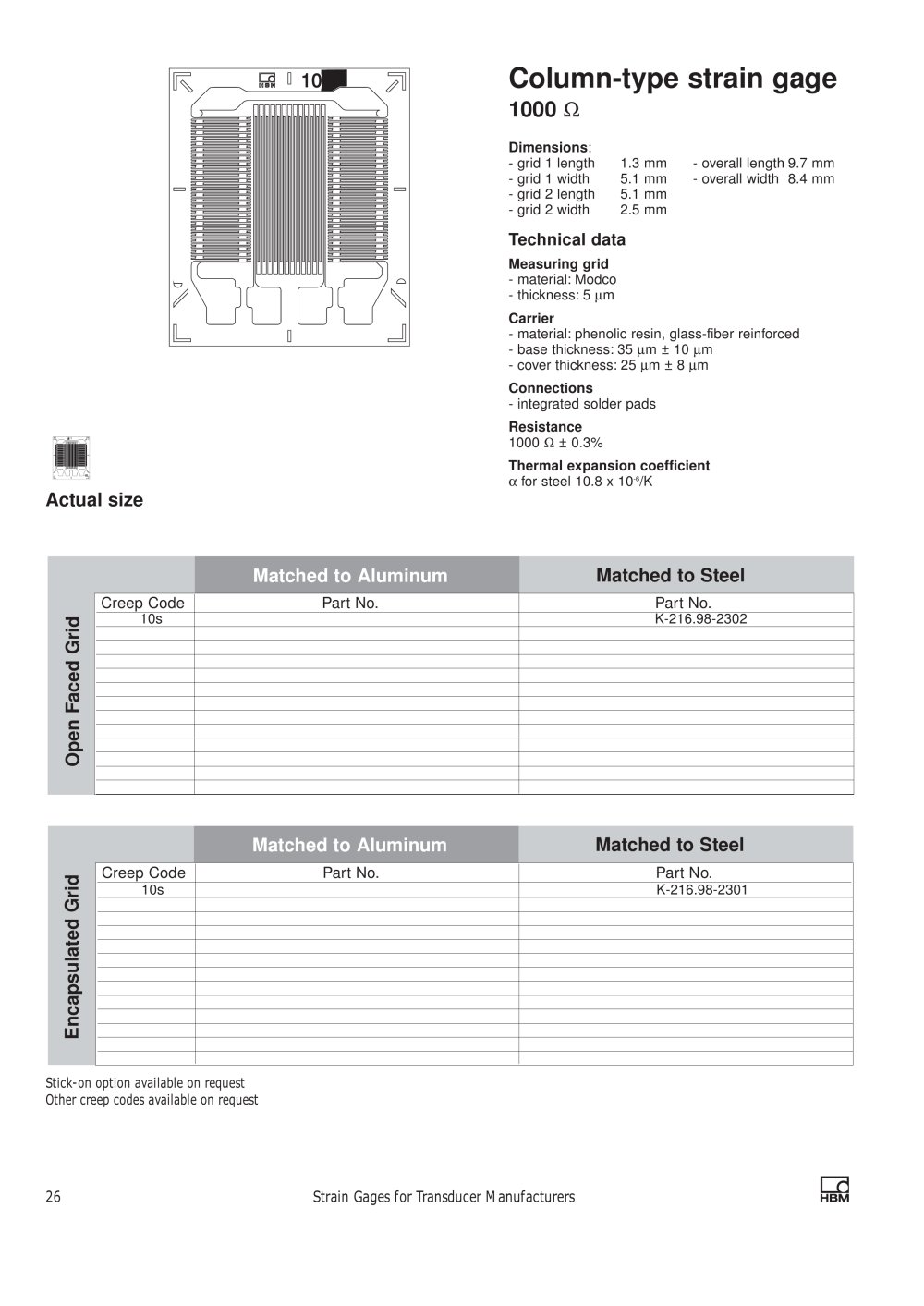

Strain Gages for Transducer Manufacturers - 6017 Column-type strain gage 1000 Ω
Dimensions :- grid 1 length1.3 mm - overall length9.7 mm - grid 1 width5.1 mm - overall width8.4 mm - grid 2 length5.1 mm- grid 2 width2.5 mmTechnical data
Measuring grid µ m - material:Modco - thickness:5 Carrier µ m ±10 µ m- cover thickness:25 - material:phenolic resin, glass-fiber reinforced - base thickness:35 µ m ±8 µ m Connections - integrated solder pads Resistance 1000 Ω ±0.3% Thermal expansion coefficient α for steel 10.8 x 1010 10 -6 /K
Actual size Matched to AluminumMatched to Steel
Creep CodePart No.Part No.
10sK-216.98-2302Open Faced Grid
Matched to AluminumMatched to Steel
Creep CodePart No.Part No.
10sK-216.98-2301Encapsulated Grid Stick-on option available on requestOther creep codes available on request
