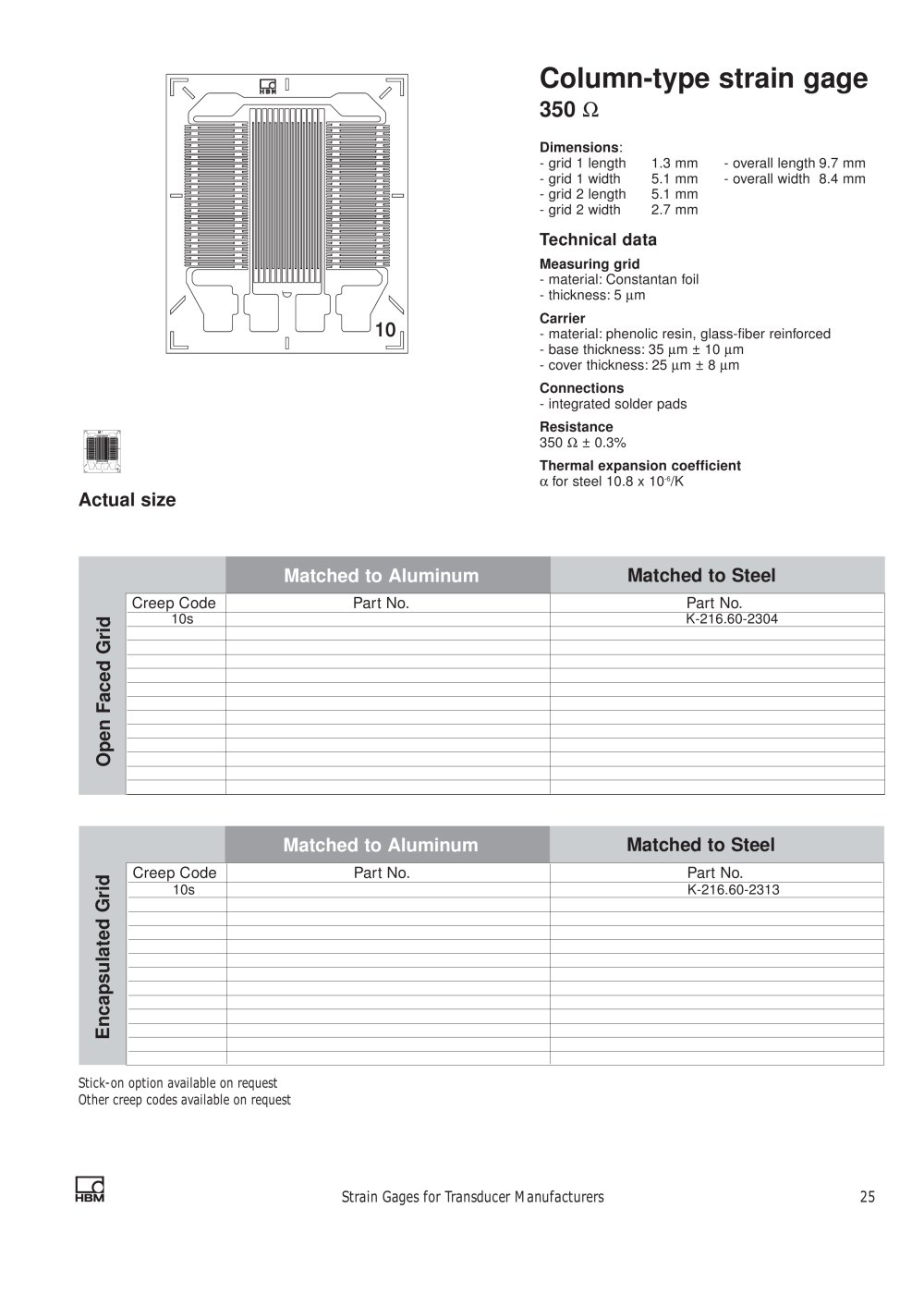

Column-type strain gage 350 Ω
Dimensions :- grid 1 length1.3 mm - overall length9.7 mm - grid 1 width5.1 mm - overall width8.4 mm- grid 2 length5.1 mm- grid 2 width2.7 mmTechnical data
µ m - material:Constantan foil - thickness:5 Measuring grid Carrier µ m ±10 µ m- cover thickness:25 - material:phenolic resin, glass-fiber reinforced - base thickness:35 µ m ±8 µ m Connections - integrated solder pads10
Resistance 350 Ω ±0.3% Thermal expansion coefficient α for steel 10.8 x 1010 10 -6 /K
Actual size Matched to AluminumMatched to Steel
Creep CodePart No.Part No.
10sK-216.60-2304Open Faced Grid
Matched to AluminumMatched to Steel
Creep CodePart No.Part No.
10sK-216.60-2313Encapsulated Grid Stick-on option available on requestOther creep codes available on request
