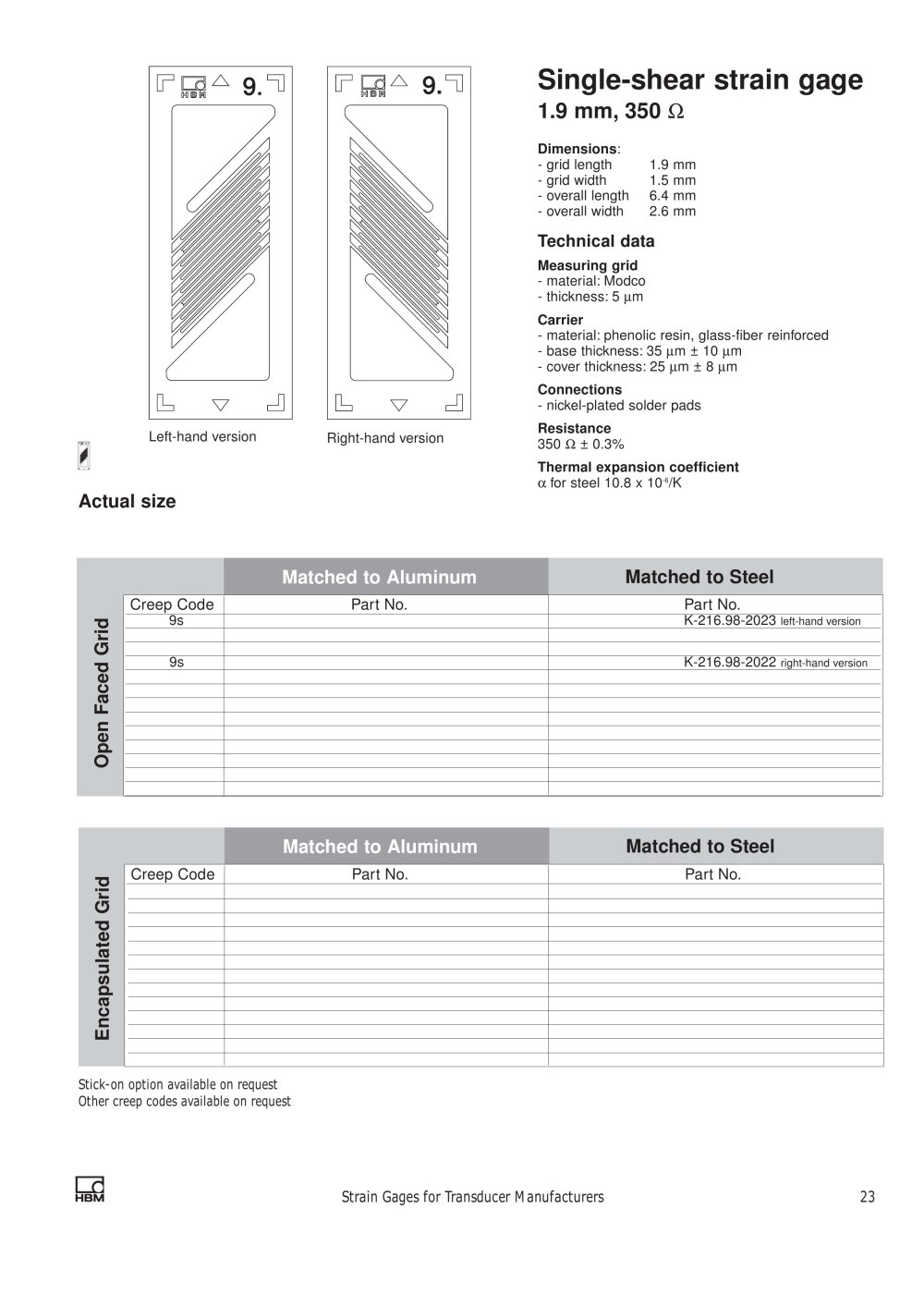

9. 9. Single-shear strain gage
1.9 mm,350 Ω
Dimensions :- grid length1.9 mm - grid width1.5 mm - overall length6.4 mm - overall width2.6 mmTechnical data
µ m - material:Modco - thickness:5 Measuring grid Carrier µ m ±10 µ m- cover thickness:25 - material:phenolic resin, glass-fiber reinforced - base thickness:35 µ m ±8 µ m Connections - nickel-plated solder pads Resistance 350 Ω ±0.3% Thermal expansion coefficient α for steel 10.8 x 109. 9. Left-hand version Right-hand version
-6 /K
Actual size Matched to AluminumMatched to Steel
Creep CodePart No.Part No.
9sK-216.98-2023left-hand version 9sK-216.98-2022
right-hand version Open Faced Grid
