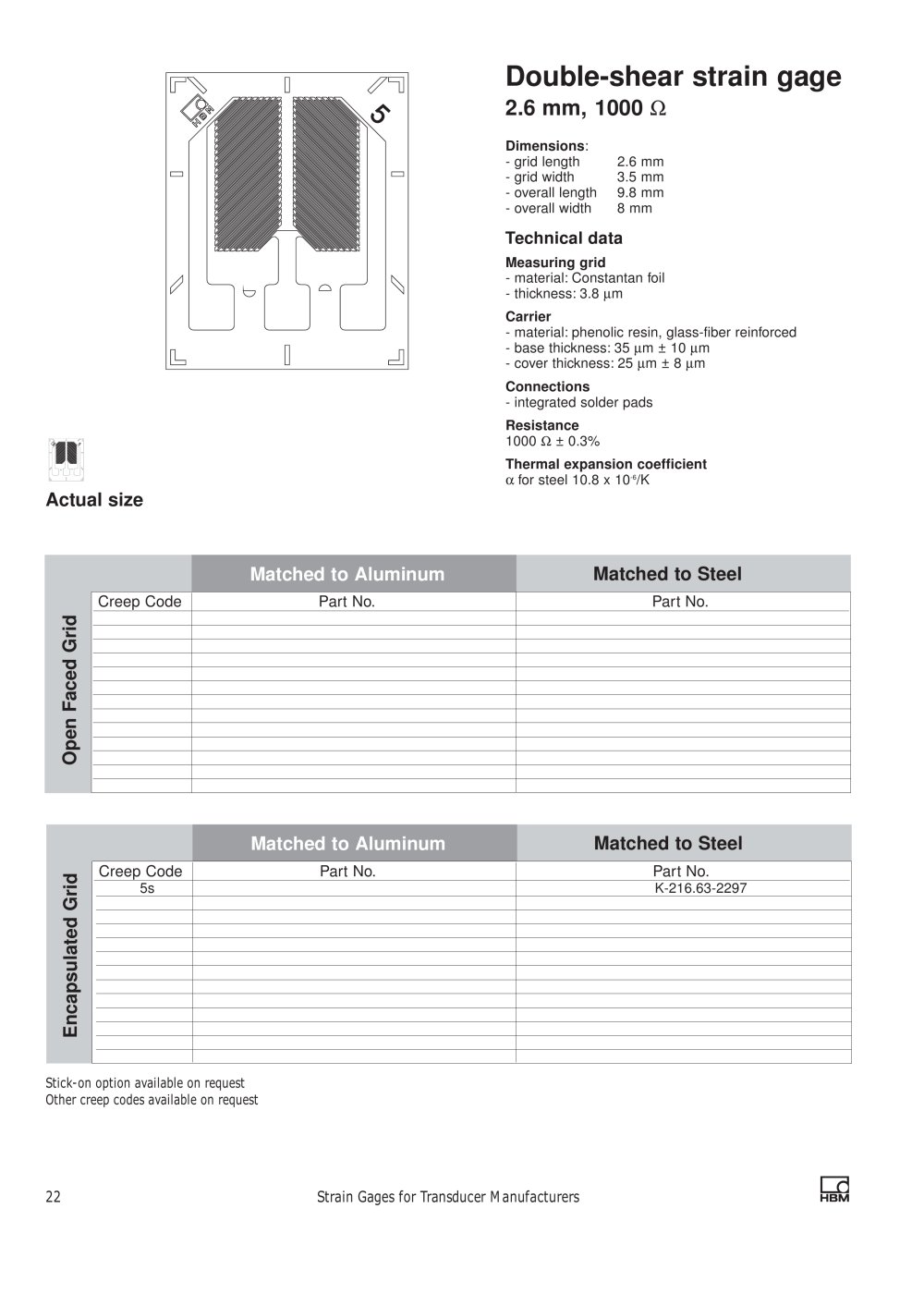

Double-shear strain gage
5
2.6 mm,1000 Ω
Dimensions :- grid length2.6 mm - grid width3.5 mm - overall length9.8 mm- overall width8 mmTechnical data
Measuring grid µ m - material:Constantan foil - thickness:3.8 Carrier µ m ±10 µ m- cover thickness:25 - material:phenolic resin, glass-fiber reinforced - base thickness:35 µ m ±8 µ m Connections - integrated solder pads Resistance 1000 Ω ±0.3% Thermal expansion coefficient α for steel 10.8 x 105 5 -6 /K
Actual size Matched to AluminumMatched to Steel
Creep CodePart No.Part No.
Open Faced GridMatched to AluminumMatched to Steel
Creep CodePart No.Part No.
5sK-216.63-2297Encapsulated Grid Stick-on option available on requestOther creep codes available on request
