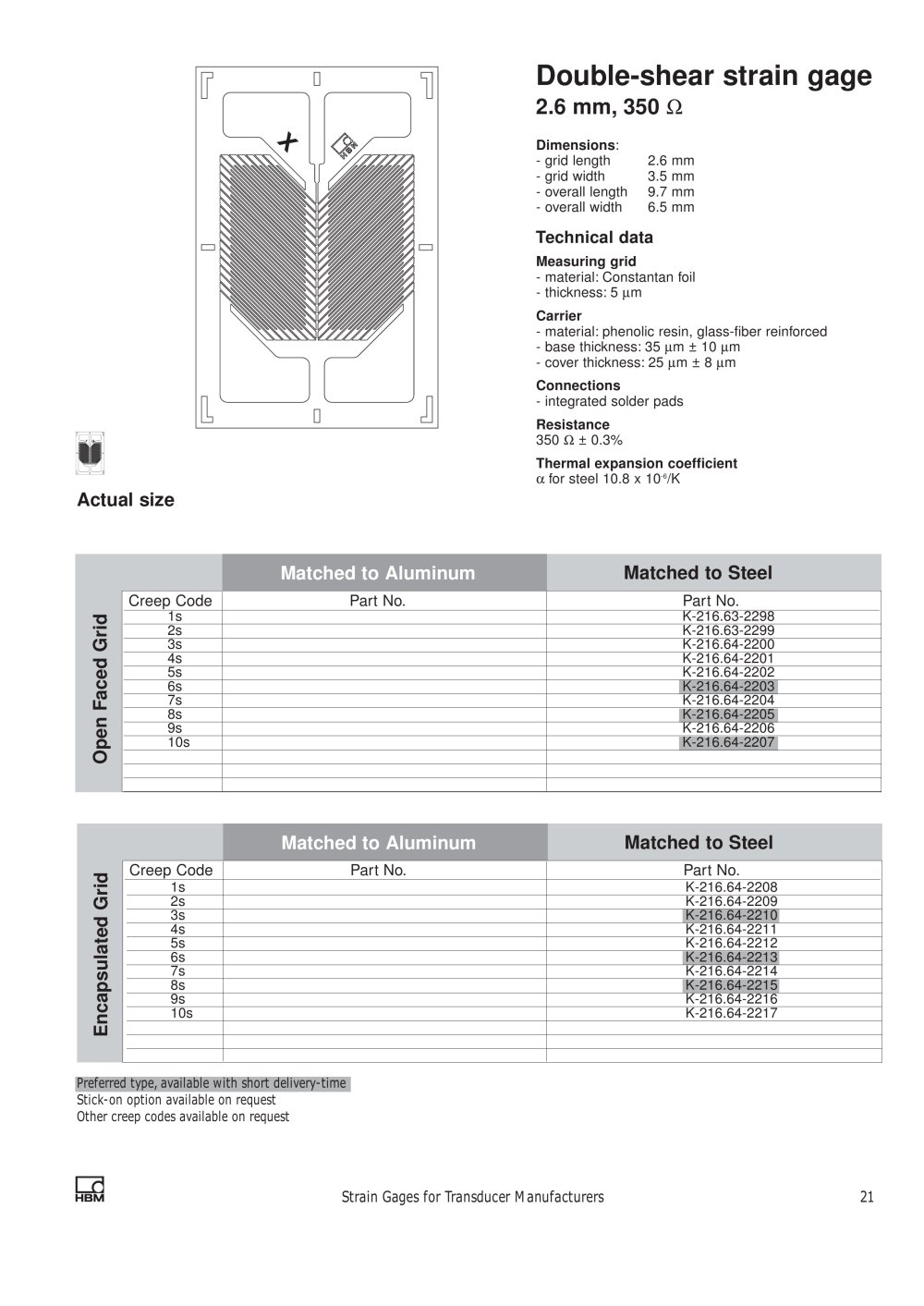

Double-shear strain gage 2.6 mm,350 Ω

X

Dimensions :- grid length2.6 mm - grid width3.5 mm - overall length9.7 mm - overall width6.5 mm

Technical data

µ m - material:Constantan foil - thickness:5 Measuring grid Carrier µ m ±10 µ m- cover thickness:25 - material:phenolic resin, glass-fiber reinforced - base thickness:35 µ m ±8 µ m Connections - integrated solder pads Resistance 350 Ω ±0.3% Thermal expansion coefficient α for steel 10.8 x 10
X -6 /K

Actual size Matched to AluminumMatched to Steel

Creep CodePart No.Part No.

1sK-216.63-2298 2sK-216.63-2299 3sK-216.64-2200 4sK-216.64-2201 5sK-216.64-2202 6sK-216.64-2203 7sK-216.64-2204 8sK-216.64-2205 9sK-216.64-2206 10sK-216.64-2207
Open Faced Grid

Matched to AluminumMatched to Steel

Creep CodePart No.Part No.

1sK-216.64-2208 2sK-216.64-2209 3sK-216.64-2210 4sK-216.64-2211 5sK-216.64-2212 6sK-216.64-2213 7sK-216.64-2214 8sK-216.64-2215 9sK-216.64-2216 10sK-216.64-2217
Encapsulated Grid Preferred type, available with short delivery-timeStick-on option available on request Other creep codes available on request

Strain Gages for Transducer Manufacturers 21
