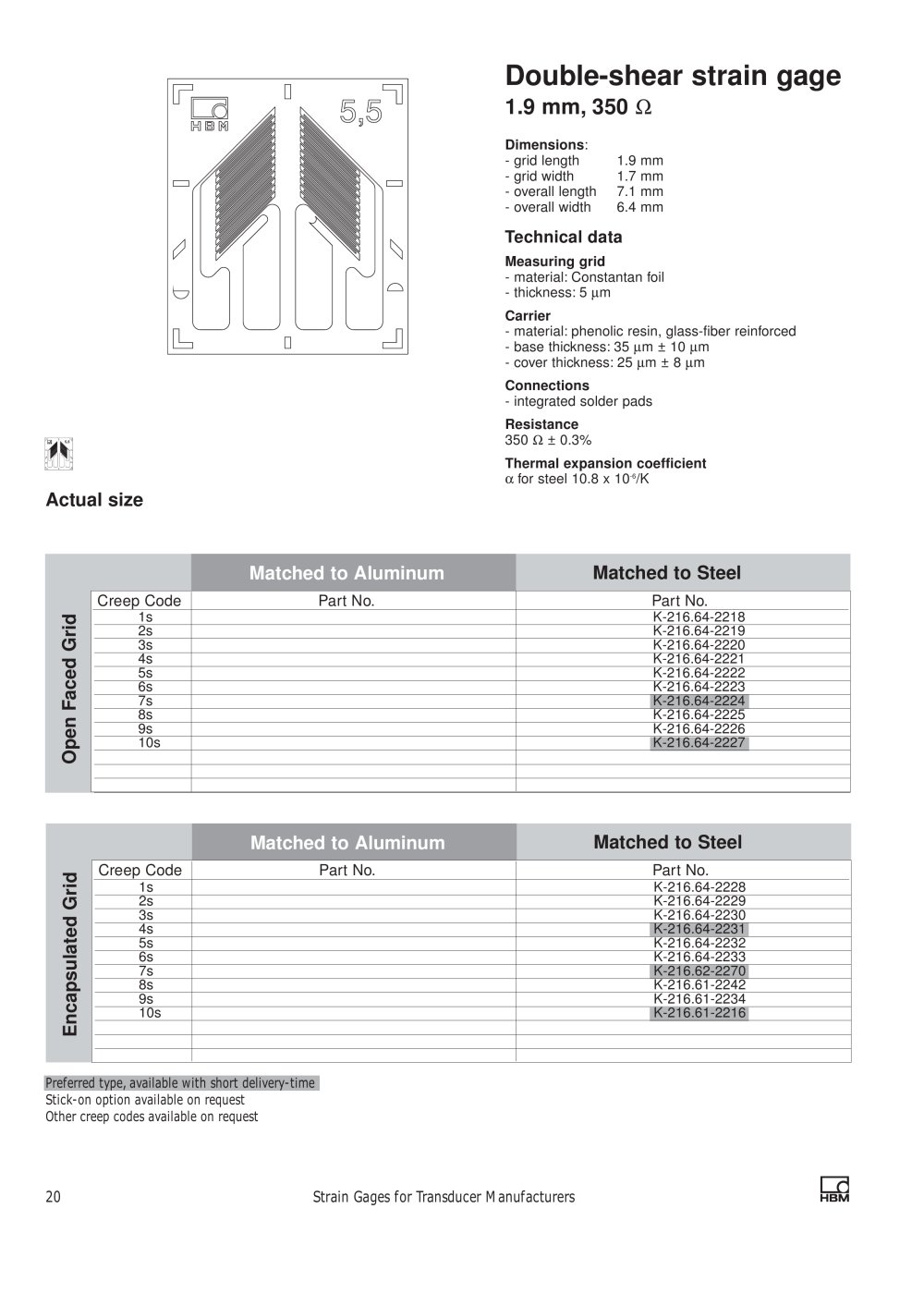

Double-shear strain gage 5,5

1.9 mm,350 Ω

Dimensions :- grid length1.9 mm - grid width1.7 mm - overall length7.1 mm - overall width6.4 mm

Technical data

µ m - material:Constantan foil - thickness:5 Measuring grid Carrier µ m ±10 µ m- cover thickness:25 - material:phenolic resin, glass-fiber reinforced - base thickness:35 µ m ±8 µ m Connections - integrated solder pads Resistance 350 Ω ±0.3% Thermal expansion coefficient α for steel 10.8 x 10
5,5 -6 /K

Actual size Matched to AluminumMatched to Steel

Creep CodePart No.Part No.

1sK-216.64-2218 2sK-216.64-2219 3sK-216.64-2220 4sK-216.64-2221 5sK-216.64-2222 6sK-216.64-2223 7sK-216.64-2224 8sK-216.64-2225 9sK-216.64-2226 10sK-216.64-2227
Open Faced Grid

Matched to AluminumMatched to Steel

Creep CodePart No.Part No.

1sK-216.64-2228 2sK-216.64-2229 3sK-216.64-2230 4sK-216.64-2231 5sK-216.64-2232 6sK-216.64-2233 7sK-216.62-2270 8sK-216.61-2242 9sK-216.61-2234 10sK-216.61-2216
Encapsulated Grid Preferred type, available with short delivery-timeStick-on option available on request Other creep codes available on request

20 Strain Gages for Transducer Manufacturers
