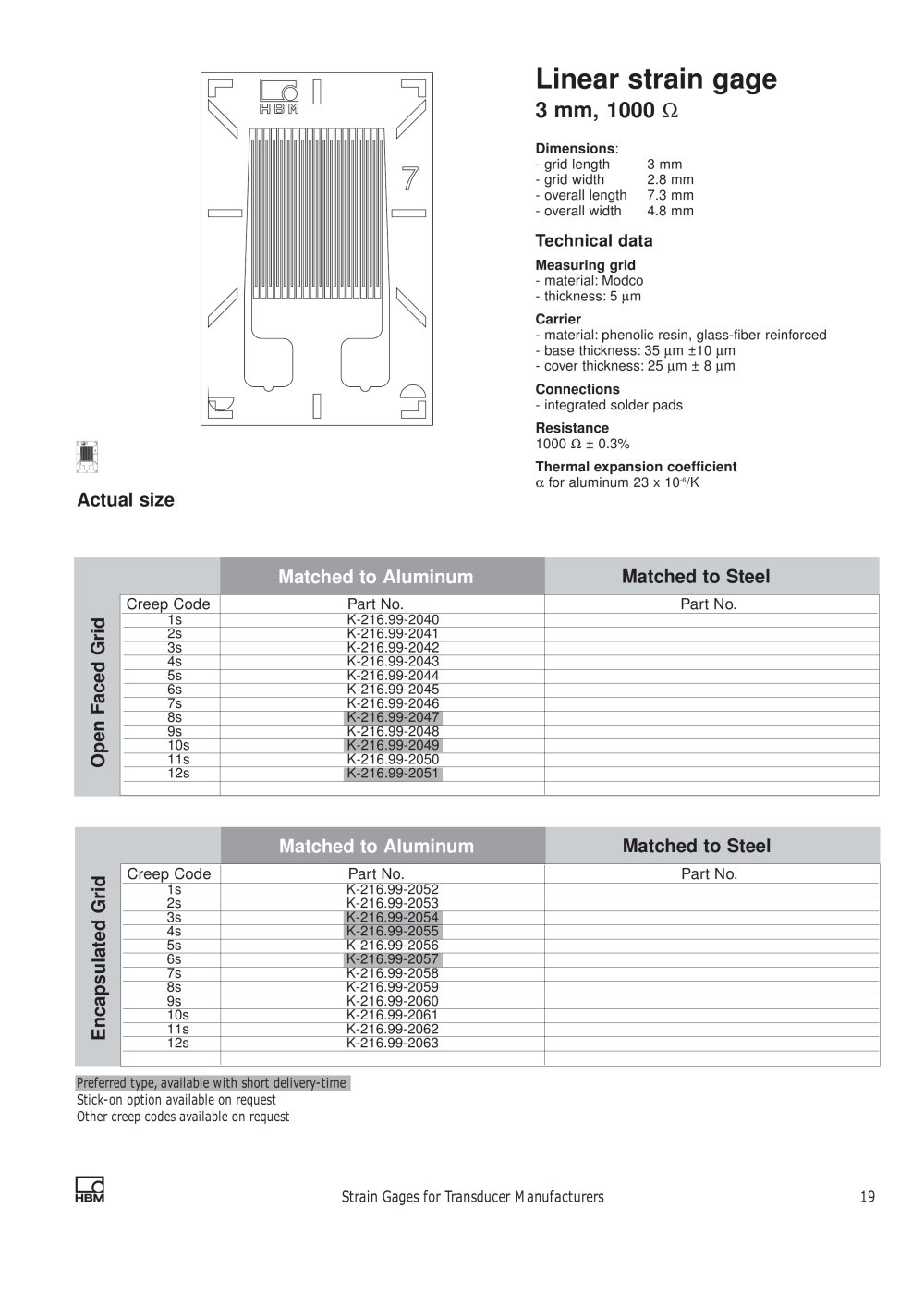

Linear strain gage
3 mm,1000 Ω
Dimensions :- grid length3 mm - grid width2.8 mm - overall length7.3 mm - overall width4.8 mm7
Technical data
µ m - material:Modco - thickness:5 Measuring grid Carrier - material:phenolic resin, glass-fiber reinforced- base thickness:35 µ m ±10 µ m- cover thickness:25 µ m ±8 µ m Connections - integrated solder pads Resistance 1000 Ω ±0.3% Thermal expansion coefficient α for aluminum 23 x 107 -6 /K
Actual size Matched to AluminumMatched to Steel
Creep CodePart No.Part No.
1sK-216.99-2040 2sK-216.99-2041 3sK-216.99-2042 4sK-216.99-2043 5sK-216.99-2044 6sK-216.99-2045 7sK-216.99-2046 8sK-216.99-2047 9sK-216.99-2048 10sK-216.99-2049Open Faced Grid 11sK-216.99-2050 12sK-216.99-2051
Matched to AluminumMatched to Steel
Creep CodePart No.Part No.
1sK-216.99-2052 2sK-216.99-2053 3sK-216.99-2054 4sK-216.99-2055 5sK-216.99-2056 6sK-216.99-2057 7sK-216.99-2058 8sK-216.99-2059 9sK-216.99-2060 10sK-216.99-2061Encapsulated Grid 11sK-216.99-2062 12sK-216.99-2063 Preferred type, available with short delivery-timeStick-on option available on request Other creep codes available on request
