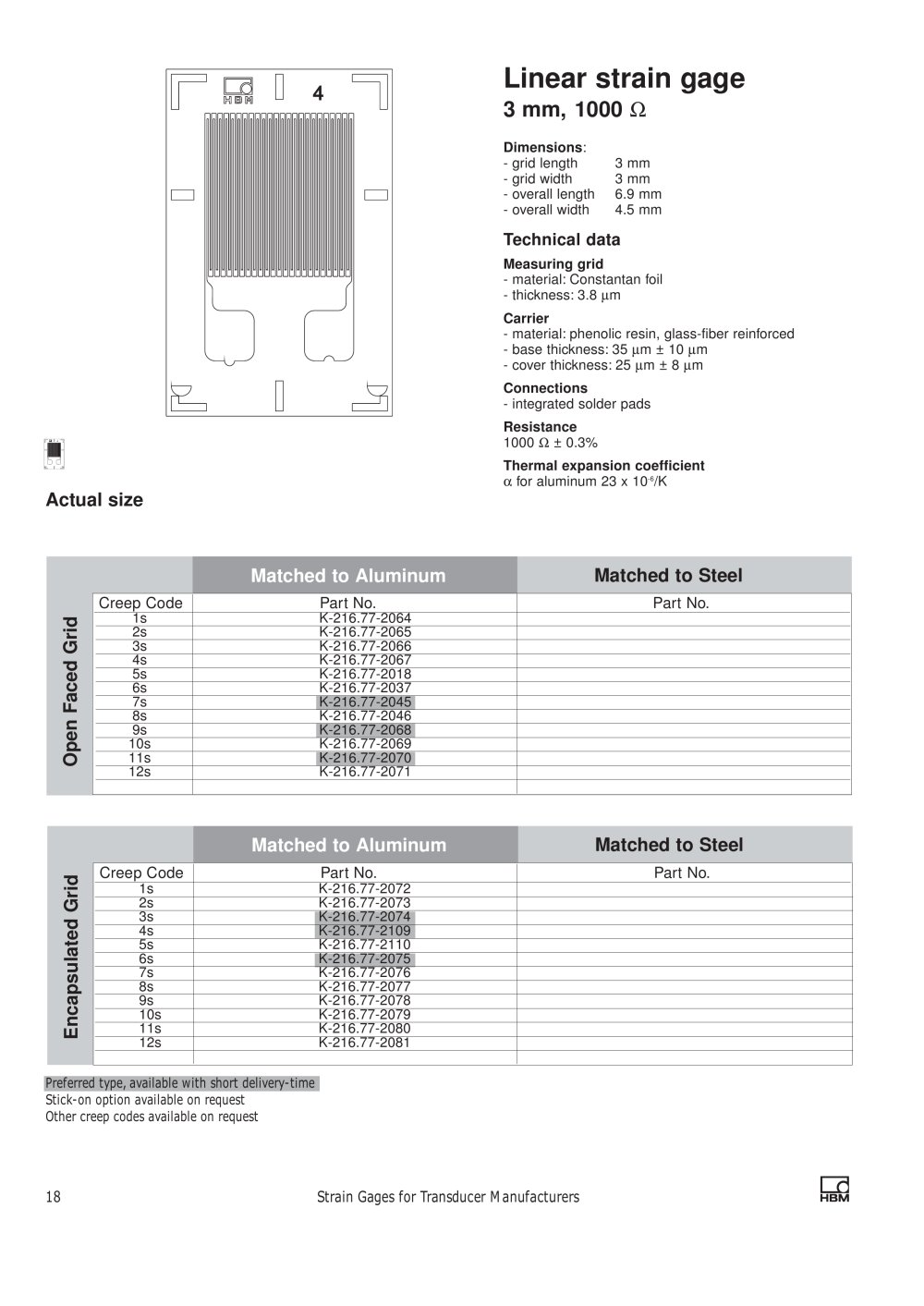

Strain Gages for Transducer Manufacturers - 6017 Linear strain gage 3 mm,1000 Ω

Dimensions :- grid length3 mm - grid width3 mm - overall length6.9 mm- overall width4.5 mm

Technical data

Measuring grid µ m - material:Constantan foil - thickness:3.8 Carrier µ m ±10 µ m- cover thickness:25 - material:phenolic resin, glass-fiber reinforced - base thickness:35 µ m ±8 µ m Connections - integrated solder pads Resistance 1000 Ω ±0.3% Thermal expansion coefficient α for aluminum 23 x 10
4 -6 /K

Actual size Matched to AluminumMatched to Steel

Creep CodePart No.Part No.

1sK-216.77-2064 2sK-216.77-2065 3sK-216.77-2066 4sK-216.77-2067 5sK-216.77-2018 6sK-216.77-2037 7sK-216.77-2045 8sK-216.77-2046 9sK-216.77-2068 10sK-216.77-2069
Open Faced Grid 11sK-216.77-2070 12sK-216.77-2071

Matched to AluminumMatched to Steel

Creep CodePart No.Part No.

1sK-216.77-2072 2sK-216.77-2073 3sK-216.77-2074 4sK-216.77-2109 5sK-216.77-2110 6sK-216.77-2075 7sK-216.77-2076 8sK-216.77-2077 9sK-216.77-2078 10sK-216.77-2079
Encapsulated Grid 11sK-216.77-2080 12sK-216.77-2081 Preferred type, available with short delivery-timeStick-on option available on request Other creep codes available on request

18 Strain Gages for Transducer Manufacturers
