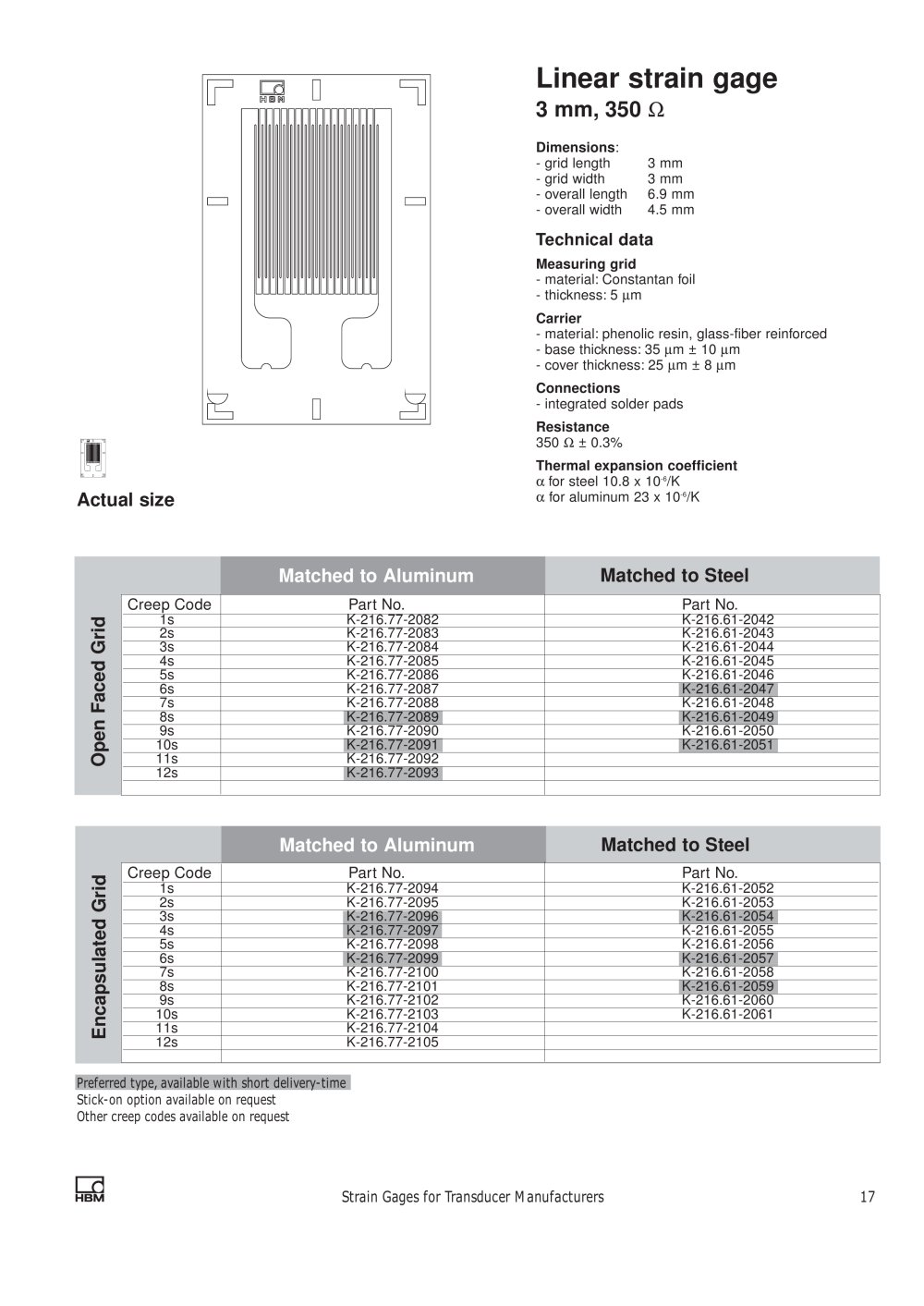

Linear strain gage
3 mm,350 Ω
Dimensions :- grid length3 mm - grid width3 mm - overall length6.9 mm- overall width4.5 mmTechnical data
Measuring grid µ m - material:Constantan foil - thickness:5 Carrier µ m ±10 µ m- cover thickness:25 - material:phenolic resin, glass-fiber reinforced - base thickness:35 µ m ±8 µ m Connections - integrated solder pads Resistance 350 Ω ±0.3% Thermal expansion coefficient α for steel 10.8 x 10-6 /K
Actual size
α for aluminum 23 x 10-6 /K
Matched to AluminumMatched to Steel
Creep CodePart No.Part No.
1sK-216.77-2082K-216.61-2042 2sK-216.77-2083K-216.61-2043 3sK-216.77-2084K-216.61-2044 4sK-216.77-2085K-216.61-2045 5sK-216.77-2086K-216.61-2046 6sK-216.77-2087K-216.61-2047 7sK-216.77-2088K-216.61-2048 8sK-216.77-2089K-216.61-2049 9sK-216.77-2090K-216.61-2050 10sK-216.77-2091K-216.61-2051Open Faced Grid 11sK-216.77-2092 12sK-216.77-2093
