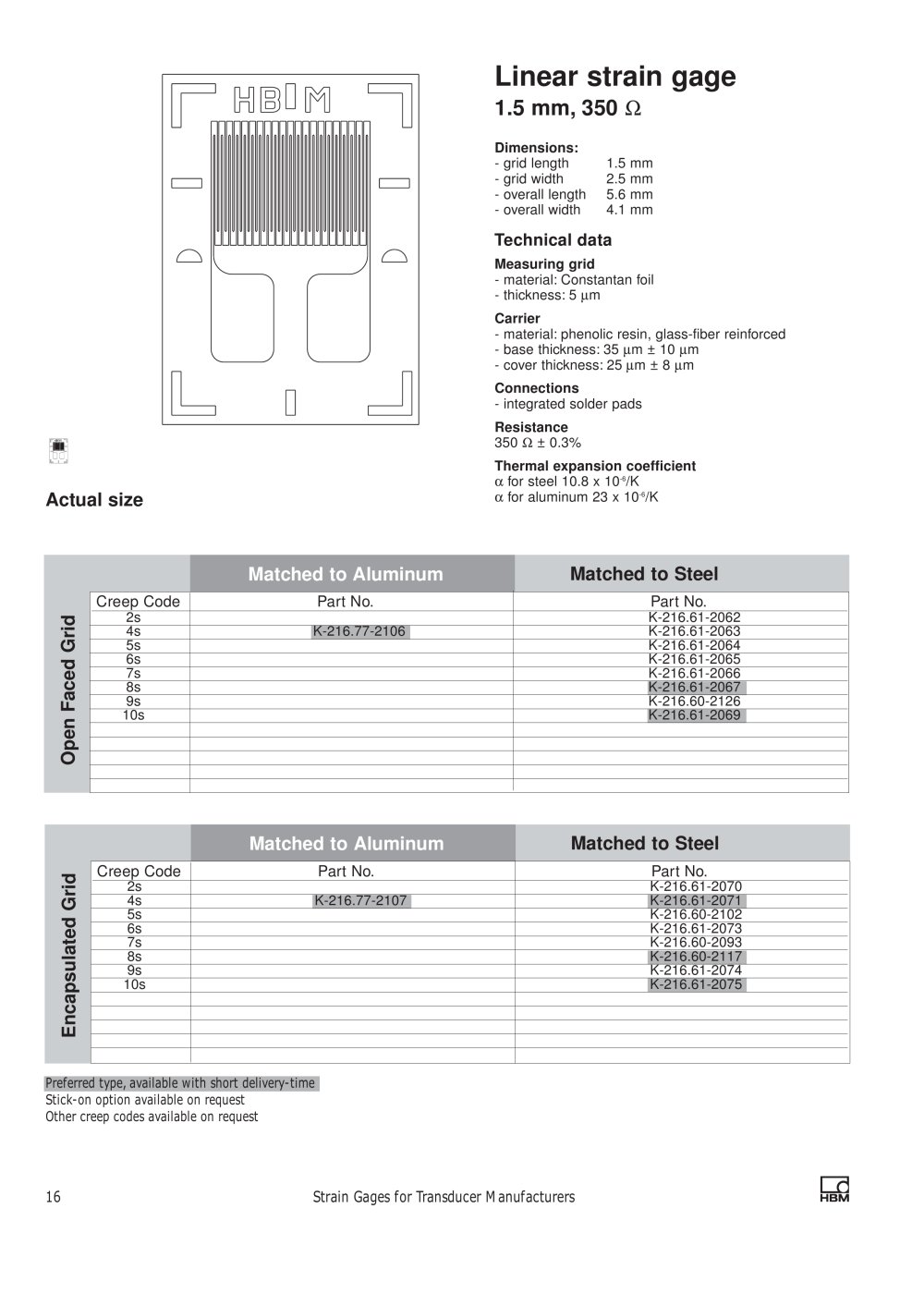

Linear strain gage
1.5 mm,350 Ω
Dimensions: - grid length1.5 mm - grid width2.5 mm - overall length5.6 mm - overall width4.1 mmTechnical data
µ m - material:Constantan foil - thickness:5 Measuring grid Carrier - material:phenolic resin, glass-fiber reinforced- base thickness:35 µ m ±10 µ m- cover thickness:25 µ m ±8 µ m Connections - integrated solder pads Resistance 350 Ω ±0.3% Thermal expansion coefficient α for steel 10.8 x 10-6 /K
Actual size
α for aluminum 23 x 10-6 /K
Matched to AluminumMatched to Steel
Creep CodePart No.Part No.
2sK-216.61-2062 4sK-216.77-2106K-216.61-2063 5sK-216.61-2064 6sK-216.61-2065 7sK-216.61-2066 8sK-216.61-2067 9sK-216.60-2126 10sK-216.61-2069Open Faced Grid
Matched to AluminumMatched to Steel
Creep CodePart No.Part No.
2sK-216.61-2070 4sK-216.77-2107K-216.61-2071 5sK-216.60-2102 6sK-216.61-2073 7sK-216.60-2093 8sK-216.60-2117 9sK-216.61-2074 10sK-216.61-2075Encapsulated Grid Preferred type, available with short delivery-timeStick-on option available on request Other creep codes available on request
