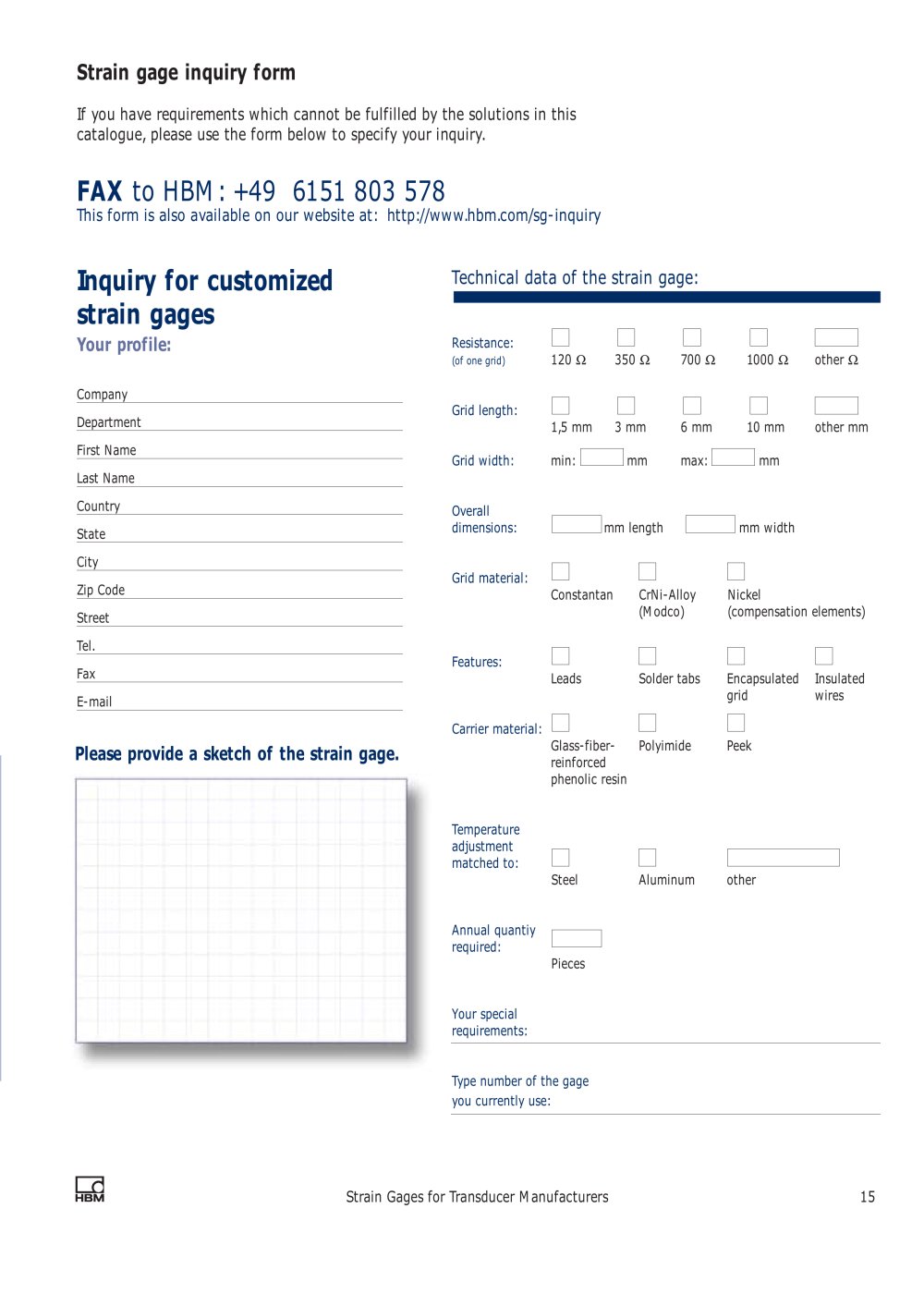

Strain gage inquiry form

If you have requirements which cannot be fulfilled by the solutions in this catalogue, please use the form below to specify your inquiry.

Strain Gages for Transducer Manufacturers - 6017 FAX

This form is also available on our website at: http://www.hbm.com/sg-inquiry

to HBM: +49 6151 803 578 Inquiry for customizedstrain gages

Technical data of the strain gage: Your profile:

Resistance:
(of one grid) 120 Ω 350 Ω 700 Ω 1000 Ω other Ω Company Grid length:1,5 mm 3 mm 6 mm 10 mm other mmGrid width:min: mm max: mmOveralldimensions:mm length mm widthGrid material:Constantan CrNi-Alloy Nickel (Modco) (compensation elements)Features:Leads Solder tabs Encapsulated InsulatedgridwiresCarrier material:Glass-fiber- Polyimide Peek reinforced phenolic resin Temperature adjustment matched to:Steel Aluminum otherAnnual quantiy required:PiecesYour special requirements:Type number of the gage you currently use: Department First Name Last Name Country State City Zip Code Street Tel. Fax E-mail

Please provide a sketch of the strain gage.

Strain Gages for Transducer Manufacturers 15
