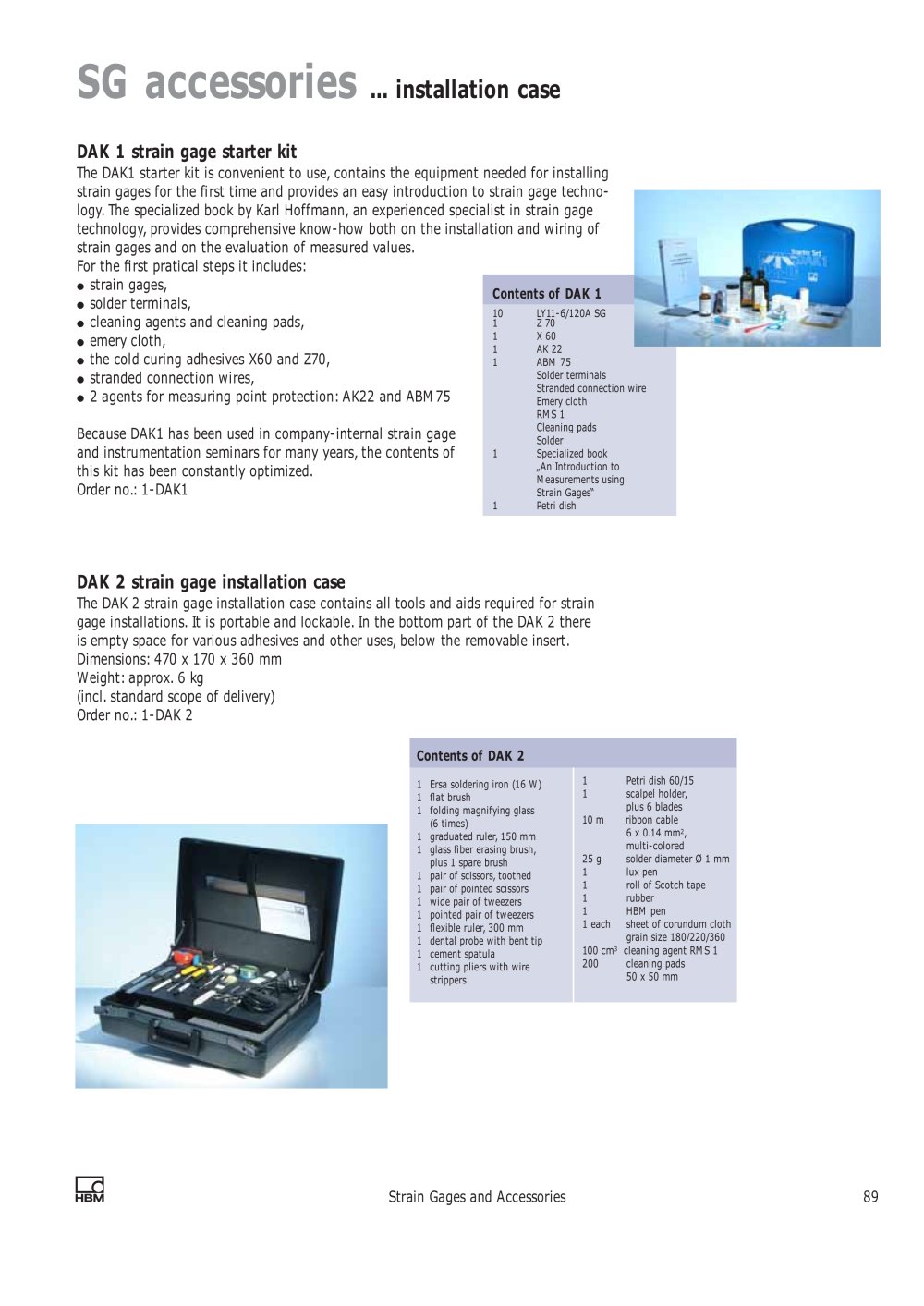

SG accessories
... installation case
DAK 1 strain gage starter kit
The DAK1 starter kit is convenient to use, contains the equipment needed for installing strain gages for the rst time and provides an easy introduction to strain gage techno- logy. The specialized book by Karl Hoffmann, an experienced specialist in strain gage technology, provides comprehensive know-how both on the installation and wiring of strain gages and on the evaluation of measured values. For the rst pratical steps it includes:ā—¸ strain gages,
ā—¸ solder terminals,
Contents of DAK 1 10LY11-6/120A SG1Z 701 60 1AK 22 1ABM 75Solder terminals Stranded connection wire Emery cloth RMS 1 Cleaning pads Solder1Specialized bookAn Introduction to Measurements using Strain Gages1 Petri dish ā—¸ cleaning agents and cleaning pads,
ā—¸ emery cloth,
ā—¸ the cold curing adhesives 60 and Z70,
ā—¸ stranded connection wires,
ā—¸ 2 agents for measuring point protection: AK22 and ABM75Because DAK1 has been used in company-internal strain gage and instrumentation seminars for many years, the contents of this kit has been constantly optimized. Order no.: 1-DAK1
DAK strain gage installation case
The DAK 2 strain gage installation case contains all tools and aids required for straingage installations. It is portable and lockable. In the bottom part of the DAK 2 there is empty space for various adhesives and other uses, below the removable insert. Dimensions: 470 x 170 x 360 mm Weight: approx. 6 kg (incl. standard scope of delivery) Order no.: 1-DAK 2Contents of DAK 1Ersa soldering iron (16 W) 1at brush 1folding magnifying glass (6 times)1graduated ruler, 150 mm 1glass ber erasing brush, plus 1 spare brush1pair of scissors, toothed 1pair of pointed scissors 1wide pair of tweezers 1pointed pair of tweezers 1exible ruler, 300 mm 1dental probe with bent tip 1cement spatula 1cutting pliers with wire strippers 1Petri dish 60/151scalpel holder, plus 6 blades10 m ribbon cable6 x 0.14 mm 2 ,multi-colored25 g solder diameter 1 mm 1lux pen 1roll of Scotch tape 1rubber 1HBM pen 1 each sheet of corundum clothgrain size 180/220/360100 cm 3 cleaning agent RMS 1200 cleaning pads50 x 50 mm 3 Strain Gages and Accessories89
