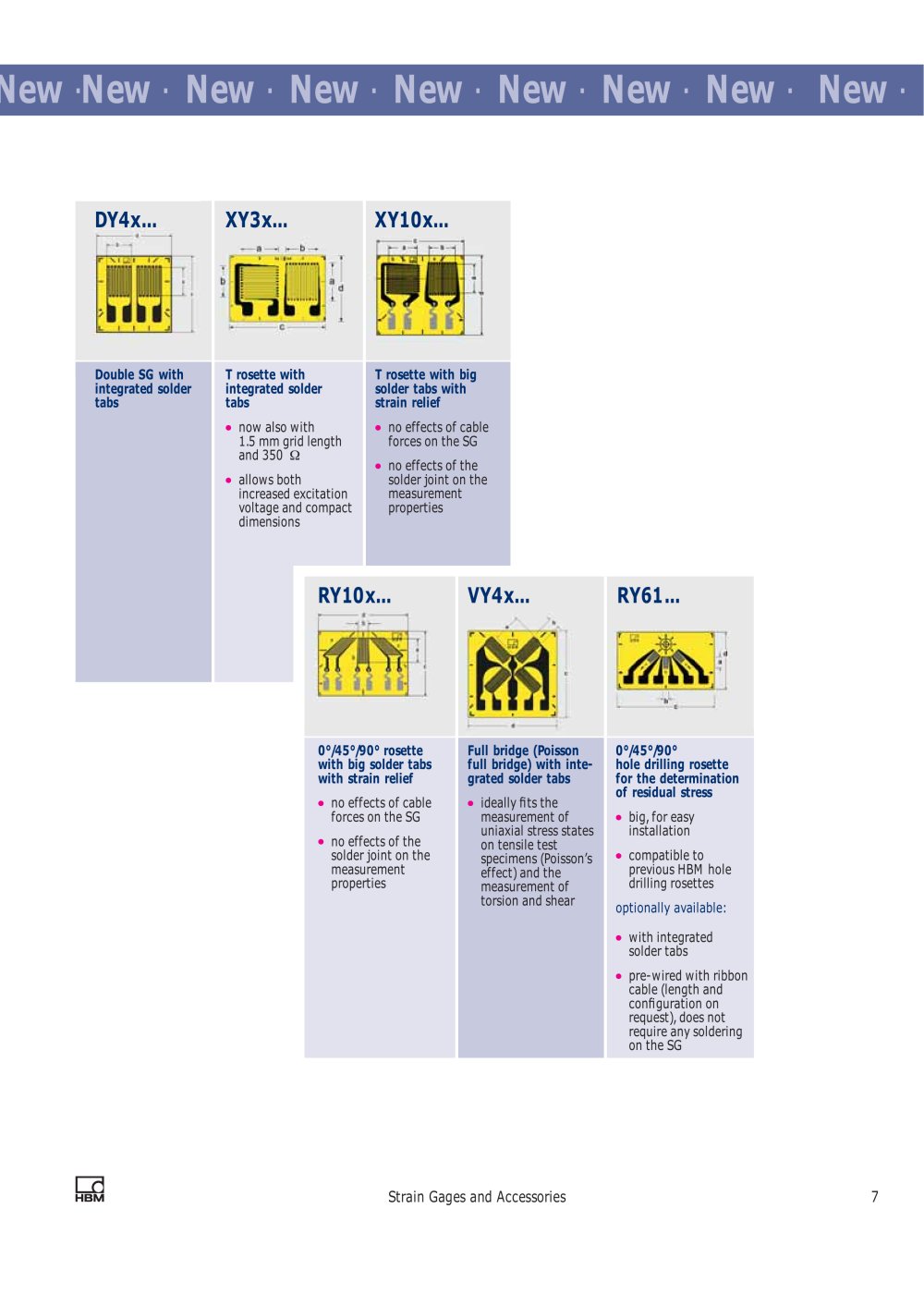

DY4x...XY10x...XY3x...
T rosette with integrated solder tabs Double SG with integrated solder tabsT rosette with big solder tabs with strain relief● now also with 1.5 mm grid length and 350 Ω
● no effects of cable forces on the SG
● no effects of the solder joint on the measurement properties
● allows both increased excitation voltage and compact dimensions
RY10x... VY4x... RY61...
0/4/0hole drilling rosette for the determination of residual stress Full bridge (Poisson full bridge) with inte- grated solder tabs 0/4/0rosette with big solder tabs with strain relief● no effects of cable forces on the SG
● ideally ts the measurement of uniaxial stress states on tensile test specimens (Poissons effect) and the measurement of torsion and shear
● big, for easy installation
● no effects of the solder joint on the measurement properties
● compatible to previous HBM hole drilling rosettes optionally available:
● with integrated solder tabs
● pre-wired with ribbon cable (length and conguration on request), does not require any soldering on the SG
