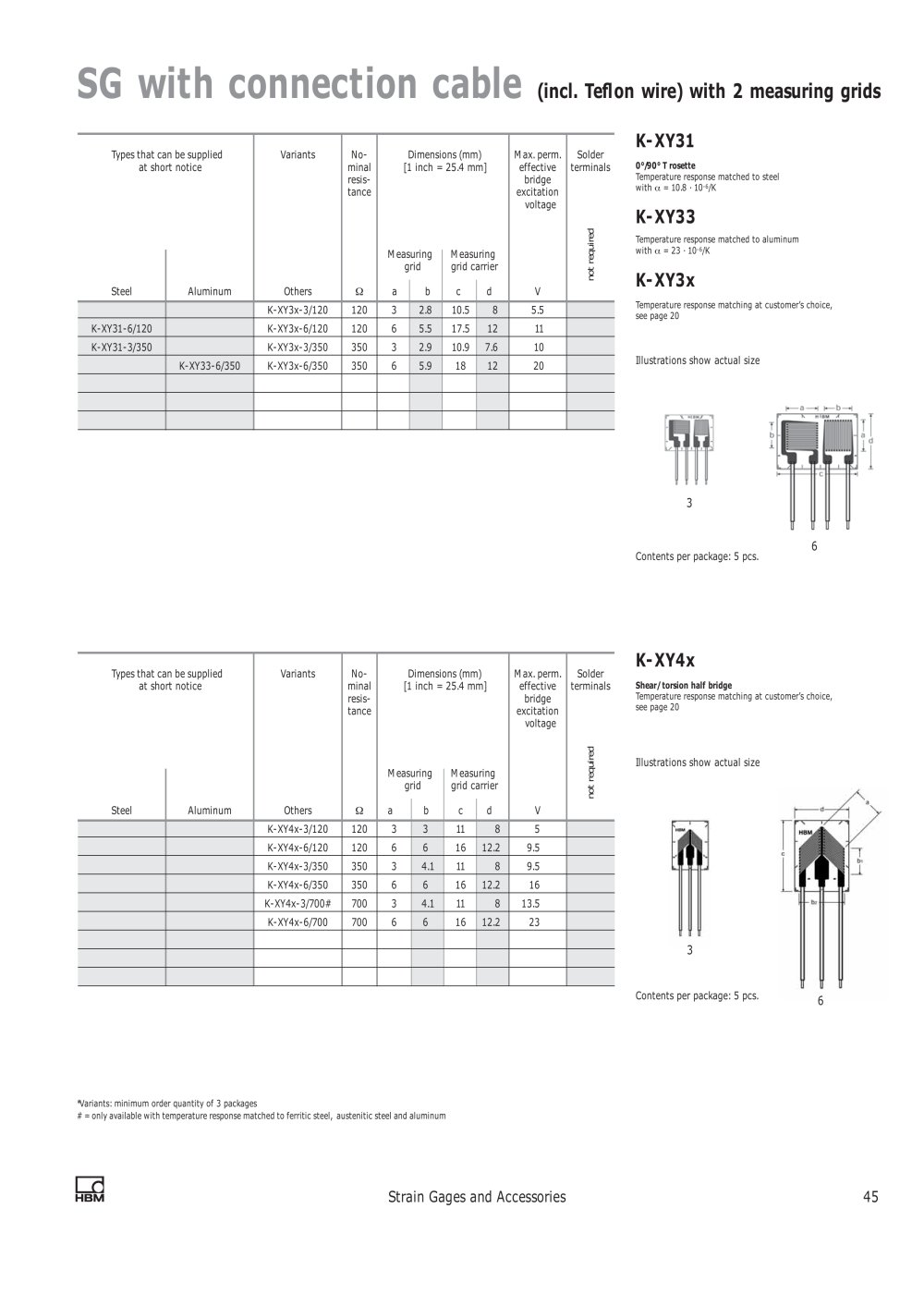

SG with connection cable

(incl. Te on wire) with measuring grids



Types that can be supplied at short notice			Vriants	Nominal resistance	Dimensions (mm) 1 inch = 25.4 mm				Max. perm. effective bridge excitation voltage	Solder terminals
					Measuring grid		Measuring grid carrier			not required
Stee	Aluminum		Cthers	Q	a		c	d	V	not required
		K-	Y3x-3/120	120	3	2.8	10.5	8	5.5
K- Y31-6/120		K-	Y3x-6/120	120	6	5.5	17.5	12	11
K- Y31-3/350		K-	Y3x-3/350	350	3	2.9	10.9	7.6	10
	K- Y33-6/350	K-	Y3x-6/350	350	6	5.9	18	12	20

K-XY31

0/ 0 Trosette

Temperature response matched to stee with a = 10.8 10-⁶/K

K-XY33

Temperature response matched to aluminum with a = 23 10⁶/K

K- XY3x

Temperature response matching at customers choice, see page 20

Illustrations show actual size

Contents per package: 5 pes.


Types that can be supplied at short notice			Vriants	Nominal resistance	Dimensions (mm) 1 inch = 25.4 mm				Max. perm. effective bridge excitation voltage	Solder terminals
					Measuring grid		Measuring grid carrier			not required
Stee	Aluminum		Cthers	Q	a	b	c	d	V
		K-	Y4x-3/120	120	3	3	11	8	5
		K-	Y4x-6/120	120	6	6	16	12.2	9.5
		K-	Y4x-3/350	350	3	4.1	11	8	9.5
		K-	Y4x-6/350	350	6	6	16	12.2	16
		K-	Y4x-3/700#	700	3	4.1	11	8	13.5
		K-	Y4x-6/700	700	6	6	16	12.2	23

K-XY4x

Shear/ torsion half bridge

Temperature response matching at customers choice, see page 20

Illustrations show actual size

¿2

■

Contents per package: 5 pes

*Variants minimum order quantity of 3 packages

# = only avalable with temperature response matched to ferritic steel, austenitic stee and aluminum
