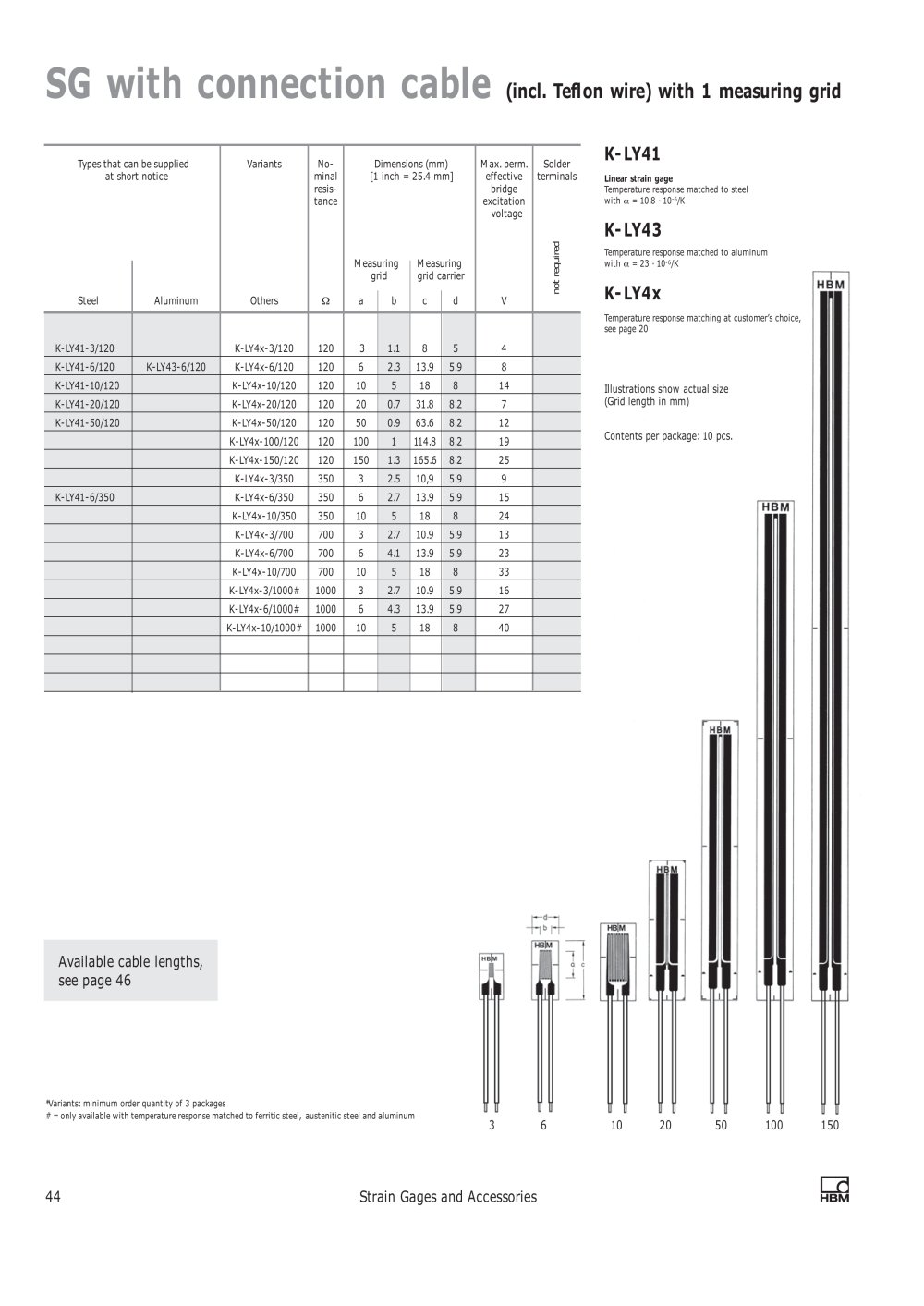

SG with connection cable

(incl. Te on wire) with 1 measuring grid


									-
Types that can be supplied at short notice		Variants	Nominal resist ance	Dimensions (mm) 1 inch = 25.4 mm				Max. perm. effective bridge excitation voltage	S' de terminals
Steel	Aluminum	Others	Q	Measuring grid a b		Measuring grid carrier cd		V	not required
K-LY41-3/120		K-LY4x-3/120	120	3	1.1	8	5	4
K-LY41-6/120	K-LY43-6/120	K-LY4x-6/120	120	6	2.3	13.9	5.9	8
K-LY41-10/120		K-LY4x-10/120	120	10	5	18	8	14
K-LY41-20/120		K-LY4x-20/120	120	20	0.7	31.8	8.2	7
K-LY41-50/120		K-LY4x-50/120	120	50	0.9	63.6	8.2	12
		K-LY4x-100/120	120	100	1	114.8	8.2	19
		K-LY4x-150/120	120	150	1.3	165.6	8.2	25
		K-LY4x-3/350	350	3	2.5	10,9	5.9	9
K-LY41-6/350		K-LY4x-6/350	350	6	2.7	13.9	5.9	15
		K-LY4x-10/350	350	10	5	18	8	24
		K-LY4x-3/700	700	3	2.7	10.9	5.9	13
		K-LY4x-6/700	700	6	4.1	13.9	5.9	23
		K-LY4x-10/700	700	10	5	18	8	33
		K-LY4x-3/1000#	1000	3	2.7	10.9	5.9	16
		K-LY4x-6/1000#	1000	6	4.3	13.9	5.9	27
		K-LY4x-10/1000#	1000	10	5	18	8	40

K-LY41

Linear strain gage

Temperature response matched to stee with a = 10.8 10⁶/K

K-LY43

Temperature response matched to aluminum with a = 23 10⁶/K

K- LY4x

Temperature response matching at customers choice, see page 20

HBM

Illustrations show actual size (Grid length in mm)

Contents per package: 10 pcs

HBM

Available cable lengths, see page 46

*Variants minimum order quantity of 3 packages

# = only avalable with temperature response matched to ferritic stee, austenitic stee and aluminum

3 6

10 20 50 100 150

j—

44 Strain Gages and Accessories hbm
