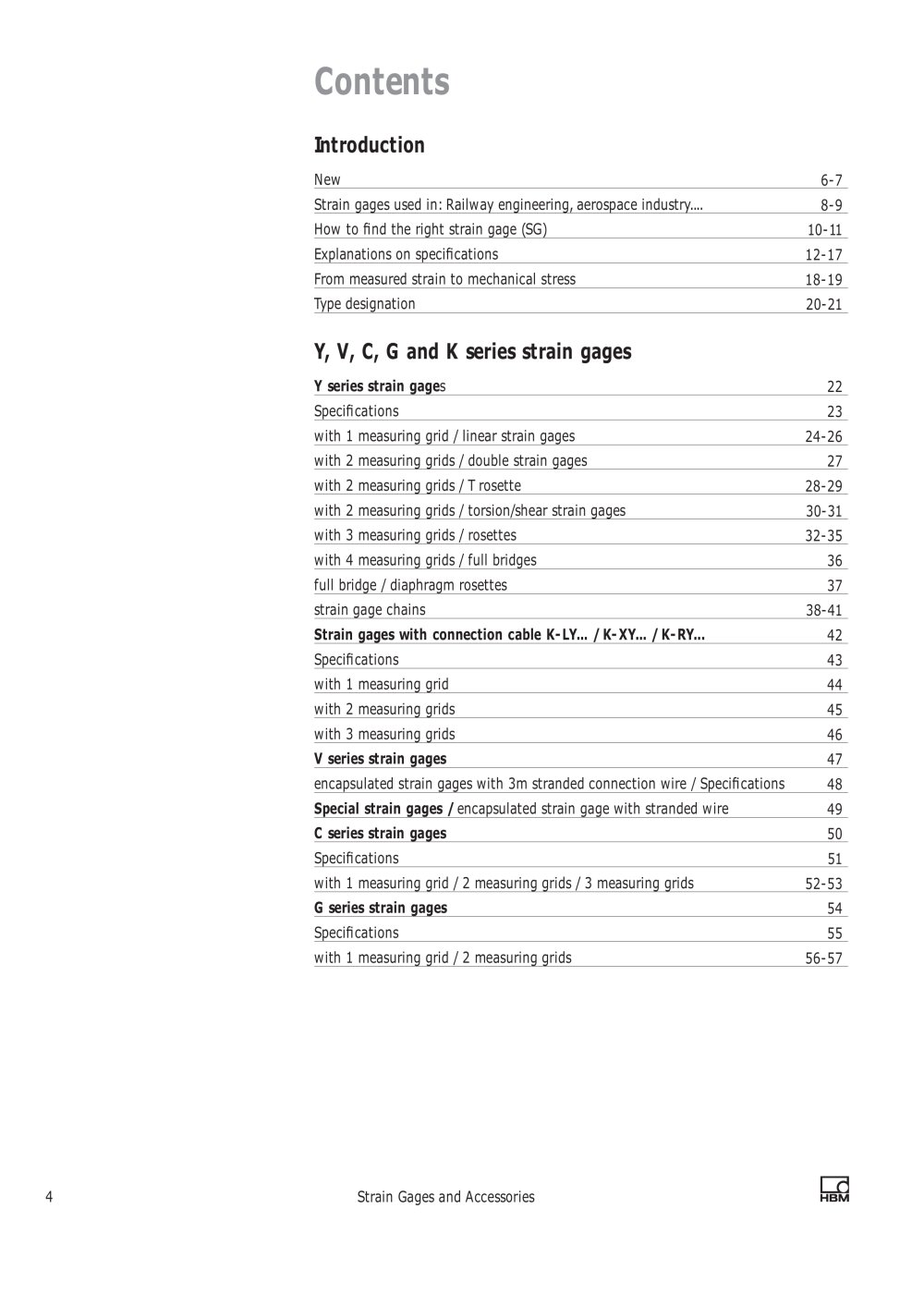

Contents

Introduction


	New	6-7
	Strain gages used in: Railway engineering, aerospace industry....	8-9
	How to nd the right strain gage (SG)	10-11
	B<planations on speci cations	12-17
	From measured strain to mechanical stress	18-19
	Type designation	20-21
	Y, V, C, G and K series strain gages
	Y series strain gages	22
	Speci cations	23
	with 1 measuring grid / linear strain gages	24-26
	with 2 measuring grids / double strain gages	27
	with 2 measuring grids / T rosette	28-29
	with 2 measuring grids / torsion/shear strain gages	30-31
	with 3 measuring grids / rosettes	32-35
	with 4 measuring grids / full bridges	36
	full bridge / diaphragm rosettes	37
	strain gage chains	38-41
	Strain gages with connection cable K-LY... / K-XY... / K-RY...	42
	Speci cations	43
	with 1 measuring grid	44
	with 2 measuring grids	45
	with 3 measuring grids	46
	V series strain gages	47
	encapsulated strain gages with 3m stranded connection wire / Speci cations	48
	Special strain gages / encapsulated strain gage with stranded wire	49
	C series strain gages	50
	Speci cations	51
	with 1 measuring grid / 2 measuring grids / 3 measuring grids	52-53
	G series strain gages	54
	Speci cations	55
	with 1 measuring grid / 2 measuring grids	56-57

St rai n Gages and Accessori es hbm
