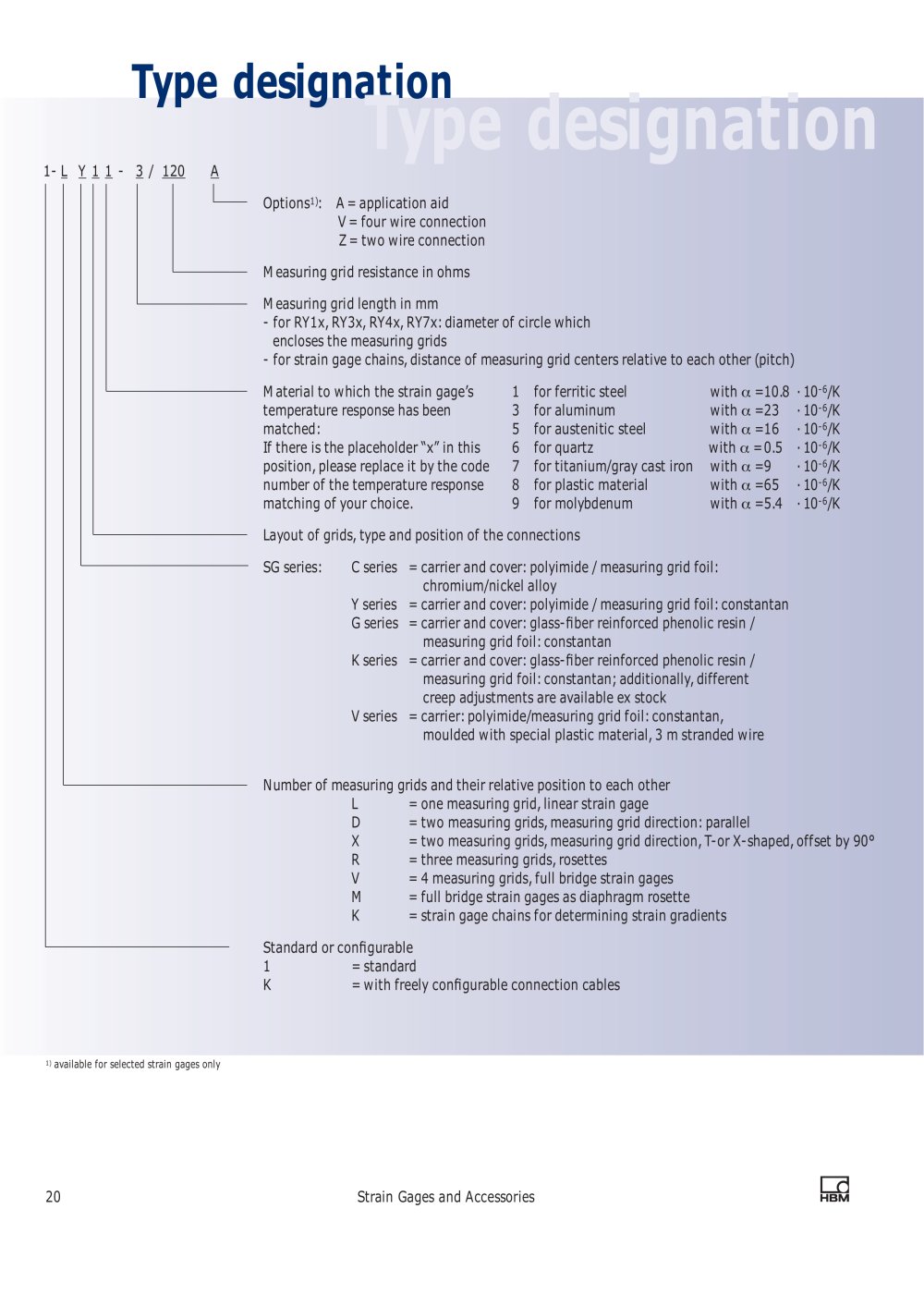

Type designation

1-L Y 1 1 -3 /120 A
1)

Strain Gages and Accessories - 6017 Type designatio n

Options : A= application aid V = four wire connectionZ= two wire connectionMeasuring grid resistance in ohms Measuring grid length in mm- for RY1x, RY3x, RY4x, RY7x: diameter of circle whichencloses the measuring grids- for strain gage chains, distance of measuring grid centers relative to each other (pitch)Material to which the strain gages1for ferritic steeltemperature response has been 3for aluminum matched:5for austenitic steel If there is the placeholder x in this6for quartz position, please replace it by the code7for titanium/gray cast iron number of the temperature response8for plastic material matching of your choice.9for molybdenumLayout of grids, type and position of the connections SG series:C series= carrier and cover: polyimide / measuring grid foil:chromium/nickel alloyY series= carrier and cover: polyimide / measuring grid foil: constantan G series= carrier and cover: glass-ber reinforced phenolic resin / measuring grid foil: constantanK series= carrier and cover: glass-ber reinforced phenolic resin / measuring grid foil: constantan; additionally, different creep adjustments are available ex stockV series= carrier: polyimide/measuring grid foil: constantan,moulded with special plastic material, 3 m stranded wireNumber of measuring grids and their relative position to each otherL= one measuring grid, linear strain gage D= two measuring grids, measuring grid direction: parallel= two measuring grids, measuring grid direction, T-or -shaped, offset by 90R= three measuring grids, rosettes V= 4 measuring grids, full bridge strain gages M= full bridge strain gages as diaphragm rosette K= strain gage chains for determining strain gradientsStandard or congurable1= standard K= with freely congurable connection cables with α =10.8 10
-6 /Kwith α =23 10
-6 /Kwith α =16 10
-6 /Kwith α =0.5 10
-6 /Kwith α =9 10
-6 /Kwith α =65 10
-6 /Kwith α =5.4 10
-6 /K
1) available for selected strain gages only 20Strain Gages and Accessories
