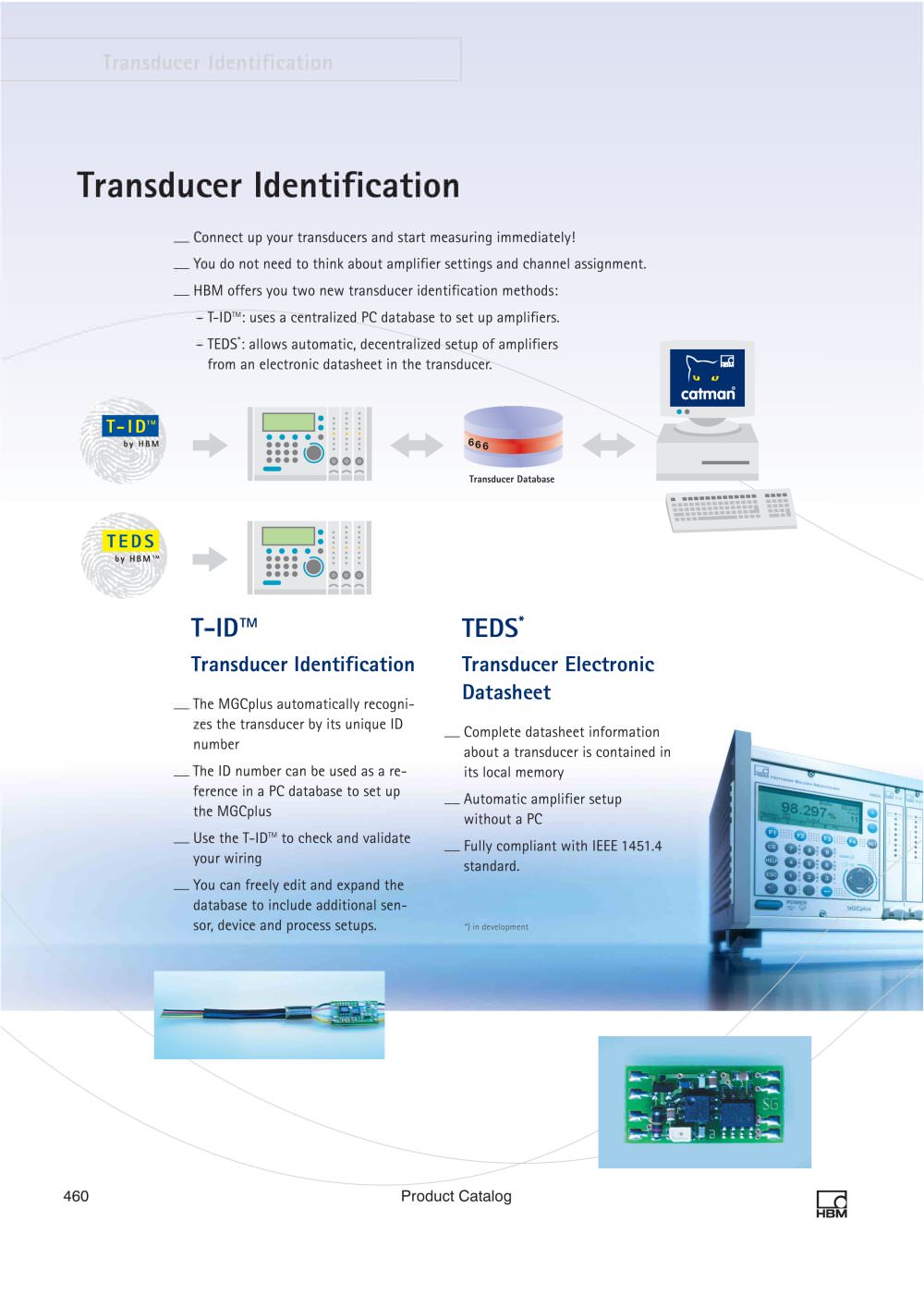

Transducer Identification

Transducer Identification

TM : uses a centralized PC database to set up amplifiers. – TEDS
* : allows automatic, decentralized setup of amplifiers from an electronic datasheet in the transducer.
Transducer Database

T-ID

TM

TEDS

*

Transducer Identification Transducer ElectronicDatasheet

__The MGCplus automatically recogni-zes the transducer by its unique ID number__The ID number can be used as a re-ference in a PC database to set up the MGCplus__Use the T-ID __Complete datasheet informationabout a transducer is contained in its local memory __Automatic amplifier setup without a PC__Fully compliant with IEEE1451.4standard. __Connect up your transducers and start measuring immediately! __You do not need to think about amplifier settings and channel assignment.__HBM offers you two new transducer identification methods: – T-ID
TM to check and validateyour wiring__You can freely edit and expand thedatabase to include additional sen- sor, device and process setups.
*) in development 460Product Catalog
