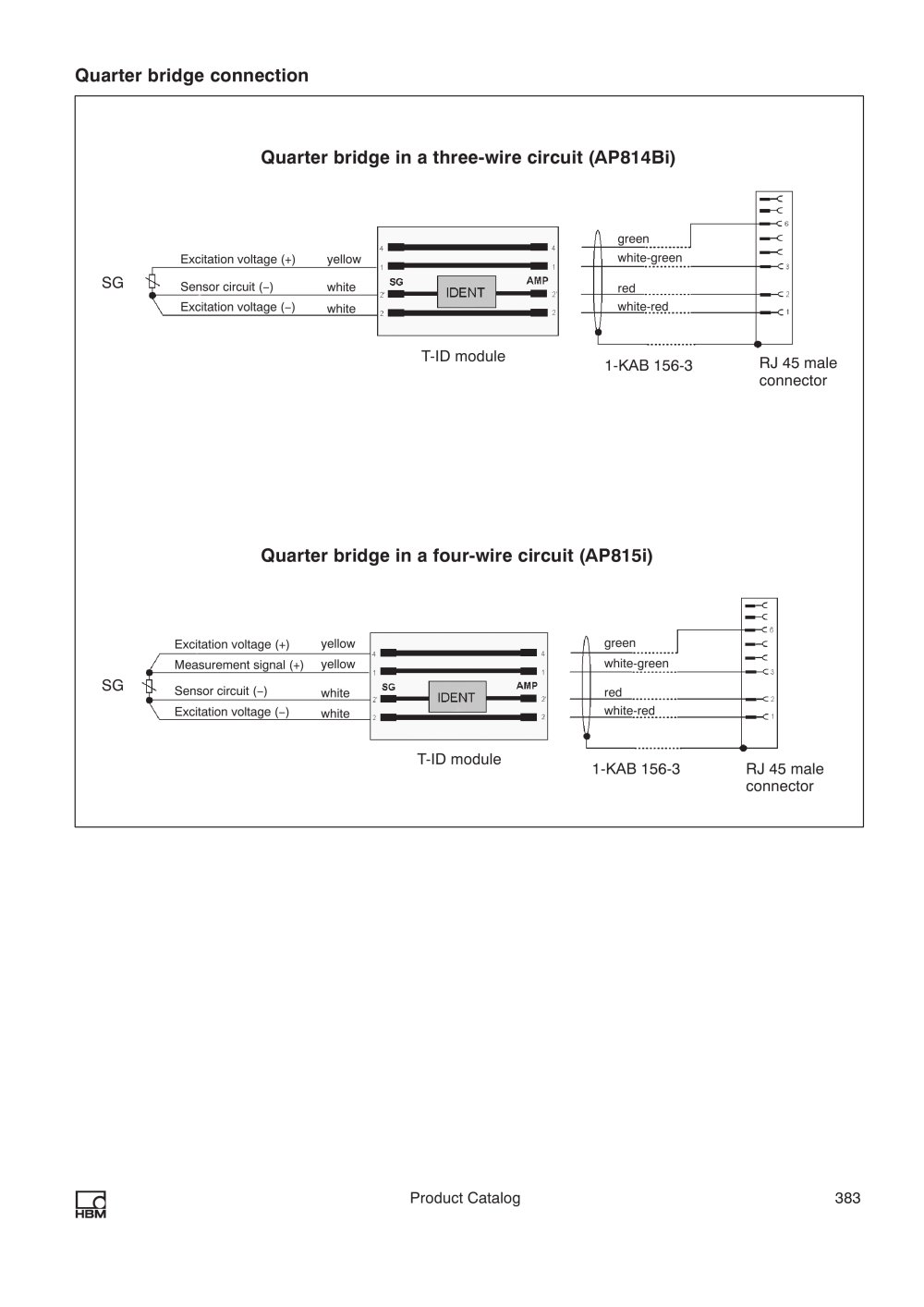

Quarter industrial bridge connection

Quarter bridge in a three-wire circuit (AP814Bi)


	Excitation voltage (+) yellow
	Excitation voltage (+) yellow
	^ Sensor circuit (-) white	EG	IDENT	AMP
	\ Excitation voltage (-) white	EG	IDENT	AMP

green

white-green

SG

red

white-red

T-ID module

RJ 45 male connector

1-KAB 156-3

Quarter bridge in a four-wire circuit (AP815i)


	Excitation voltage (+) yellow					green
	/ Measurement signal (+) yellow					white-green
	[_t- Sensor circuit (-) _white	SG	IDENT	AMP		red
	\ Excitation voltage (-) white	SG	IDENT	AMP		white-red
					1

SG

T-ID module

1-KAB 156-3

RJ 45 male connector

Product Catalog

383
