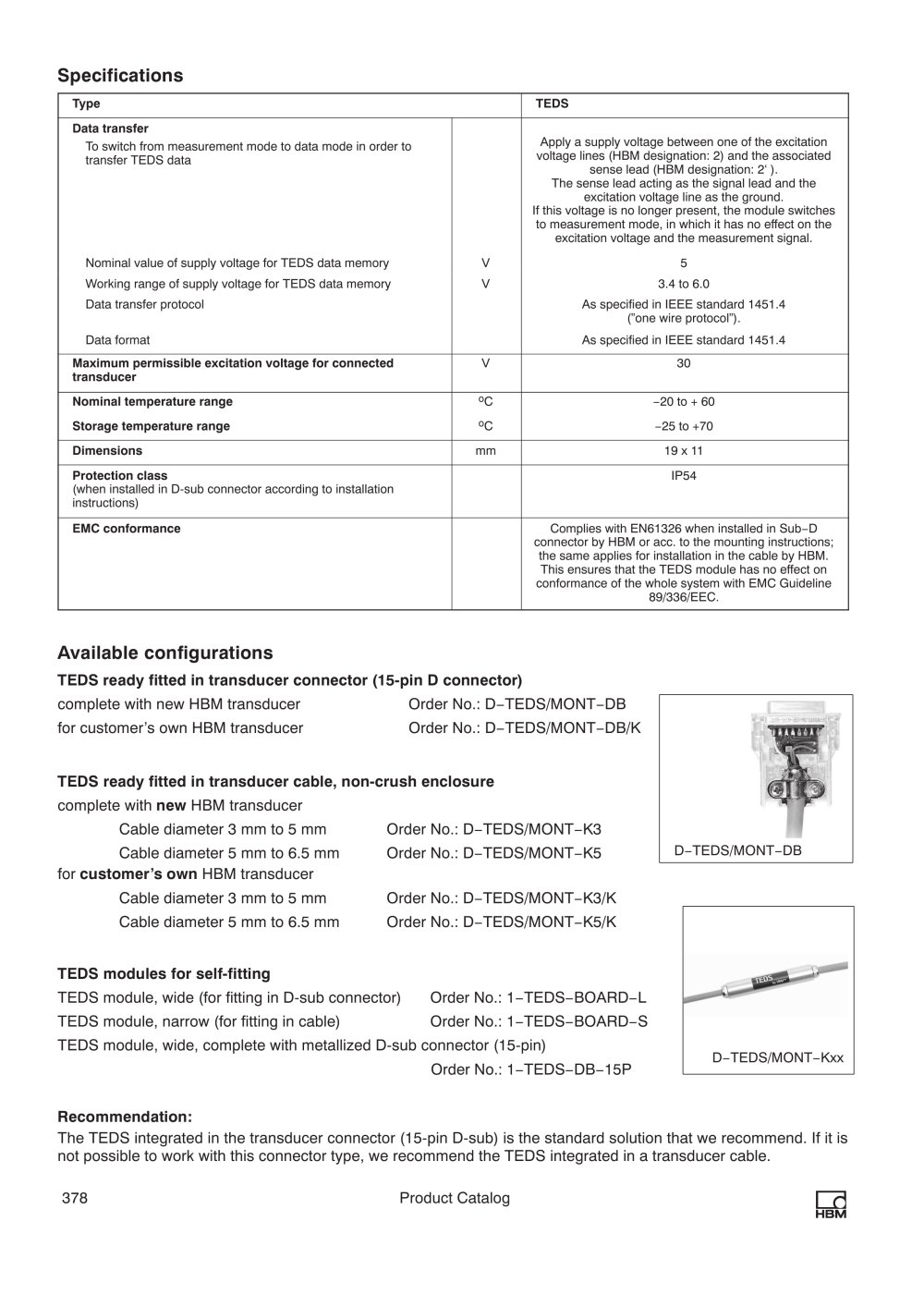

Specifications

Type TEDS Data transfer To switch from measurement mode to data mode in order totransfer TEDS data Apply a supply voltage between one of the excitationvoltage lines (HBM designation: 2) and the associatedsense lead (HBM designation: 2‘ ).The sense lead acting as the signal lead and theexcitation voltage line as the ground.If this voltage is no longer present, the module switchesto measurement mode, in which it has no effect on theexcitation voltage and the measurement signal. Nominal value of supply voltage for TEDS data memory V 5 Working range of supply voltage for TEDS data memory V 3.4 to 6.0 Data transfer protocol As specified in IEEE standard 1451.4(”one wire protocol”). Data format As specified in IEEE standard 1451.4 Maximum permissible excitation voltage for connectedtransducer V 30 Nominal temperature range o C ï 20 to + 60 Storage temperature range o C ï 25 to +70 Dimensions mm 19 x 11 Protection class IP54 (when installed in D sub connector according to installation instructions) EMC conformance Complies with EN61326 when installed in Sub ï Dconnector by HBM or acc. to the mounting instructions;the same applies for installation in the cable by HBM.This ensures that the TEDS module has no effect onconformance of the whole system with EMC Guideline89/336/EEC.

Available configurations

TEDS ready fitted in transducer connector (15-pin D connector) complete with new HBM transducerOrder No.: D ï TEDS/MONT ï DBfor customer’s own HBM transducerOrder No.: D ï TEDS/MONT ï DB/K TEDS ready fitted in transducer cable, non-crush enclosure complete with new HBM transducerCable diameter 3 mm to 5 mmOrder No.: D ï TEDS/MONT ï K3Cable diameter 5 mm to 6.5 mmOrder No.: D ï TEDS/MONT ï K5for
D ï TEDS/MONT ï DB customer’s own HBM transducerCable diameter 3 mm to 5 mmOrder No.: D ï TEDS/MONT ï K3/KCable diameter 5 mm to 6.5 mmOrder No.: D ï TEDS/MONT ï K5/K TEDS modules for self-fitting TEDS module, wide (for fitting in D-sub connector) Order No.: 1 ï TEDS ï BOARD ï LTEDS module, narrow (for fitting in cable) Order No.: 1 ï TEDS ï BOARD ï STEDS module, wide, complete with metallized D-sub connector (15-pin)Order No.: 1
D ï TEDS/MONT ï Kxx ï TEDS ï DB ï 15P Recommendation: The TEDS integrated in the transducer connector (15-pin D-sub) is the standard solution that we recommend. If it isnot possible to work with this connector type, we recommend the TEDS integrated in a transducer cable. 378Product Catalog
