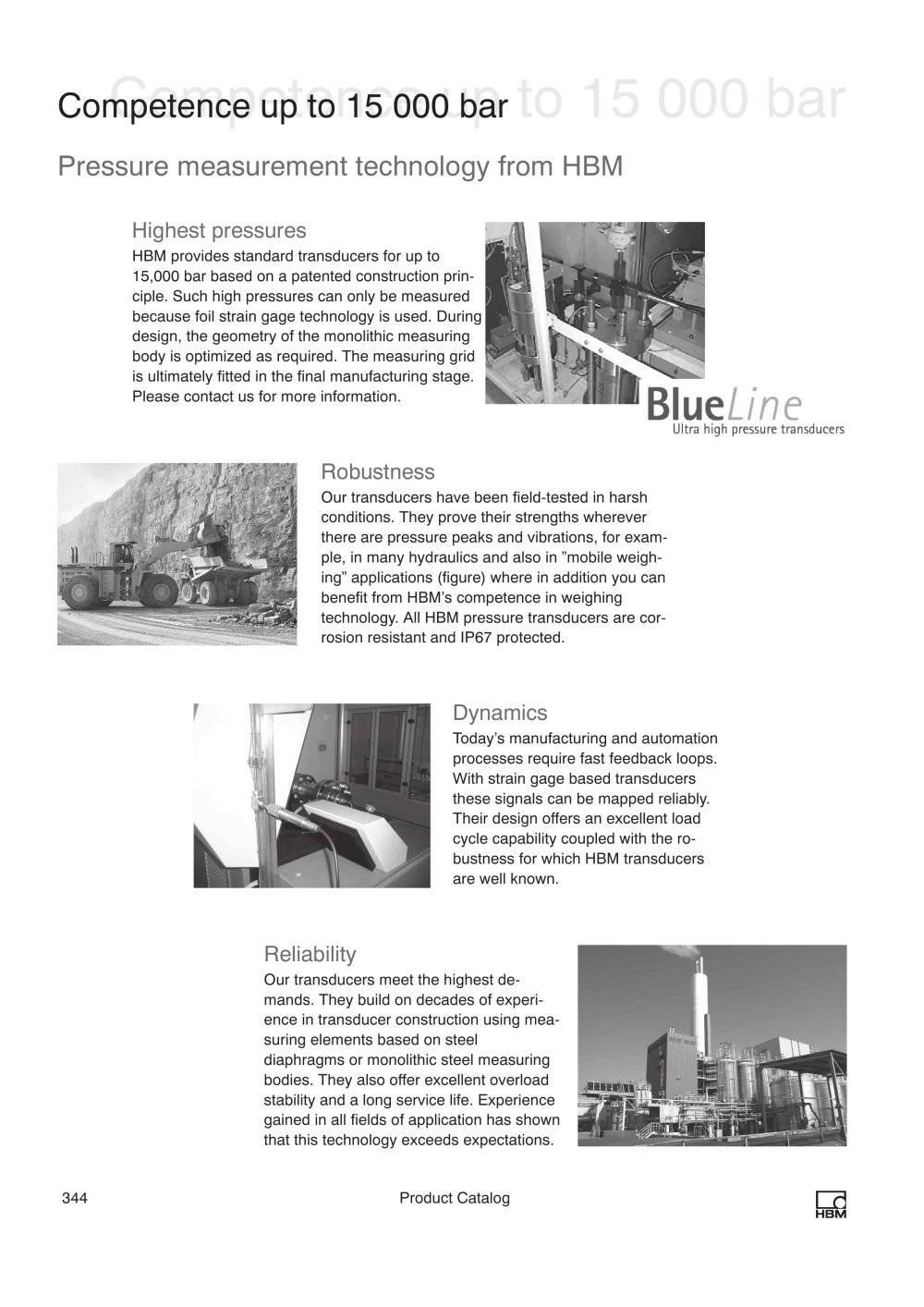

Competence up to 15 000 bar
Competence up to 15 000 bar
Highest pressures
HBM provides standard
transducers for up to15,000 bar based on a patented construction prin-ciple. Such high pressures can only be measuredbecause foil
strain gage technology is used. Duringdesign, the geometry of the monolithic measuringbody is optimized as required. The measuring grid
is ultimately fitted in the final manufacturing stage.Please contact us for more information.
Robustness
Our transducers have been field-tested in harshconditions. They prove their strengths whereverthere are pressure peaks and vibrations, for exam-ple, in many hydraulics and also in ”mobile weigh-ing” applications (figure) where in addition you canbenefit from HBM’s competence in weighing
technology. All HBM
pressure transducers are cor-rosion resistant and IP67 protected.
Dynamics
Today’s manufacturing and automationprocesses require fast feedback loops.With strain gage based transducersthese signals can be mapped reliably.Their design offers an excellent loadcycle capability coupled with the ro-
bustness for which HBM transducersare well known.
Reliability
Our transducers meet the highest de-mands. They build on decades of experi-ence in transducer construction using mea-suring elements based on steeldiaphragms or monolithic steel measuringbodies. They also offer excellent overload
stability and a long service life. Experiencegained in all fields of application has shownthat this technology exceeds expectations.344Product Catalog
