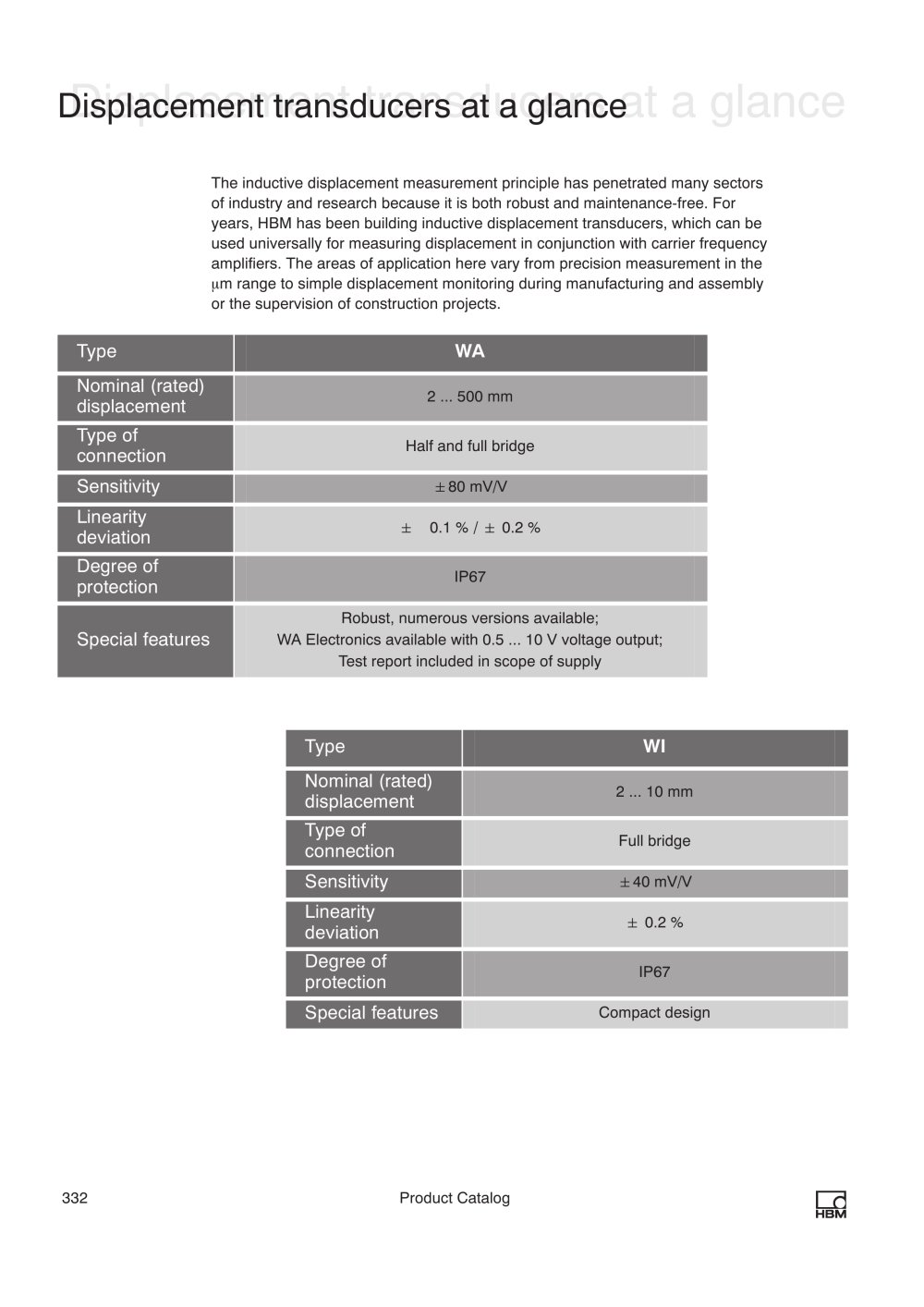

Displacement transducers at a glance
The inductive displacement measurement principle has penetrated many sectorsof industry and research because it is both robust and maintenance-free. Foryears, HBM has been building inductive displacement transducers, which can beused universally for measuring displacement in conjunction with carrier frequencyamplifiers. The areas of application here vary from precision measurement in the m m range to simple displacement monitoring during manufacturing and assemblyor the supervision of construction projects.
Type WA Nominal (rated)displacement
2 ... 500 mm
Type of connection
Half and full bridge
Sensitivity
80 mV/V
Linearity deviation
0.1 % / 0.2 %
Degree of protection
IP67 Robust, numerous versions available;WA Electronics available with 0.5 ... 10 V voltage output;Test report included in scope of supply
Special features Type WI Nominal (rated)displacement
2 ... 10 mm
Type of connection
Full bridge
Sensitivity
40 mV/V
Linearity deviation
0.2 %
Degree of protection
IP67
Special features
Compact design 332Product Catalog
