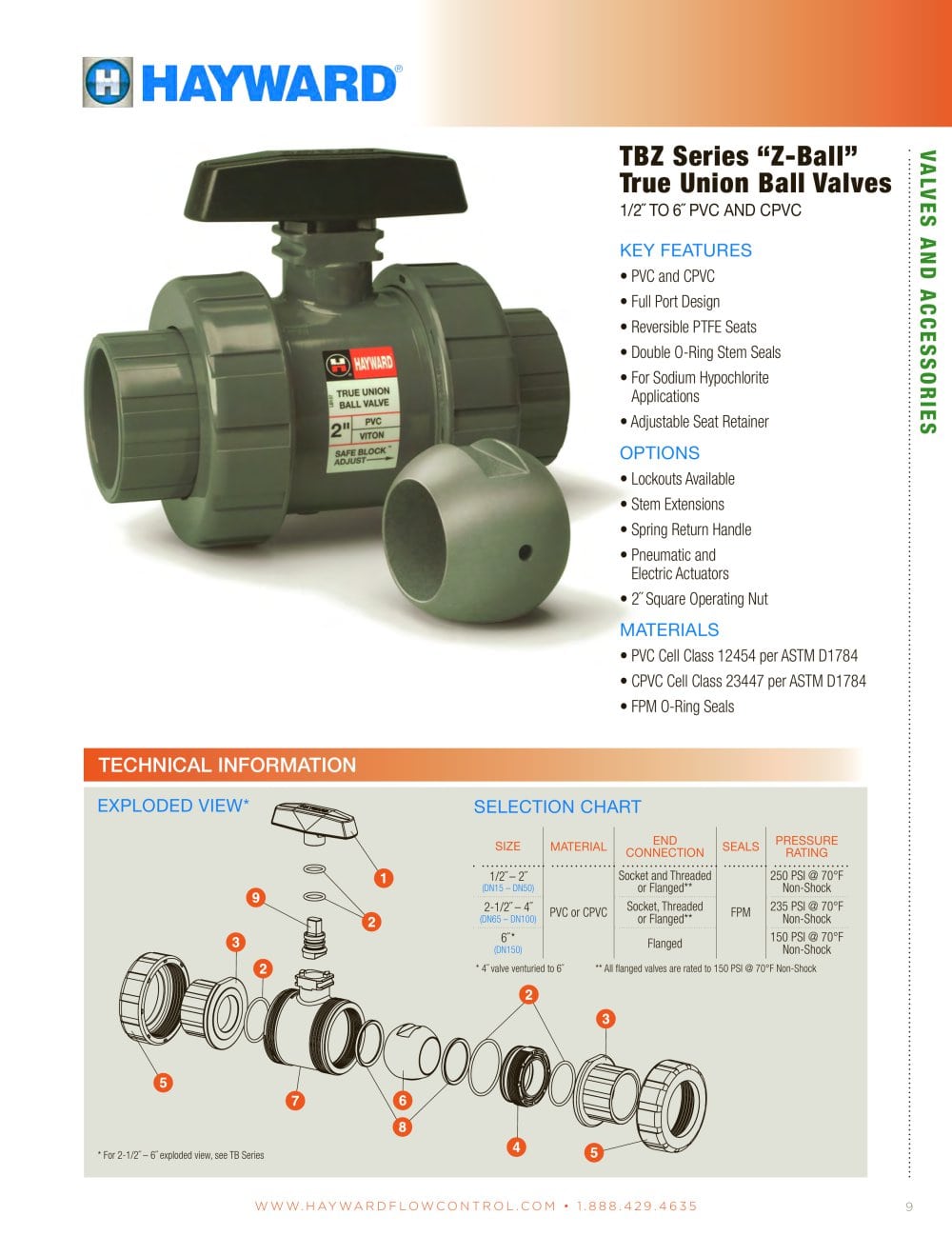

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Arial", sans-serif; } .font1 { font:12.00pt "Arial", sans-serif; } .font2 { font:5.00pt "Tahoma", sans-serif; } .font3 { font:7.00pt "Tahoma", sans-serif; } .font4 { font:8.00pt "Tahoma", sans-serif; } .font5 { font:11.00pt "Tahoma", sans-serif; } .font6 { font:15.00pt "Tahoma", sans-serif; } .font7 { font:25.00pt "Tahoma", sans-serif; } .font8 { font:31.00pt "Tahoma", sans-serif; } Ol H AYWARD TBZ Séries "Z-Ball" True Union Bail Valves 1/2" TO 6" PVC AND CPVC key features • PVC and CPVC • Full Port Design • Réversible PTFE Seats • Double O-Ring Stem Seals • For Sodium Hypochlorite Applications • Adjustable Seat Retainer options • Lockouts Available • Stem Extensions • Spring Return Handle • Pneumatic and Electric Actuators • 2" Square Operating Nut materials • PVC Cell Class 12454 per ASTM D1784 • CPVC Cell Class 23447 per ASTM D1784 • FPM O-Ring Seals TEOHNIOAL INFORMATION exploded view* sélection chart * 4" valve venturied to 6" size material end seals pressure connection rating 1/2" - 2" (DN15 - DN50) Socket and Threaded or Flanged** 250 PSI @ 70°F Non-Shock 2-1/2" - 4" (DN63 - DN100) PVC or CPVC Socket, Threaded or Flanged** FPM 235 PSI @ 70°F Non-Shock 6" * (DN150) Flanged 150 PSI @ 70°F Non-Shock ** All flanged valves are rated to 150 PSI @ 70°F Non-Shock * For 2-1/2" - 6" exploded view, see TB Series WWW.HAYWARDFLOWCONTROL.COM • 1.888.429.4635 9
