HAYWARD

Flow Control Systems

BALLVALVES ® ®

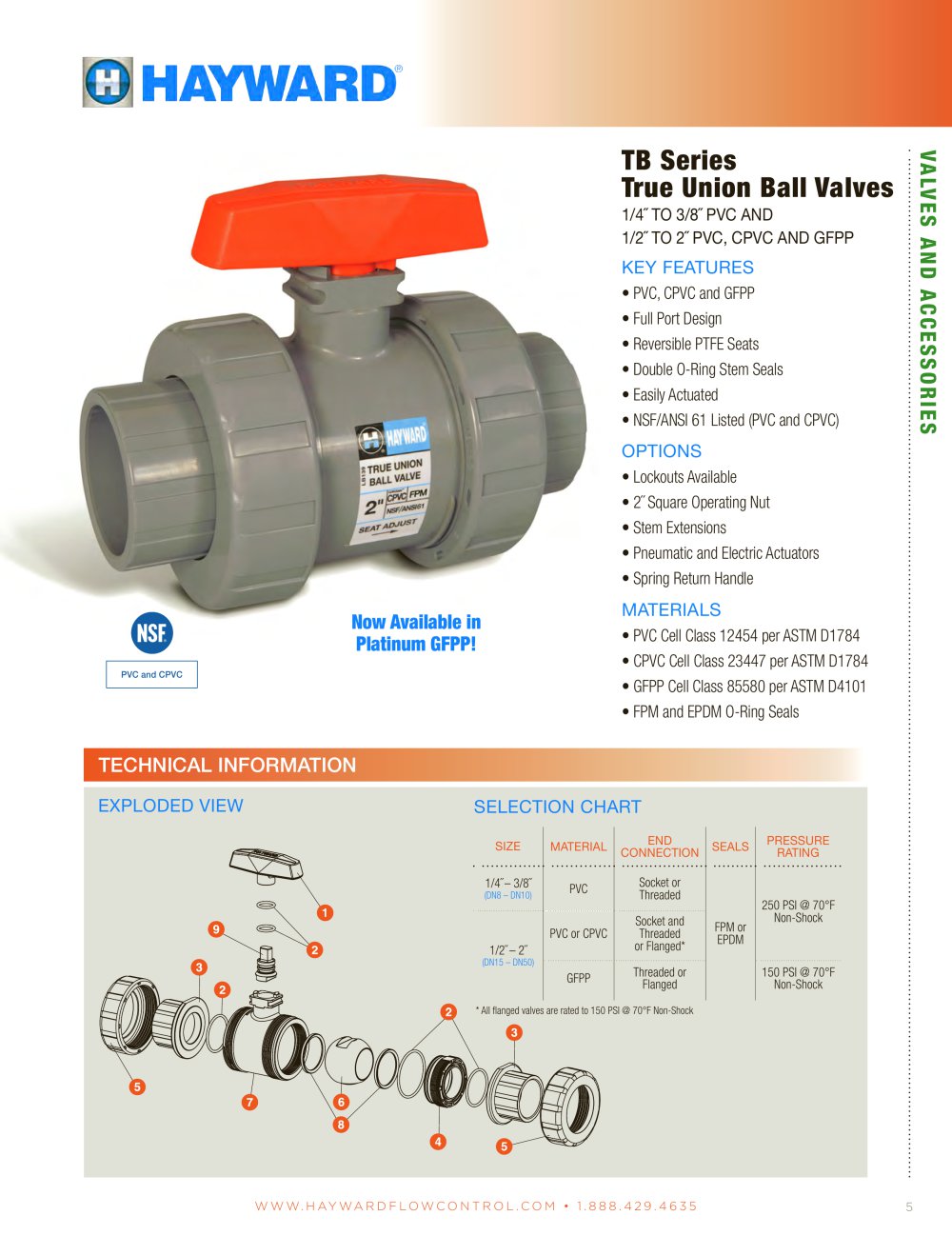

True Union Ball Valves

1/4� to 6� - PVC,Corzan

®

CPVC,PPL

Rugged, Heavy Wall PlasticConstruction
Stands up to the most aggressive of appli-cations.Hayward True Union Ball Valves can take the day to day abuse of industrial service and continue to function. True Union Design
This makes these valves very easy to maintain by allowing for easy removal from a piping system without breaking down piping connections.Just unscrew the two assembly nuts and lift the valve body out of the line. Advanced Design Features
Hayward True Union Ball Valves are superi- or performers.A fine-pitch seal retainer thread allows for accurate compensation for seat wear.Reversible seats make it easy to get a damaged valve back in service. Should the seats become damaged they need only to be removed, turned over, and reinstalled to put the valve back on line. These valves feature a double o-ring stem seal for twice the leakage protection of valves with only a single stem seal. Solid Actuator MountingDesign
For rock-solid actuator mounting, the valveincorporates a unique design that allows the actuator mounting bracket to mount directly to the valve without the need for glued or clamped-on mounting pads.This assures proper alignment of the actuator to the valve without creating any damaging side loads to cause premature stem seal failure. With this design, the valve can easily be adapted to manual operation – should the need ever arise.

Features Options

•Full Port Design•Reversible PTFE Seats•Easy Maintenance•FPM or EPDM Seals•Easily Automated•Double O-Ring Stem Seals•Adjustable Seat Retainer •Stem Extensions•Lockouts• Spring Return Handle• Pneumatic Actuators• Electric Actuators• 2Ë� Square Operating Nuts• Drilled Balls for Sodium Hypochlorite Service Never a Problem withCorrosion
Corzan ® is a registered trademark of Noveon, Inc. Because of the valves’all plastic construc-tion, they will never rust or corrode – and they can survive corrosive environments without the need for painting or expensive epoxy coating.

1-888-429-4635 (1-888-HAYINDL)

5
