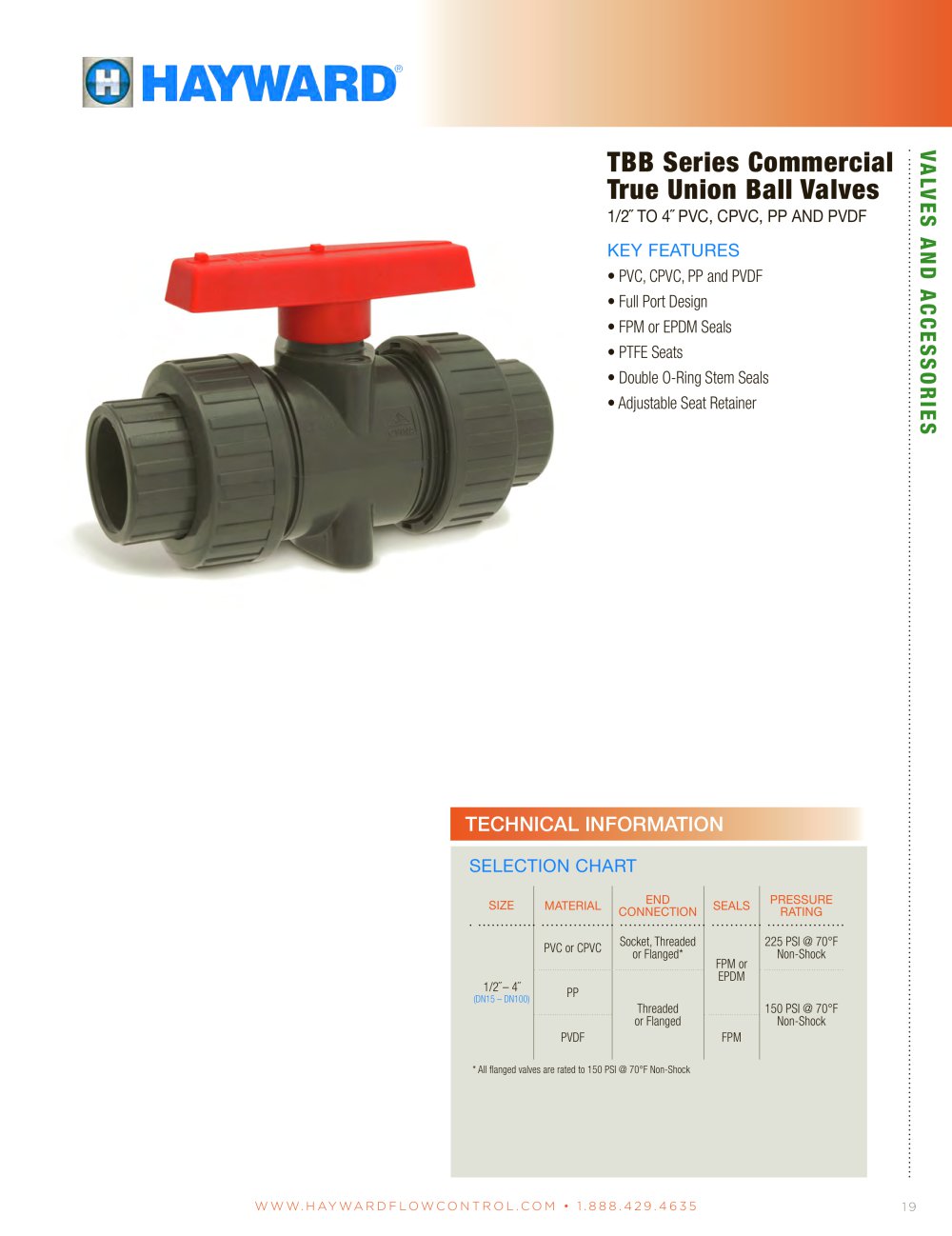

17274 - Hayward Flow Control IPG Catalog.indd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Microsoft Sans Serif", sans-serif; } .font1 { font:11.00pt "Microsoft Sans Serif", sans-serif; } .font2 { font:4.40pt "Tahoma", sans-serif; } .font3 { font:5.00pt "Tahoma", sans-serif; } .font4 { font:7.00pt "Tahoma", sans-serif; } .font5 { font:8.00pt "Tahoma", sans-serif; } .font6 { font:11.00pt "Tahoma", sans-serif; } .font7 { font:15.00pt "Tahoma", sans-serif; } .font8 { font:31.00pt "Tahoma", sans-serif; } ©I HAYWARD TBB Séries True Union Commercial Bail Valves 1/2" TO 4" PVC, CPVC, PP AND PVDF KEY FEATuREs • PVC, CPVC, PP and PVDF • Full Port Design • FPM or EPDM Seals • PTFE Seats • Double O-Ring Stem Seals • Adjustable Seat Retainer TEOHNIOAL INFORMATION SELECTION CHART size material end connection seals pressure rating 1/2" - 4" (DN15 - DN100) PVC or CPVC Socket, Threaded or Flanged* FPM or EPDM 225 PSI @ 70°F Non-Shock 1/2" - 4" (DN15 - DN100) PP Threaded FPM 150 PSI @ 70°F Non-Shock 1/2" - 4" (DN15 - DN100) PVDF or Flanged * All flanged vaves are rated to 150 PSI @ 70°F Non-Shock WWW.HAYWARDFLOWCONTROL.COM • 1.888.429.4635 19
