THE SYSTEM IS NOW IN OPERATION. SOLIDS WHICH ARE COLLECTED IN THE FILTER BAG NEED TO BE REMOVED PERIODICALLY. A PRESSURE DIFFERENTIAL GAUGE SHOULD BE USED SO THAT THE BAG IS CHANGED WHEN THE DIFFERENTIAL PRESSURE REACHES OR EXCEEDS 15 PSIG.

NEVER DISASSEMBLE THE BAG FILTER WHILE THERE IS FLUID IN IT. DRAIN ALL PROCESS FLUID BEFORE REMOVING THE COVER.

TO CHANGE THE BAG: 1. CLOSE THE INLET VALVE. 2. CLOSE THE OUTLET VALVE. 3. OPEN THE DRAIN ON THE BAG FILTER . 4. SLOWLY OPEN VENT TO FULLY DRAIN THE BAG FILTER. 5. REMOVE BAG FILTER COVER. 6. REMOVE THE PVDF BAG RETAINER AND THEN THE BAG 7. INSTALL THE NEW BAG, THE PVDF BAG RETAINER AND THE COVER. 8. REPEAT STEPS 3-6 UNDER START-UP

SPECIFICATIONS

not recommended MAXIMUM WORKING PRESSURE 100 PSIG @ 70 º F MAXIMUM WORKING TEMPERATURE 280 º F MAXIMUM FLOW 100 GPM WITHOUT BAG SHIPPING WEIGHT FLT5202F 82 POUNDS SOLIDS COLLECTION CAPACITY 25 POUNDS INLET/OUTLET/DRAIN 2” Class 150 Flange VENT 5/8”-11 UNC 50 Micron FILTER BAG FLT5202 7” X 32” FB332050 SEALS VITON

Bag Filter - PVDF - 16511 OK

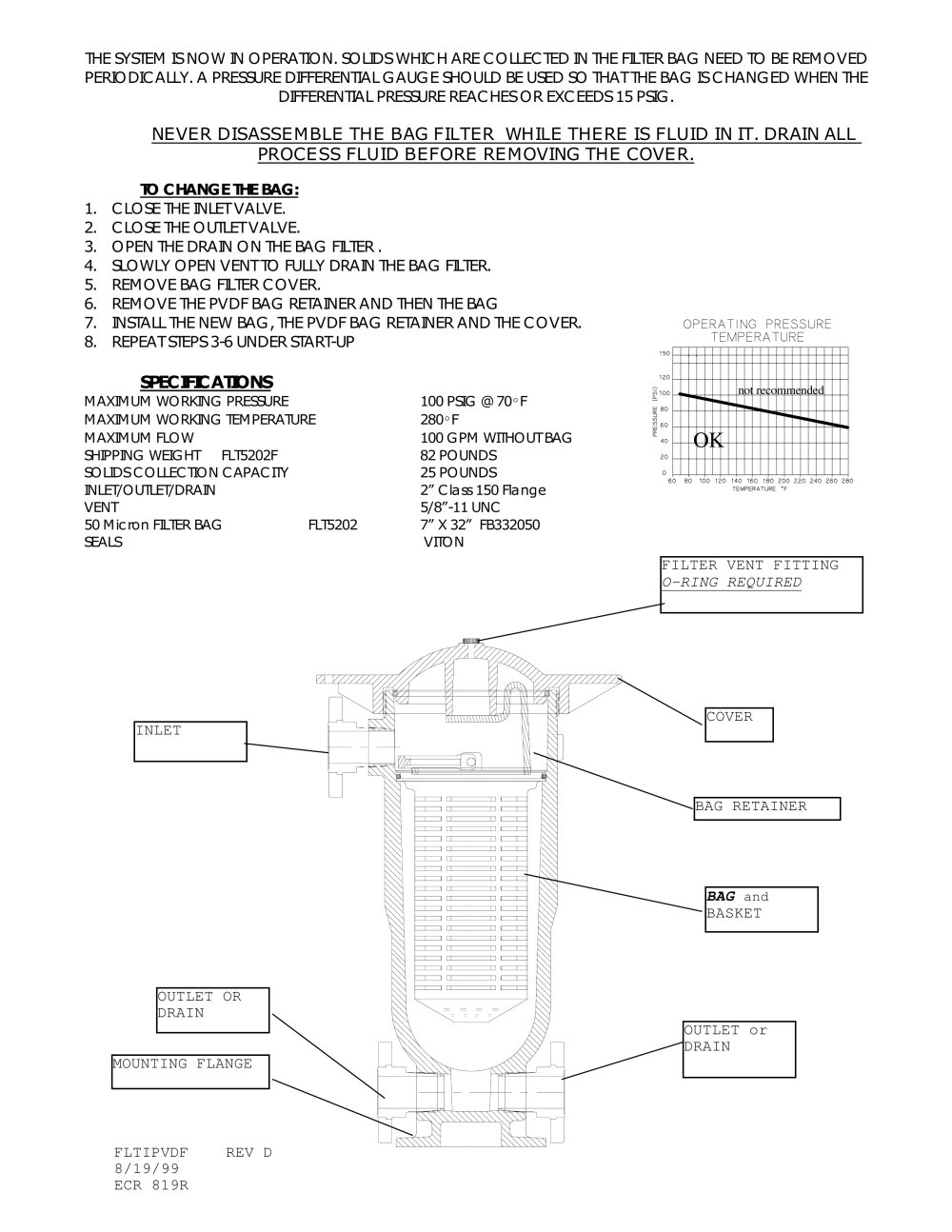

FILTER VENT FITTING O-RING REQUIRED COVER INLET BAG RETAINER BAG
and BASKET OUTLET OR DRAIN OUTLET or DRAIN MOUNTING FLANGE FLTIPVDF REV D 8/19/99 ECR 819R
