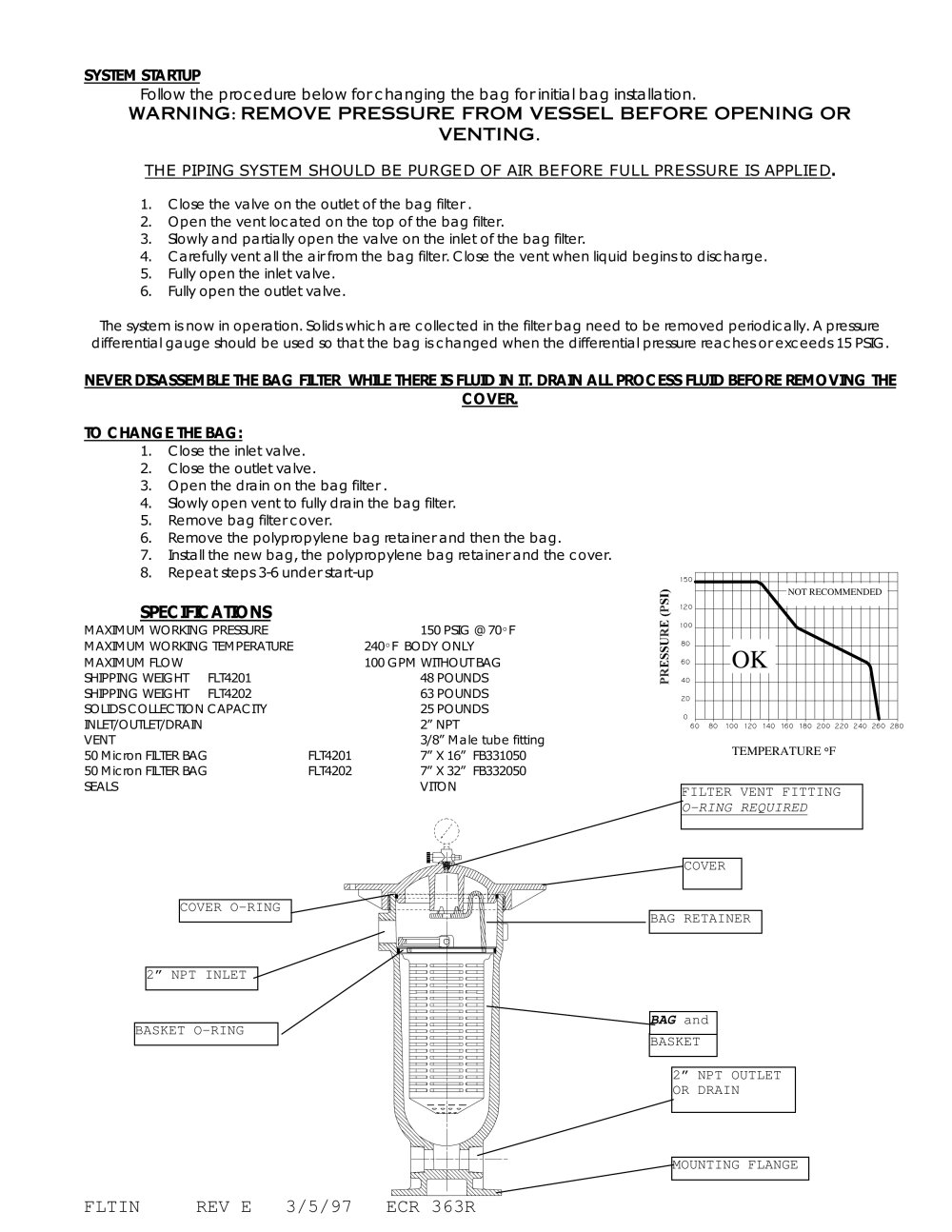

FLTIN REV E 3/5/97 ECR 363R

SYSTEM STARTUP Follow the procedure below for changing the bag for initial bag installation.

WARNING: REMOVE PRESSURE FROM VESSEL BEFORE OPENING OR VENTING.

THE PIPING SYSTEM SHOULD BE PURGED OF AIR BEFORE FULL PRESSURE IS APPLIED .

1. Close the valve on the outlet of the bag filter . 2. Open the vent located on the top of the bag filter. 3. Slowly and partially open the valve on the inlet of the bag filter. 4. Carefully vent all the air from the bag filter. Close the vent when liquid begins to discharge. 5. Fully open the inlet valve. 6. Fully open the outlet valve. The system is now in operation. Solids which are collected in the filter bag need to be removed periodically. A pressure differential gauge should be used so that the bag is changed when the differential pressure reaches or exceeds 15 PSIG.

NEVER DISASSEMBLE THE BAG FILTER WHILE THERE IS FLUID IN IT. DRAIN ALL PROCESS FLUID BEFORE REMOVING THE COVER. TO CHANGE THE BAG:

1. Close the inlet valve. 2. Close the outlet valve. 3. Open the drain on the bag filter . 4. Slowly open vent to fully drain the bag filter. 5. Remove bag filter cover. 6. Remove the polypropylene bag retainer and then the bag. 7. Install the new bag, the polypropylene bag retainer and the cover. 8. Repeat steps 3-6 under start-up
NOT RECOMMENDED

SPECIFICATIONS

MAXIMUM WORKING PRESSURE 150 PSIG @ 70 º F MAXIMUM WORKING TEMPERATURE 240 º F BODY ONLY MAXIMUM FLOW 100 GPM WITHOUT BAG SHIPPING WEIGHT FLT4201 48 POUNDS SHIPPING WEIGHT FLT4202 63 POUNDS SOLIDS COLLECTION CAPACITY 25 POUNDS INLET/OUTLET/DRAIN 2” NPT VENT 3/8” Male tube fitting 50 Micron FILTER BAG FLT4201 7” X 16” FB331050 50 Micron FILTER BAG FLT4202 7” X 32” FB332050 SEALS VITON

Bag Filter - PPL - 16511 OK

TEMPERATURE ° F FILTER VENT FITTING O-RING REQUIRED COVER COVER O-RING BAG RETAINER 2” NPT INLET BASKET O-RING BAG and BASKET 2” NPT OUTLET OR DRAIN MOUNTING FLANGE
