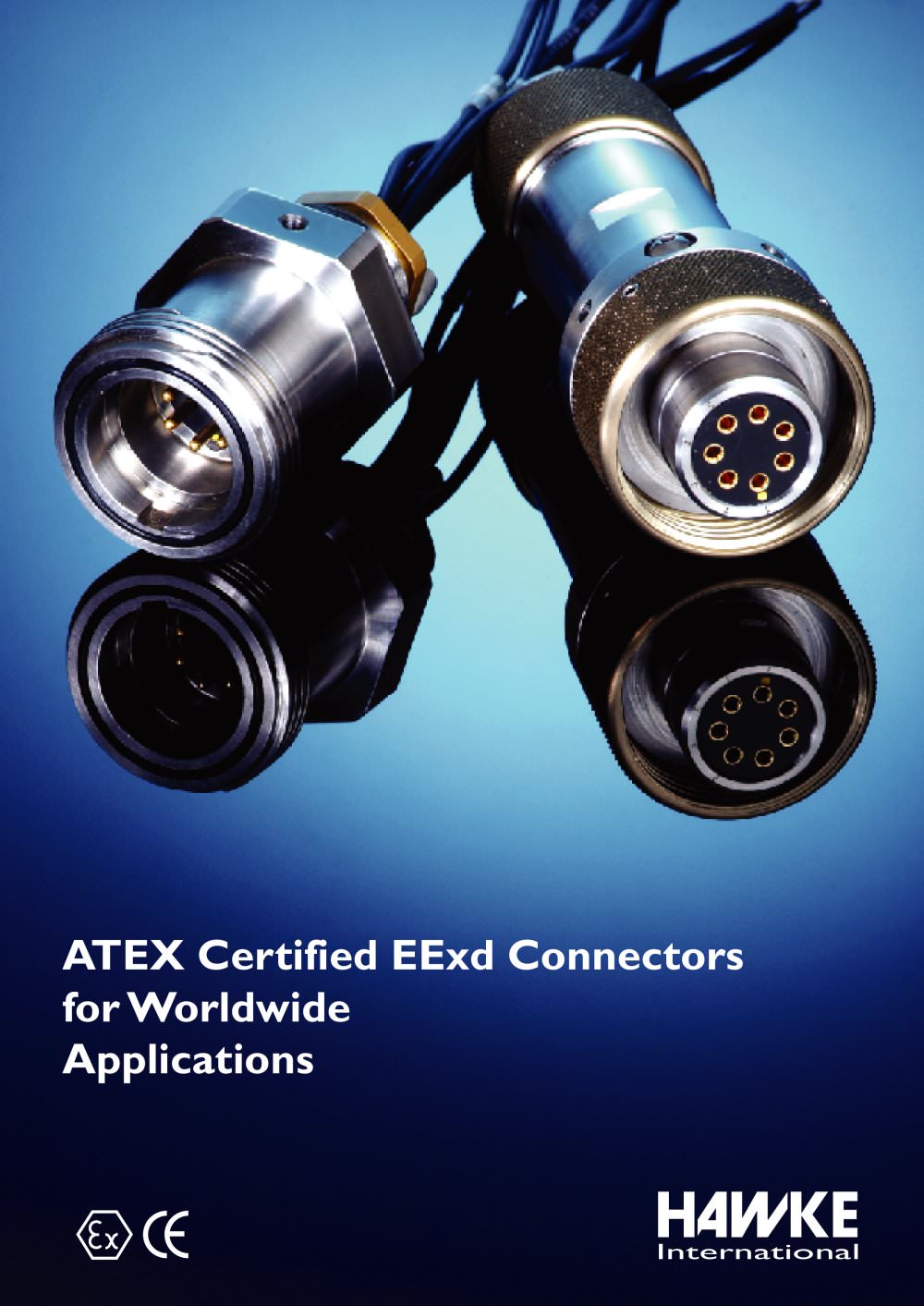

Ex Connectors

Ex Connectors
8Pages

Catalog excerpts

Electrical Insert Identification Pin and socket inserts are numbered front and back to assist wiring and avoid potential termination errors. > Earthing Facility External earthing facility > Slotted Spacer Tube Improves accessibility for soldering/crimping conductors, as the Spacer Tube is retrofitted once electrical termination is complete. Acme Thread at Mating Interface Threaded Bulkhead Wide thread pitch prevents thread binding and galling. Utilises industry standard threaded entries, not expensive spigot arrangements. Earthing Facility Internal earthing facility Internal Keyway Sleeve...

Open the catalog to page 2

Temporary but safe disconnection of power is critical in many industries. To meet this requirement Hawke International has introduced a new series of EExd Connectors that are ATEX approved, easy to use and exceptionally robust. They permit the safe and rapid service, repair and replacement of key plant, or provide quick connection to temporary equipment. Their application is beneficial in capital-intensive processes where minimum downtime is essential.The new connectors are ideal for Zone 1 and Zone 2 explosive environments commonly found in oil and gas exploration, production and process...

Open the catalog to page 3

Ex16-3 x 1.5Ex25-4 x 1.5Ex32-12 x 1.5Ex32-19 x 1.5Ex32-10 x 2.5Ex32-6 x 6Ex32-3 x 10Ex32-4 x 10Ex32-3 x 16Ex32-4 x 16Ex40-24 x 1.5Ex40-30 x 1.5Ex40-19 x 2.5Ex40-4 x 25Ex40-4 x 35 Ex50-37 x 1.5Ex50-27 x 2.5Ex50-37 x 2.5Ex63-49 x 1.5Ex63-60 x 1.5 Ex25-9 x 1.5Ex25-12 x 1.5Ex25-4 x 2.5Ex32-12 x 2.5Ex32-4 x 6Ex25-7 x 2.5 Ex25-4 x 6 > (Solder Only) Typical Pin Layouts Configuration Shell Size 16Shell Size 25Shell Size 32Shell Size 40Shell Size 50Shell Size 63 > Note: Inserts for use in bulkhead receptacles are solder termination only. Inserts for use with inline connectors are solder only for 1.5...

Open the catalog to page 4
