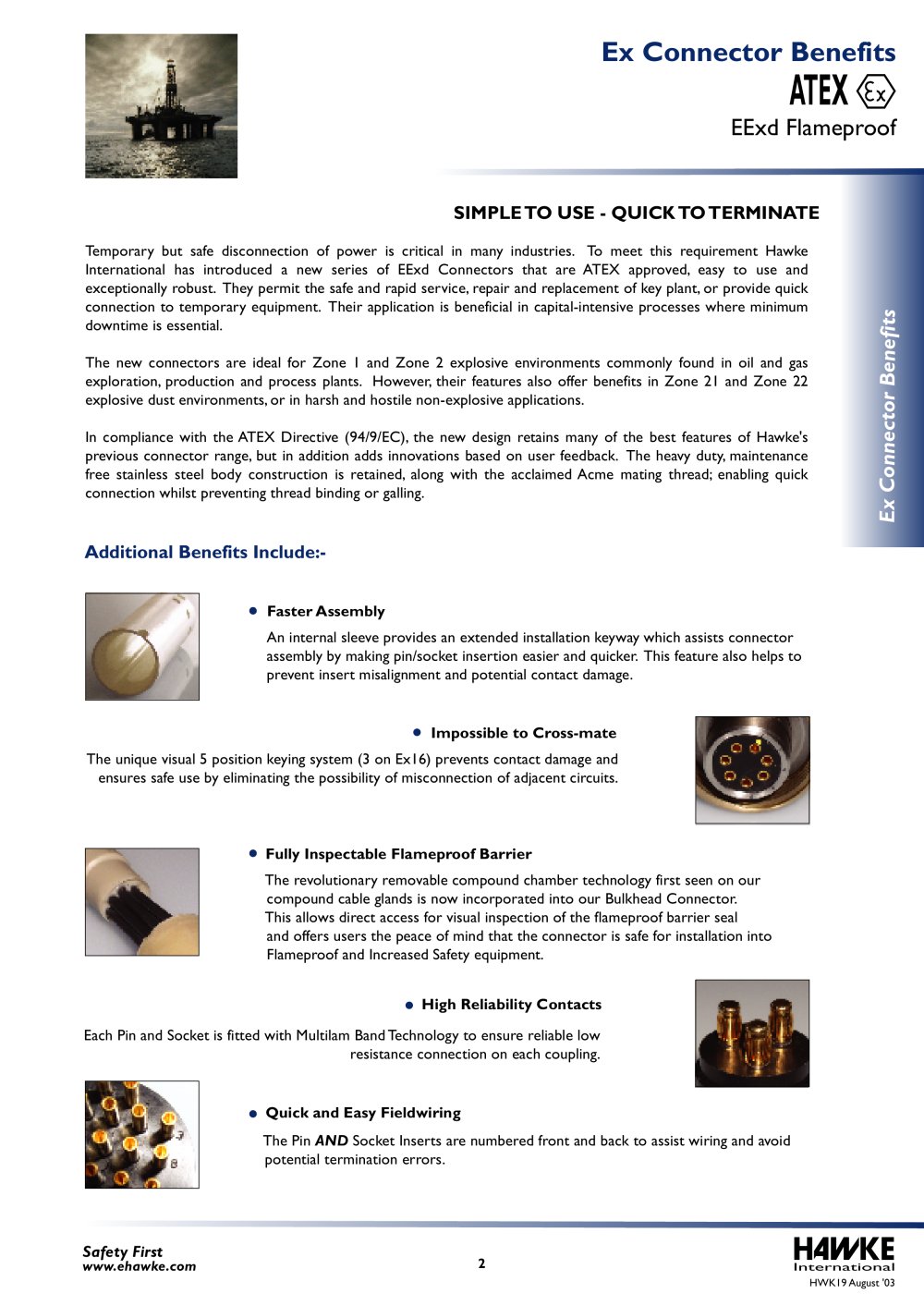

Ex Connector Benefits

EExd Flameproof

ATEX

SIMPLE TO USE - QUICK TO TERMINATE

Temporary but safe disconnection of power is critical in many industries. To meet this requirement Hawke International has introduced a new series of EExd Connectors that are ATEX approved, easy to use and exceptionally robust. They permit the safe and rapid service, repair and replacement of key plant, or provide quick connection to temporary equipment. Their application is beneficial in capital-intensive processes where minimum downtime is essential.The new connectors are ideal for Zone 1 and Zone 2 explosive environments commonly found in oil and gas exploration, production and process plants. However, their features also offer benefits in Zone 21 and Zone 22 explosive dust environments, or in harsh and hostile non-explosive applications.In compliance with the ATEX Directive (94/9/EC), the new design retains many of the best features of Hawke's previous connector range, but in addition adds innovations based on user feedback. The heavy duty, maintenance free stainless steel body construction is retained, along with the acclaimed Acme mating thread; enabling quick connection whilst preventing thread binding or galling. The revolutionary removable compound chamber technology first seen on our compound cable glands is now incorporated into our Bulkhead Connector. This allows direct access for visual inspection of the flameproof barrier industrial seal and offers users the peace of mind that the connector is safe for installation into Flameproof and Increased Safety equipment. The unique visual 5 position keying system (3 on Ex16) prevents contact damage andensures safe use by eliminating the possibility of misconnection of adjacent circuits. Each Pin and Socket is fitted with Multilam Band Technology to ensure reliable lowresistance connection on each coupling. The Pin
Ex Connector Benefits

Additional Benefits Include:-

Faster Assembly Fully Inspectable Flameproof Barrier Quick and Easy Fieldwiring Impossible to Cross-mate High Reliability Contacts AND Socket Inserts are numbered front and back to assist wiring and avoid potential termination errors. An internal sleeve provides an extended installation keyway which assists connector assembly by making pin/socket insertion easier and quicker. This feature also helps to prevent insert misalignment and potential contact damage.

Safety First
