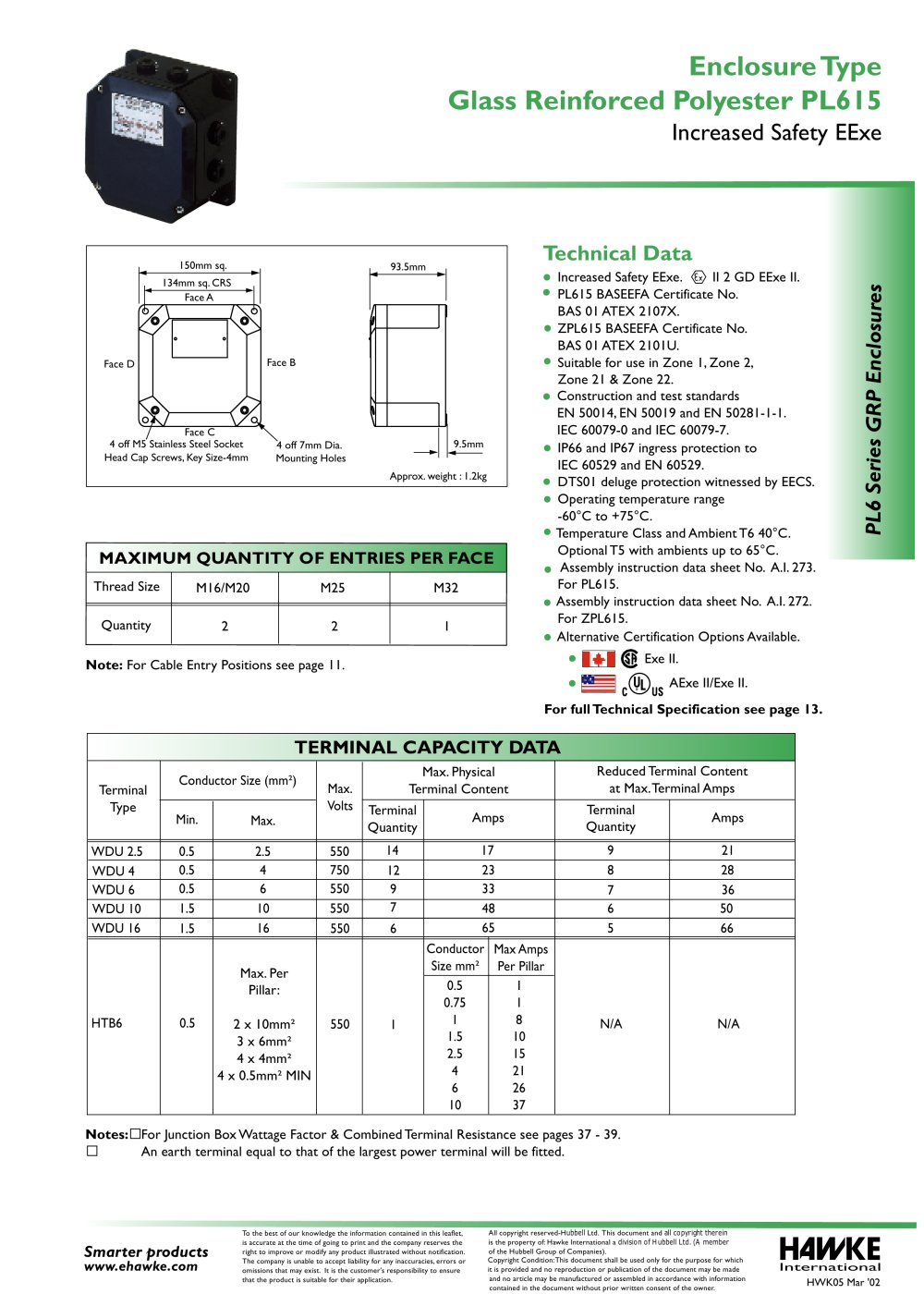

Enclosure Type Glass Reinforced Polyester PL6I5

Increased Safety EExe

Technical Data

• Increased Safety EExe. <g> II 2 GD EExe II.

• PL6I5 BASEEFA Certificate No. BASOI ATEX2I07X.

• ZPL615 BASEEFA Certificate No. BASOI ATEX2I0IU.

• Suitable for use in Zone I, Zone 2, Zone 21 & Zone 22.

• Construction and test standards

EN 50014, EN 50019 and EN 50281 -1 -1. IEC 60079-0 and IEC 60079-7.

• IP66 and IP67 ingress protection to IEC 60529 and EN 60529.

• DTS0I deluge protection witnessed by EECS.

• Operating temperature range -60°C to +75°C.

• Temperature Class and Ambient T6 40°C. Optional T5 with ambients up to 65°C.

• Assembly instruction data sheet No. A.I. 273. ForPL6l5.

• Assembly instruction data sheet No. A.I. 272. For ZPL615.

• Alternative Certification Options Available.

• El @ ^ II.

• _c(g)_us AExe ll/Exe II.

For full Technical Specification see page 13.

I50mrr

93.5n

I34rt

.CPS

Face A

—№

Face B

Face D

y>—(X

/ Face C

4 off M5 Stainless Steel Socket Head Cap Screws, Key Size-4mm

9.5mm

4 off 7mm Dia. Mounting Holes

Approx. weight : 1.2kg

«O -J O.


MAXIMUM QUANTITY OF ENTRIES PER FACE
Thread Size	M16/M20	M25	M32
Quantity	2	2	1

Note: For Cable Entry Positions see page I I.


TERMINAL CAPACITY DATA
Terminal	Conductor Size (mm²)		Max.	Max. Physical Terminal Content			Reduced Terminal Content at Max.Terminal Amps
Type	Min.	Max.	Volts	Terminal Quantity	Amps		Terminal Quantity	Amps
WDU 2.5	0.5	2.5	550	14	17		9	21
WDU4	0.5	4	750	12	23		8	28
WDU 6	0.5	6	550	9	33		7	36
WDU 10	1.5	10	550	7	48		6	50
WDU 16	1.5	16	550	6	65		5	66
		Max. Per Pillar:			Conductor Size mm²	Max Amps Per Pillar
		Max. Per Pillar:			0.5 0.75	1 1
HTB6	0.5	2 X 10mm²	550	1	1 1.5 2.5	8 10 15	N/A	N/A
		3 X 6mm² 4 X 4mm²			1 1.5 2.5	8 10 15
		4 X 0.5mm² MIN			4 6 10	21 26 37

Notes: DFor Junction Box Wattage Factor & Combined Terminal Resistance see pages 37 - 39. □ An earth terminal equal to that of the largest power terminal will be fitted.

All copyright reserved-HUbbell Ltd. This document and all copyricht therein is the property of: Hawke International a dvigonof HUtbell Ltd (Amerrfoer of the Hubbell Group of Companies).

Copyright ConditionrThis document shall be used only for the purpose for which it is provided and no reproduction or publication of the document may be made and no article may be manufactured or assembled in accordance with information contained in the document without prior written consent of the owner.

To the best of our knowledge the information contained in this leaflet, is accurate at the time of going to print and the company reserves the right to improve or modify any product illustrated without notification. The company is unable to accept liability for any inaccuracies, errors or omissions that may exist. It is the customer's responsibility to ensure that the product is suitable for their application.
